Snapper YT2452F (2691047-00) - 52" Yard Tractor, 24 HP, 4WD, Hydro Drive RMO, YT400 Series 52" Mower Deck - Clutch Group Ricambi

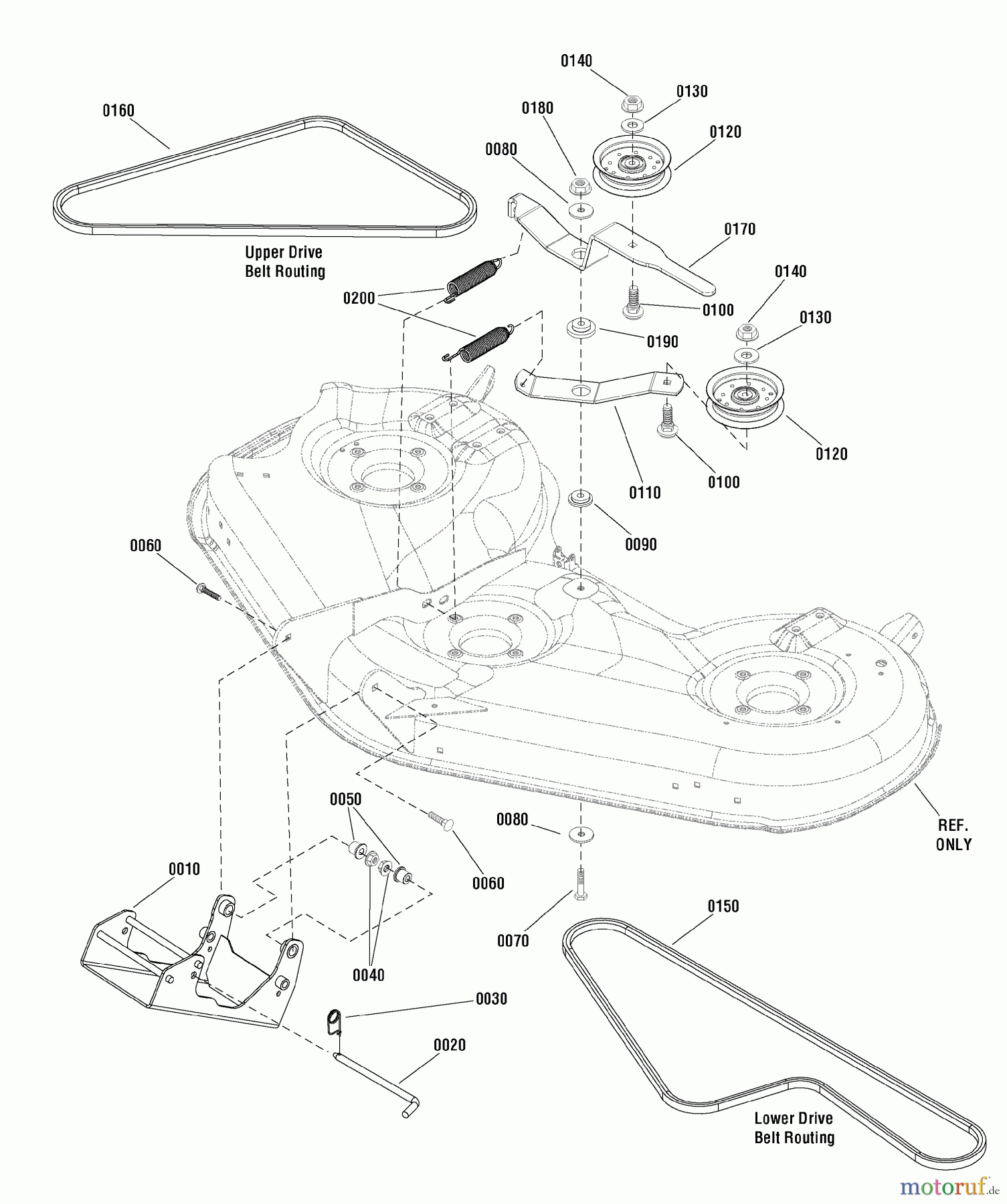

52" Mower Deck - Clutch Group YT2452F (2691047-00) - Snapper 52" Yard Tractor, 24 HP, 4WD, Hydro Drive RMO, YT400 Series
| Posizione | Articolo numero | Descrizione | |
| 0010 | BS1737046ASM | HITCH ASMY-50,54" | |
| 0020 | BS1731414SM | STREBE-SPERRE 500DIA 9" | |
| 0030 | BS703852 | PIN, 5/16 X 0.375 | |
| 0040 | BS703158 | MUTTER | |
| 0050 | BS1736018SM | PIVOT | |
| 0060 | BS7091945YP | BOLZEN, FAHRGESTELL | |
| 0070 | BS704289 | ||
| 0080 | BS703591 | WASHER, .406X1.5X.12 | |
| 0090 | BS1714255SM | DISTANZSTUCK-0.406ID 1.50 O | |
| 0100 | BS703879 | BOLT, SQ, 3/8-16X1.75 | |
| 0110 | BS1735321AYP | ARM, IDLER, LOWER | |
| 0120 | BS1736540YP | LAUFROLLE | |
| 0130 | BS7091528SM | FW, .375X.875X.083 YZ | |
| 0140 | BS703333 | MUTTER, 3/8-16 | |
| 0150 | BS1665450SM | V-BELT HA 087.20 | |
| 0160 | BS1734130SM | ANTRIEBSRIEMEN 44" ZT | |
| 0170 | BS1739585AYP | ARM, IDLER, UPPER | |
| 0180 | BS703893 | NUT, CNTR LCK, 3/8-16 | |
| 0190 | BS1715772SM | ZUGFEDER 0.987ODX | |
| 0200 | BS1739594YP | SPACER- 0.406 ID 1.75 | |
