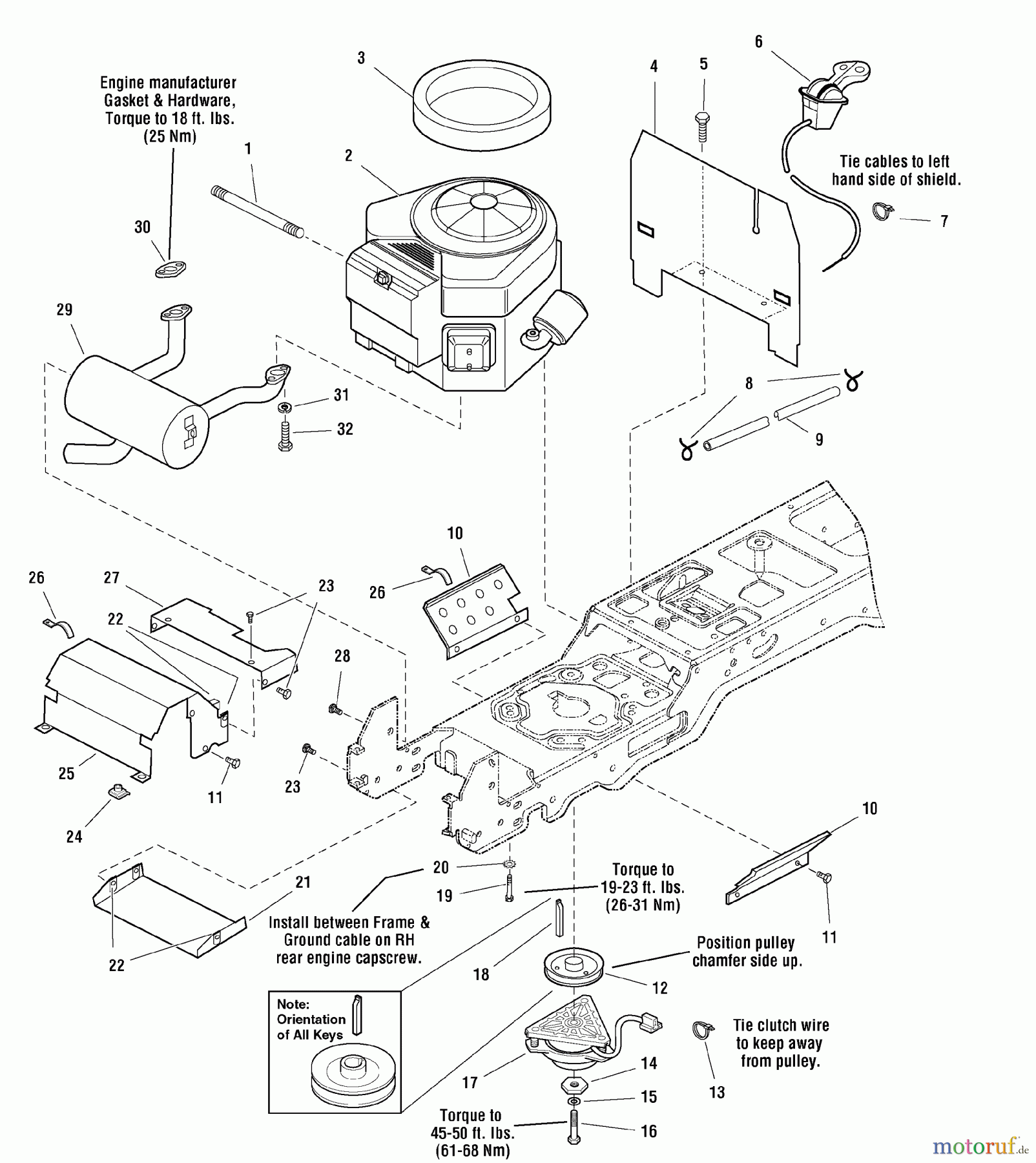

ENGINE GROUP-20HP B&S VANG YT2050 (2690109) - Snapper 50" Yard Tractor, 20 HP, Hydro Drive

Snapper Rasen- und Gartentraktoren YT2050 (2690109) - Snapper 50
PosizioneArticolo numeroDescrizione
1 BS1723165SMOLSCHLAUCH
2 BSEingangswelle UE 600
3 BS1722949SMSEAL-FOAM 0.75 X 1.50
4 BS1722388ASMBULKHEAD-BLACK
5 BS1925003
6 BS7072517SMTHROTTLE/CHOKE ASSY,
7 BS1701011SMTIE, SELF LOCKING .18
8 BS2860112SMSCHLAUCHKLEMME 0.500DIA H
9 BS1718678
10 BS1722392ASMABSCHIERMUNG, SEITL. 18GA-BLA
11 BS1927428SMSCREW, HEX WSHR
12 BS1722288SMPULLEY & HUB ASMY-VIP
13 BS2832747SMZUGELEMENT SELBSSCHL. 09W
14 BS1708264SMUNTERLAGSCHEIBE
15 BS704007LCKWSHR,7/16,SPLIT RE
16 BS1960649SMKOPFSCHRAUBE-SECHSK. HD 7/
17 BS1687296SMELECTRIC CLUTCH REPL
18 BS1720463SMKEIL 250X2.5
19 BS2830598SMSECHSK.SCHRAUBE SCHEIBE HD TAP
20 BS2820427SMZAHNSCHEIBE
21 BS1722414ASMSHIELD-MUFFLER-BLACK
22 BS1960368SMNUT-SPEED 1/4-20 LUG
23 BS1960295SMSCREW-HEX WZ LOCK FL
24 BS1935255SMNUT, SPEED, 5/16-18 L
25 BS1722389ASMDUCT-MUFFLER TOP-BLAC
26 BS703176CLIP, KABEL
27 BS1722390ASMSCHALLDAMPFERKANAL AUSG. SCHWA
28 BS1924856SMSCREW - HEX WASHER HD
29 BS1722625SMMUFFLER, B&S ,VANGUAR
30 BSEingangswelle UE 600
31 BS1916964SMSICHERUNGSSCHEIBE, FEDER
32 BSEingangswelle UE 600
