Snapper YT2040 (2690114) - 40" Yard Tractor, 20 HP, Hydro Drive, Rear Discharge Engine Group - 20HP B&S Intek Ricambi

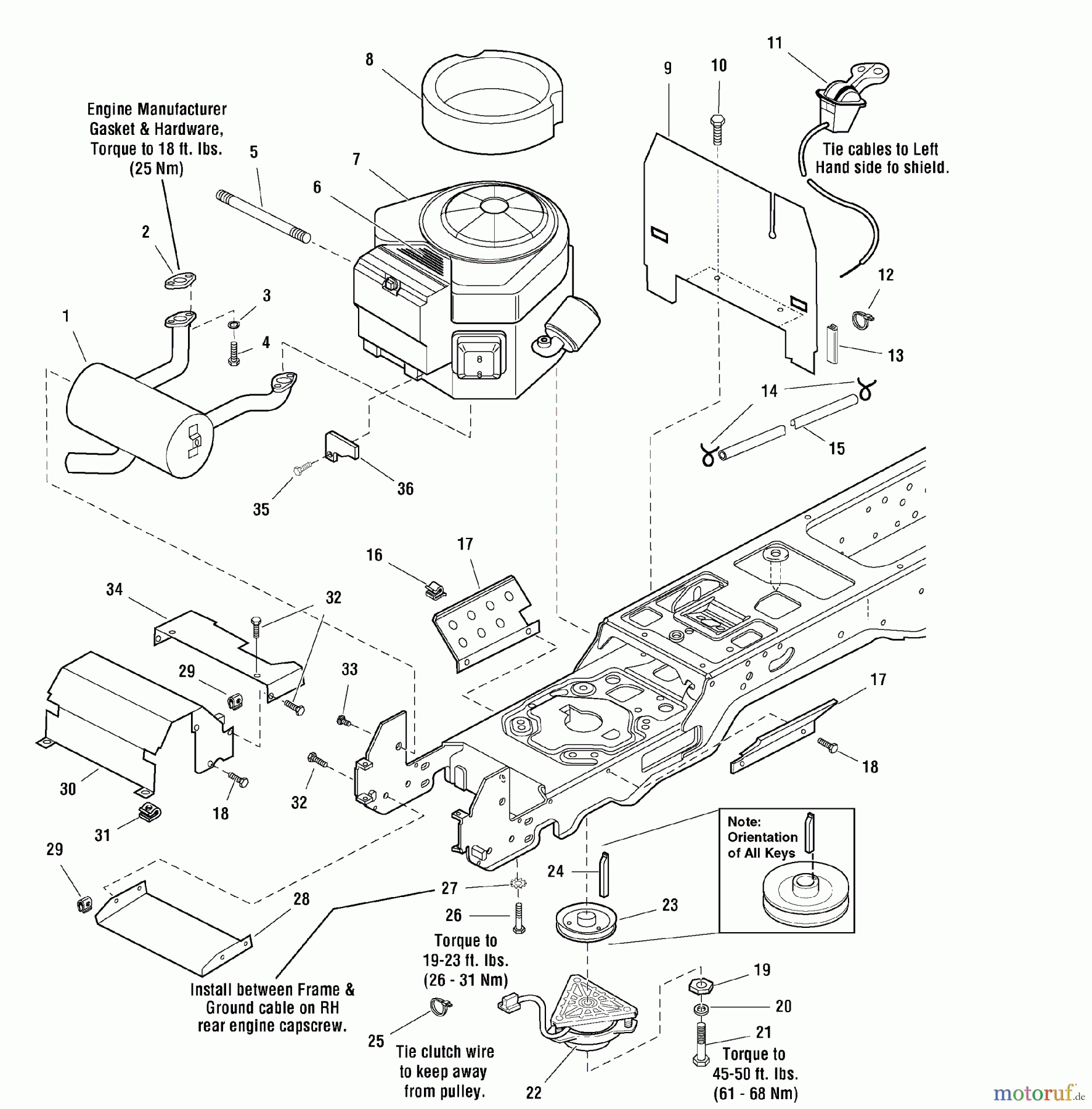

Engine Group - 20HP B&S Intek YT2040 (2690114) - Snapper 40" Yard Tractor, 20 HP, Hydro Drive, Rear Discharge

Posizione	Articolo numero	Descrizione
1	BS1721706SM	MUFFLER
2	BS	Eingangswelle UE 600
3	BS703116	LCKWSHR
4	BS2960660YP	CAPSCREW, HX FLNG WHI
5	BS1723165SM	OLSCHLAUCH
6	BS	Eingangswelle UE 600
7	BS	Eingangswelle UE 600
8	BS1719847SM	SEAL-FOAM 0.75 X
9	BS1722388ASM	BULKHEAD-BLACK
10	BS1925003
11	BS7072517SM	THROTTLE/CHOKE ASSY,
12	BS1701011SM	TIE, SELF LOCKING .18
13	BS1723894SM	MOLDING-FLEXIBLE PVC
14	BS2860112SM	SCHLAUCHKLEMME 0.500DIA H
15	BS1718678
16	BS703176	CLIP, KABEL
17	BS1722392ASM	ABSCHIERMUNG, SEITL. 18GA-BLA
18	BS1927428SM	SCREW, HEX WSHR
19	BS1708264SM	UNTERLAGSCHEIBE
20	BS704007	LCKWSHR,7/16,SPLIT RE
21	BS1960648SM	KOPFSCHRAUBE HD 7/16-
22	BS1687746YP	KIT, ELECTRIC CLUTCH
23	BS1722288SM	PULLEY & HUB ASMY-VIP
24	BS1720463SM	KEIL 250X2.5
25	BS2832747SM	ZUGELEMENT SELBSSCHL. 09W
26	BS2830598SM	SECHSK.SCHRAUBE SCHEIBE HD TAP
27	BS2820427SM	ZAHNSCHEIBE
28	BS1722414ASM	SHIELD-MUFFLER-BLACK
29	BS1960368SM	NUT-SPEED 1/4-20 LUG
30	BS1722389ASM	DUCT-MUFFLER TOP-BLAC
31	BS1935255SM	NUT, SPEED, 5/16-18 L
32	BS1960295SM	SCREW-HEX WZ LOCK FL
33	BS1924856SM	SCREW - HEX WASHER HD
34	BS1722390ASM	SCHALLDAMPFERKANAL AUSG. SCHWA
35	BS1678419
36	BS1726464
