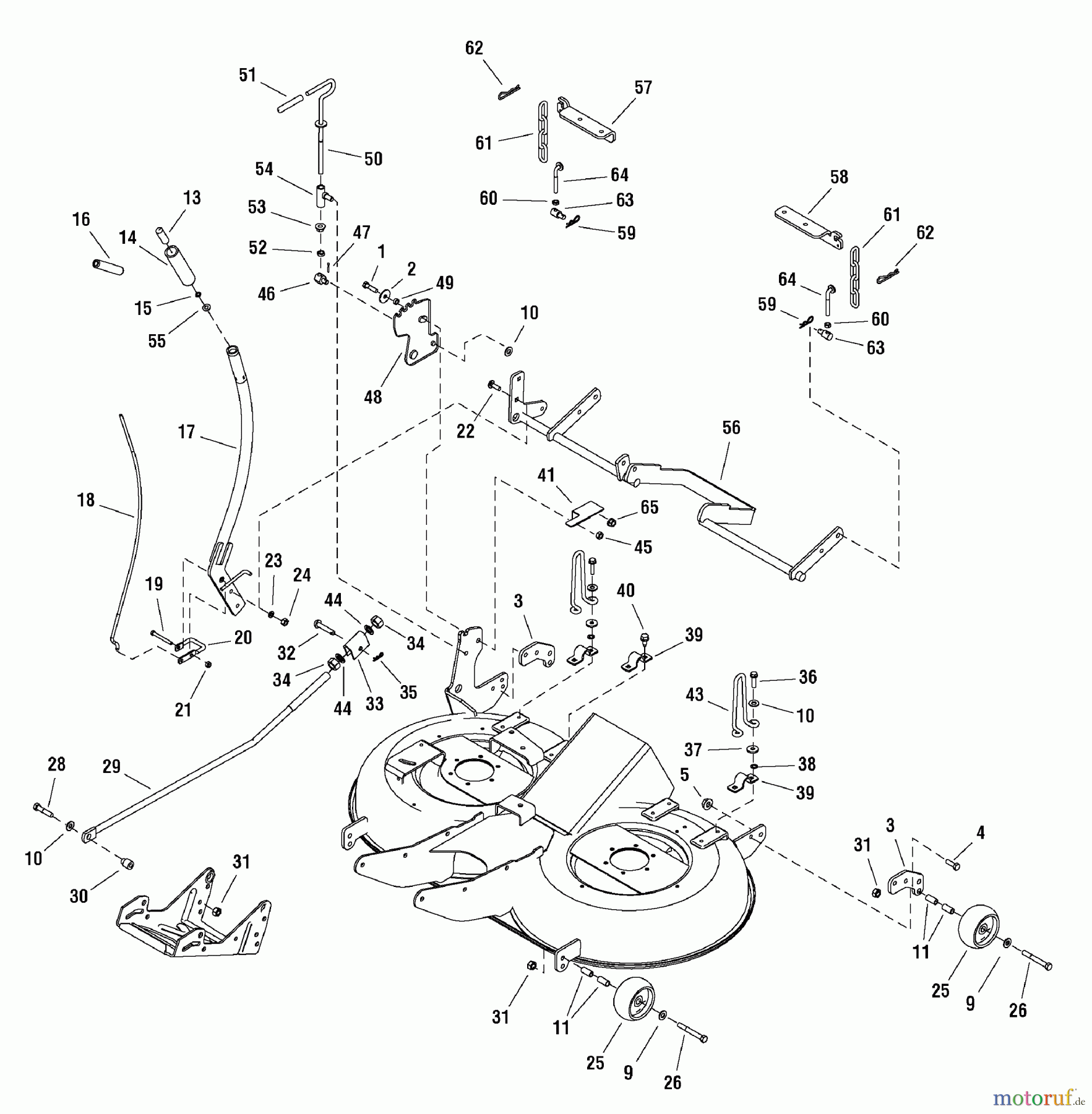

40" Mower Deck - Height Adjustment & Roller Bar RD18S40 (2690624) - Snapper 40" Lawn Tractor, 18 HP, Hydro Drive, Rear Discharge, RMO, ACS, LT300 Series

Snapper Rasen- und Gartentraktoren RD18S40 (2690624) - Snapper 40
PosizioneArticolo numeroDescrizione
1 BS1921977SMCAPSCREW - HEX HD
2 BS1960044SMSCHEIBE-0.312(0.33IDX
3 BS1733899ASMBRACKET-FLAT MOUNTING
4 BS703585CAPSCREW, 5/16-18X1
5 BS703115MUTTER
9 BS703853WASHER, 0.516IDX1OD
10 BS703878WASHER, FLAT
11 BS703158MUTTER
13 BS1723124SMBUTTON,RED NYLON FOR
14 BS1713995SMGRIP-BLACK SOFT FOR
15 BS1960674SMNUT-PUSH PAL .250 DIA
16 BS1723321SMSPRING-COMP 0.715ODX
17 BS1732751ASMHANDLE ASMY-LIFT CURV
18 BS1732754SMROD-.250DIA 22.16 LG
19 BS1921159SMCAPSCREW-HEX HD 1/4-
20 BS1720599SMLATCH-.312WIRE U 1
21 Snapper MUTTER, 1/4-20, NYLOCKBS703232MUTTER, 1/4-20, NYLOCK
22 BS703800BOLT, CRRG, 5/16-18X1
23 BS703116LCKWSHR
24 BS7091511SMMUTTER, 5/16C GR5 YZ
25 BS1714760SMRAD AUFNAHME
26 BS2108765SMRADBOLZEN 3/8-16X2.7
28 BS1921971SMKOPFSCHRAUBE, SECHSK. HD 3/8
29 BS1722661SMROD-.625DIA 30.44 L
30 BS1706644SMSPACER,3/8X3/4X15/16
31 BS2860681SMMUTTER SELBSTSICH.
32 BS2118053SMSICHERUNGSSTIFT 3
33 BS1706645ASMLAGERZAPFEN-2.00WD-SCHWARZ
34 BS7090537YPHN, 5/8C GR.A ZP
35 BS1722460SMPIN-QUICK .080WIRE 1.
36 BS703167SCHRAUBE
37 BS703298U-SCHEIBE, GR5, 5/16
38 BS703297RETAINER, GR5, 5/16
39 BS1665374SMSTRAP-1.00WD 3.06LG .
40 BS703228SCHRAUBE, 5/16-18 X .75
41 BS1720931ASMBRACKET-HEIGHT OF CUT
43 BS1719929SMSTOP-UP .312WIRE
44 BS1960703SMWASHER-0.625(0.66IDX1
45 BS1919438SM
46 BS2108512SMPIVOT-.750HEX & .375
47 BS703312PIN, COTTER, 3/32X.75
48 BS1723409ASMBRACKET-ADJUSTING 7G-
49 BS1666697SMSPACER
50 BS1720704SMROD & WASHER ASMY-AD
51 BS5023198SMABDECKUNG
52 BS1917421SMMUTTER
53 BS1960601SMNUT-HEX FLANGE 3/8-1
54 BS2108241
55 BS703302U-SCHEIBE, 5/16
56 BS1735095ASMROCKER SHAFT & ARM
57 BS1727102ASMHANGER-RH SNAPPER MWR
58 BS1727103ASMHANGER-LH SNAPPER MWR
59 BS703300PIN, 3/32 X 1.6
60 BS1920161SMNUT-HEX JAM 5/16-18
61 BS1708088ASMKETTENVERBIND. 06.08 SCHWARZ
62 BS1960033SMSICHERUNGSSPLINT .125
63 BS1731382SMTRAGZAPFEN- .37+.625OD
64 BS1737124YPROD-HEIGHT ADJ
65 BS703893NUT, CNTR LCK, 3/8-16
