Spareparts

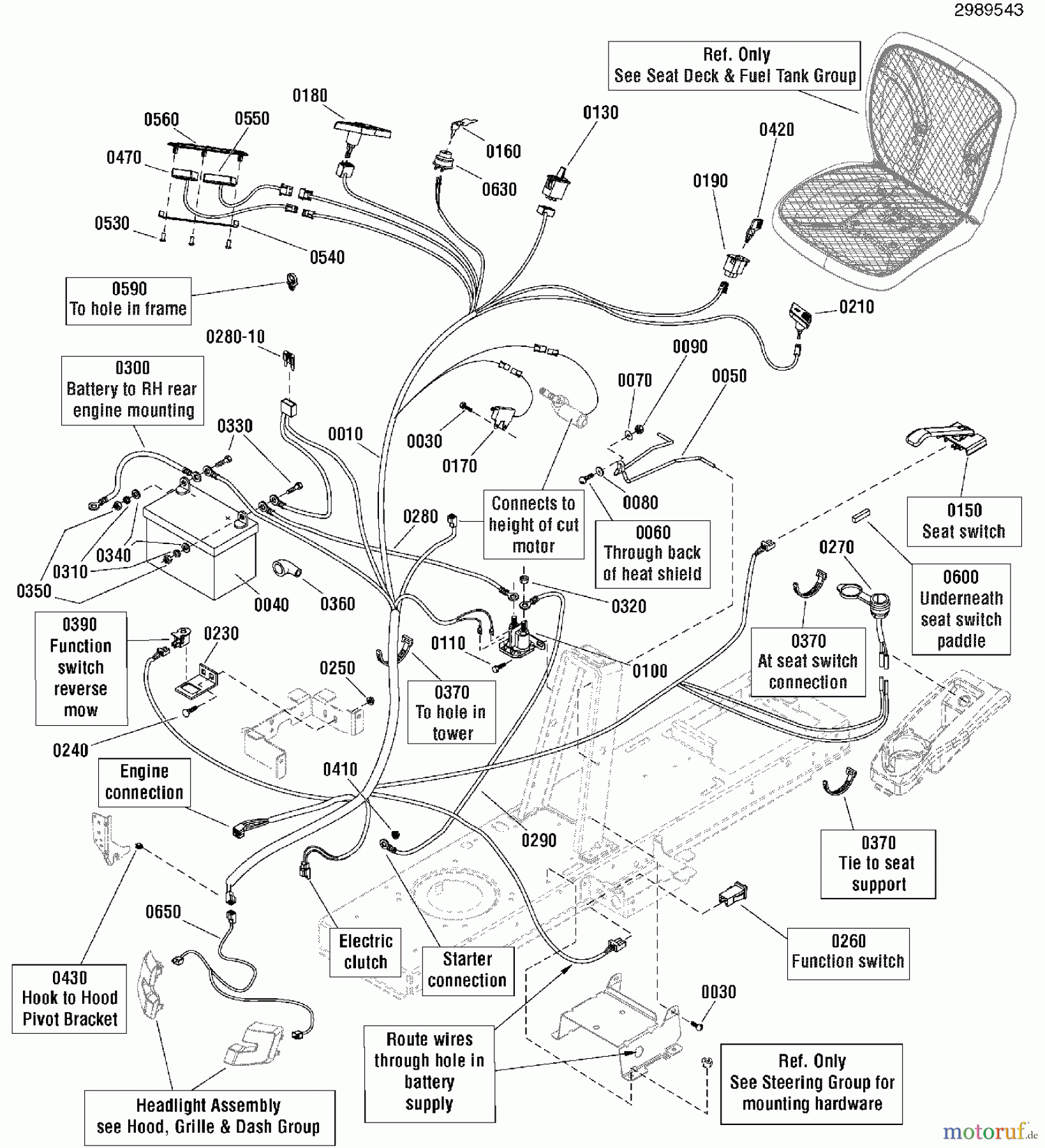

Electrical Group LT2146 (2690978/130.280110) - Snapper 46" 21 HP Lawn Tractor LT200 Series

Posizione	Articolo numero	Descrizione
0010	BS1751939YP	HARNESS, WIRING, NXT
0030	BS703949	SCHRAUBE, 5/16-18.625
0040	BS1722841
0050	BS1730007SM	BATTERIEHALTERUNG
0060	BS1931318SM	BOLZEN
0070	BS703229	U-SCHEIBE, 1/4
0080	BS703826	BOLT, PUSHNUT 1/4
0090	BS703232	MUTTER, 1/4-20, NYLOCK
0100	BS1728963SM	MAGNETABSCH.VENTIL
0110	BS1925003
0130	BS1738381YP	SCHALTER, SCHNITTHOHE
0150	BS1738015YP	SITZ, SCHALTER
0160	BS1750464YP	KEY, IGN, BLISTER PK
0170	BS1738724YP	SENSOR
0180	BS1738982YP	SCHALTER, PTO
0190	BS1726556SM
0210	BS1738983YP	LICHTSCHALTER
0230	BS1728026ASM	SUPPORT-RMO SWITCH RE
0240	BS703185	RHSSNB
0250	BS703409	MUTTER, 5/16-18, GR5
0260	BS7022886YP	SWITCH, DP NO/NC SNAP
0270	BS7073090SM	STROM DOSE 12
0280	BS1716549SM	KABEL-# 6 X 10.00LG
0280-10	BS	Eingangswelle UE 600
0290	BS1721830SM	KABEL, #6X25
0300	BS1713163SM	KABEL-# 6 X 26.0
0310	BS704133	LOCKWASHER, SPLIT,1/4
0320	BS2860750SM	MUTTER 5/16-24
0330	BS703925	CAPSCREW, 1/4-20X.75
0340	BS703332	U-SCHEIBE, 1/4
0350	BS703127	MUTTER
0360	BS1677296SM	SCHUTZHULLE BATTERIE
0370	BS1701011SM	TIE, SELF LOCKING .18
0390	BS1732004SM	DRUCKSCHALTER
0410	BS703233	MUTTER, 1/4-20, GR5
0420	BS1726557SM
0430	BS2172434SM	KABELCLIP DIA .390
0470	BS1738985YP	ANZEIGE , ELEKT. SCHNITTHOH.VE
0530	BS1739329YP	SCHRAUBE, 5MM X 12MM
0540	BS1739369AYP	HALTER, BEDIENTEIL
0550	BS1750212YP	SERVICEANZEIGE.
0560	BS1739307YP	BLENDE, INSTRUMENTENTAFEL
0590	BS1730268SM	SCHLAUCHKLEMME SCHW. KUNSTST.
0600	BS1750296YP	SCHUTZHULLE
0630	BS1737959YP	SWITCH, KEY
0650	BS1751941YP	HARNESS, HEADLIGHT
