Snapper LT2042 (2691143-00) - 42" SPX Lawn Tractor 20 HP, LT9000 Series Electrical Group Ricambi

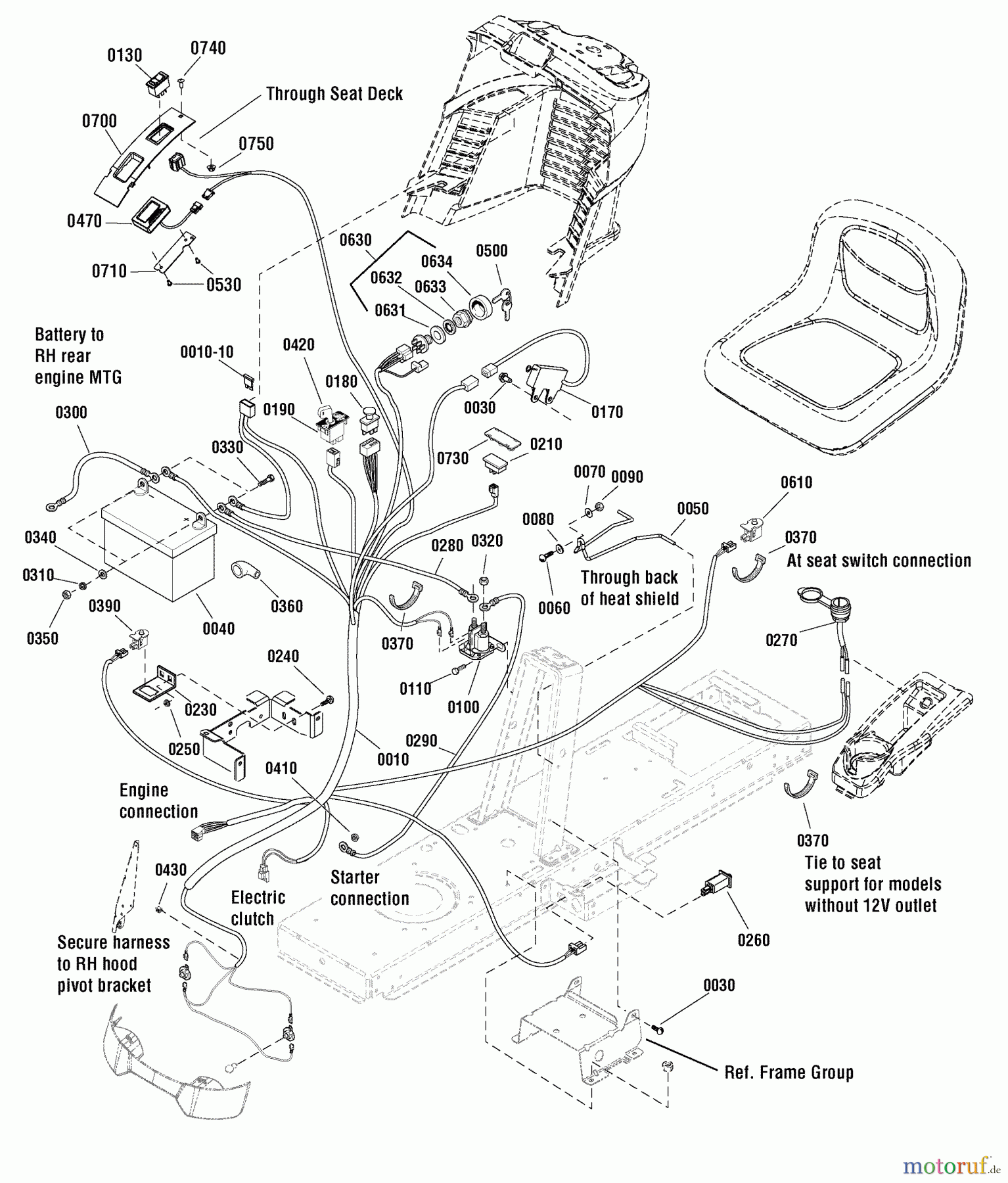

Electrical Group LT2042 (2691143-00) - Snapper 42" SPX Lawn Tractor 20 HP, LT9000 Series

Snapper Rasen- und Gartentraktoren LT2042 (2691143-00) - Snapper 42
PosizioneArticolo numeroDescrizione
0010 BS1753847YPHARNESS, WIRING
0010-10 BS1731957SMSICHERUNG-KABELBAUM R
0030 BS703949SCHRAUBE, 5/16-18.625
0040 BSEingangswelle UE 600
0050 BS1730007SMBATTERIEHALTERUNG
0060 BS1931318SMBOLZEN
0070 BS1960353SMABZIEHER-SCHEIBE
0080 BS703826BOLT, PUSHNUT 1/4
0090 BS1920397SMNUT - HEX LOCK
0100 BS1728963SMMAGNETABSCH.VENTIL
0110 BS1925003SMSCREW-HEX WSHR HD TAP
0130 BS1734141SMKIPPSCHALTER
0170 BS1738724YPSENSOR
0180 BS1722887SMSWITCH-PTO PUSH
0190 BS1726556SM
0210 BS1716951SMSCHALTER-SCHEINWERFER
0230 BS1728026SMAUFNAHME-RMO SCHALTER 10
0240 BS703185RHSSNB
0250 Snapper MUTTER, 5/16-18, GR5BS703409MUTTER, 5/16-18, GR5
0260 Snapper SWITCH, DP NO/NC SNAPBS7022886YPSWITCH, DP NO/NC SNAP
0270 BS7023354YPSWITCH, SEAT
0280 BS1752685YPCABLE, 8GA, RED 10"
0290 BS1721830SMKABEL, #6X25
0300 BS1713163SMKABEL-# 6 X 26.0
0310 BS704133LOCKWASHER, SPLIT,1/4
0320 BS2860750SMMUTTER 5/16-24
0330 BS703925CAPSCREW, 1/4-20X.75
0340 BS703332U-SCHEIBE, 1/4
0350 BS703127MUTTER
0360 BS1677296SMSCHUTZHULLE BATTERIE
0370 BS1701011SMTIE, SELF LOCKING .18
0390 BS1732004SMDRUCKSCHALTER
0410 BS1960294SMNUT - HEX FLANGE
0420 BS1726557SM
0430 BS2172434SMKABELCLIP DIA .390
0470 BS1738985YPANZEIGE , ELEKT. SCHNITTHOH.VE
0500 BS1737837YPZUNDSCHLUSSEL
0530 BS1739329YPSCHRAUBE, 5MM X 12MM
0610 BS1732005SM
0630 BS1737853YPZUNDSCHALTER
0631 BS1734141SMKIPPSCHALTER
0632 BS1729993SMANSCHLU? STUNDENZ. SCHWARZ
0633 BS1722887SMSWITCH-PTO PUSH
0634 BS1726556SM
0700 BS1753708YPPOD, INSERT, R.H.
0710 BS1753757BMYPBRACKET, INDICATOR
0730 BS1722611SMSTOPFEN SCHWARZ
0740 BS7091696YPTHMS, 1/4C X5/8 YZ
0750 BS1930641SM
