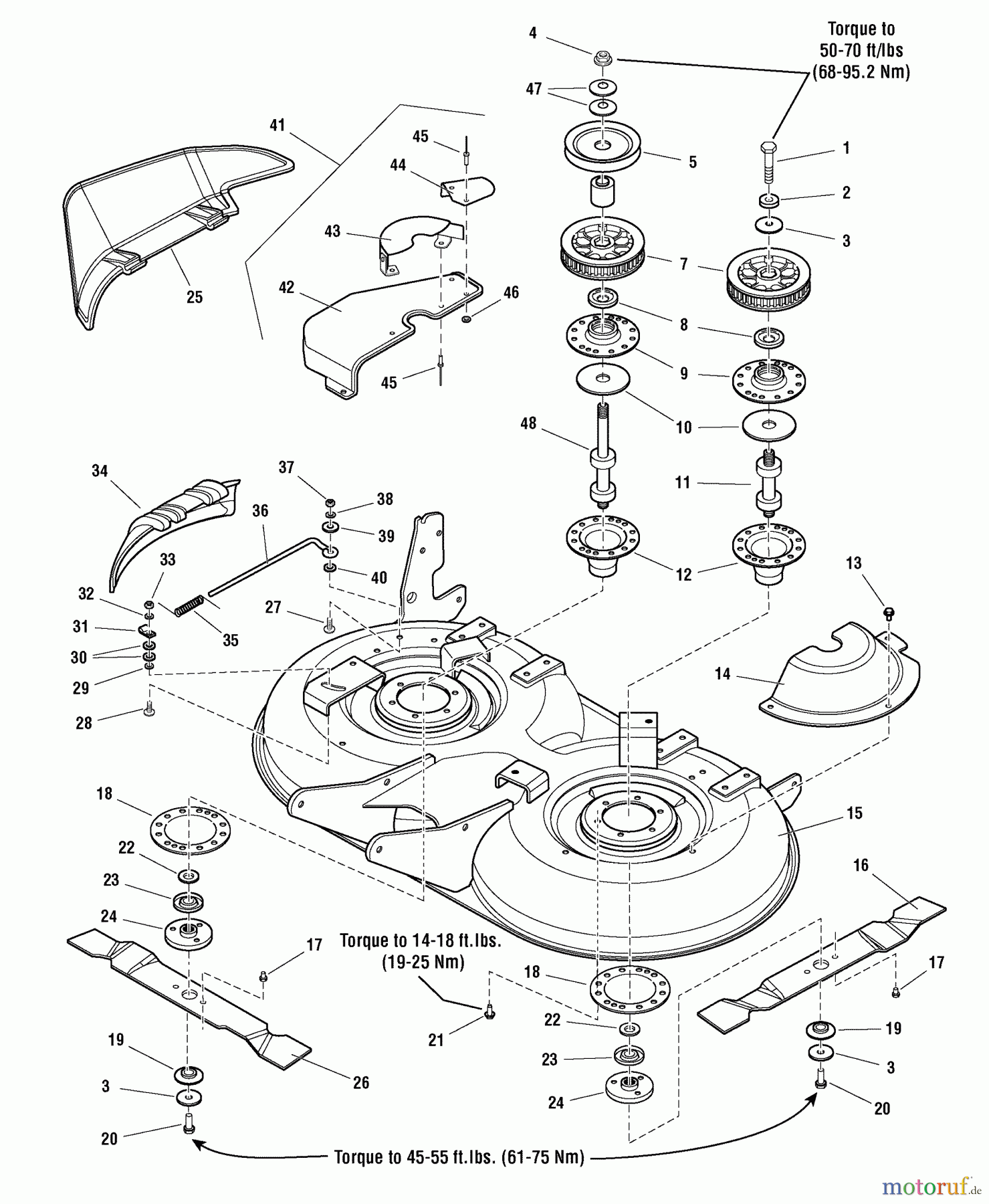

Snapper LT1840 (1694808) - 40" Lawn Tractor, 18 HP, Hydro Drive, RMO, LT300 Series 40" Mower Deck - Housing, Arbors & Blades Ricambi

40" Mower Deck - Housing, Arbors & Blades LT1840 (1694808) - Snapper 40" Lawn Tractor, 18 HP, Hydro Drive, RMO, LT300 Series

Snapper Rasen- und Gartentraktoren LT1840 (1694808) - Snapper 40
PosizioneArticolo numeroDescrizione
1 BS1930584SMCAPSCREW-HEX HD 7/16-
2 BS1933263SMSCHEIBE - 0.438(0.451IDX1
3 BS1656916SMWASHER, SPRING 0.475I
4 BS1714419SMBUNDMUTTER 9/16-1
5 BS1713091SMPULLEY-05.00 OD 1.000
6 BS1719870SMHUB-.755IDX1.5ODX1.76
7 Snapper SPROCKET & FLANGE ASMBS1732590SMSPROCKET & FLANGE ASM
8 BS1657969SMLAGERSCHILD, MAHER
9 BS1655729ASMSPINDELGEHAUSE OBEN - B
10 BS1707335SMFORMDICHTUNG POLY
11 BS1722396SMARBOR SHAFT & BEARING
12 BS1703273ASMGEHAUSE & BEF. KOMPL.
13 BS703228SCHRAUBE, 5/16-18 X .75
14 BS1724601SMCOVER-ARBOR LH BLACK
15 BS1687175SM
16 BS1719624ASMBLADE-MOWER 20.38 .1
17 Snapper PIN-BLADE .270+.375ODBS1722258SMPIN-BLADE .270+.375OD
18 BS1677274ASMADAPTER-ARBOR 4.38DIA
19 Snapper WASHER-SPLINE .6134BABS1722257SMWASHER-SPLINE .6134BA
20 BS2827120SMHUTSCHRAUBE SECHSK. HD 7/16-
21 BS1960373SMSCHRAUBE - HEX WASHER HD
22 BS1700230SMAUSGLEICHSCHEIBE .75 0.7
23 BS1700229A
24 Snapper MESSERADAPTERBS1655777SMMESSERADAPTER
25 BS1723453SMDEFLECTOR-DISCH BL PL
26 BS1719623ASMBLADE-MOWER 20.38 .1
27 BS703800BOLT, CRRG, 5/16-18X1
28 BS1931318SMBOLZEN
29 BS703826BOLT, PUSHNUT 1/4
30 BS1960353SMABZIEHER-SCHEIBE
31 BS1704873SMKABELKLEMME 312DIA
32 BS1916964SMSICHERUNGSSCHEIBE, FEDER
33 BS703127MUTTER
34 BS1719597SMDOOR-MULCHING BLACK P
35 BS1723938SMFEDER, TORISION
36 BS1719617SMROD-.312DIA 8.93 LG
37 BS7091511SMMUTTER, 5/16C GR5 YZ
38 BS703116LCKWSHR
39 BS703298U-SCHEIBE, GR5, 5/16
40 BS703297RETAINER, GR5, 5/16
41 BS1721155SMCOVER & GUARD ASMY-RH
42 BS1724600SMCOVER-ARBOR RH BLACK
43 BS1721259ASM
44 BS1721132ASMGUARD-EXTENSION 14GA
45 BS1675044SMPOPNIET 188 .429LA
46 BS1960096SMU-SCHEIBE 0.187(0.19IDXO
47 BS1713675SMUNTERLAGSCHEIBE-BLLVLL 0.56IDX
48 BS1726825SMARBOR SHAFT & BEARING
