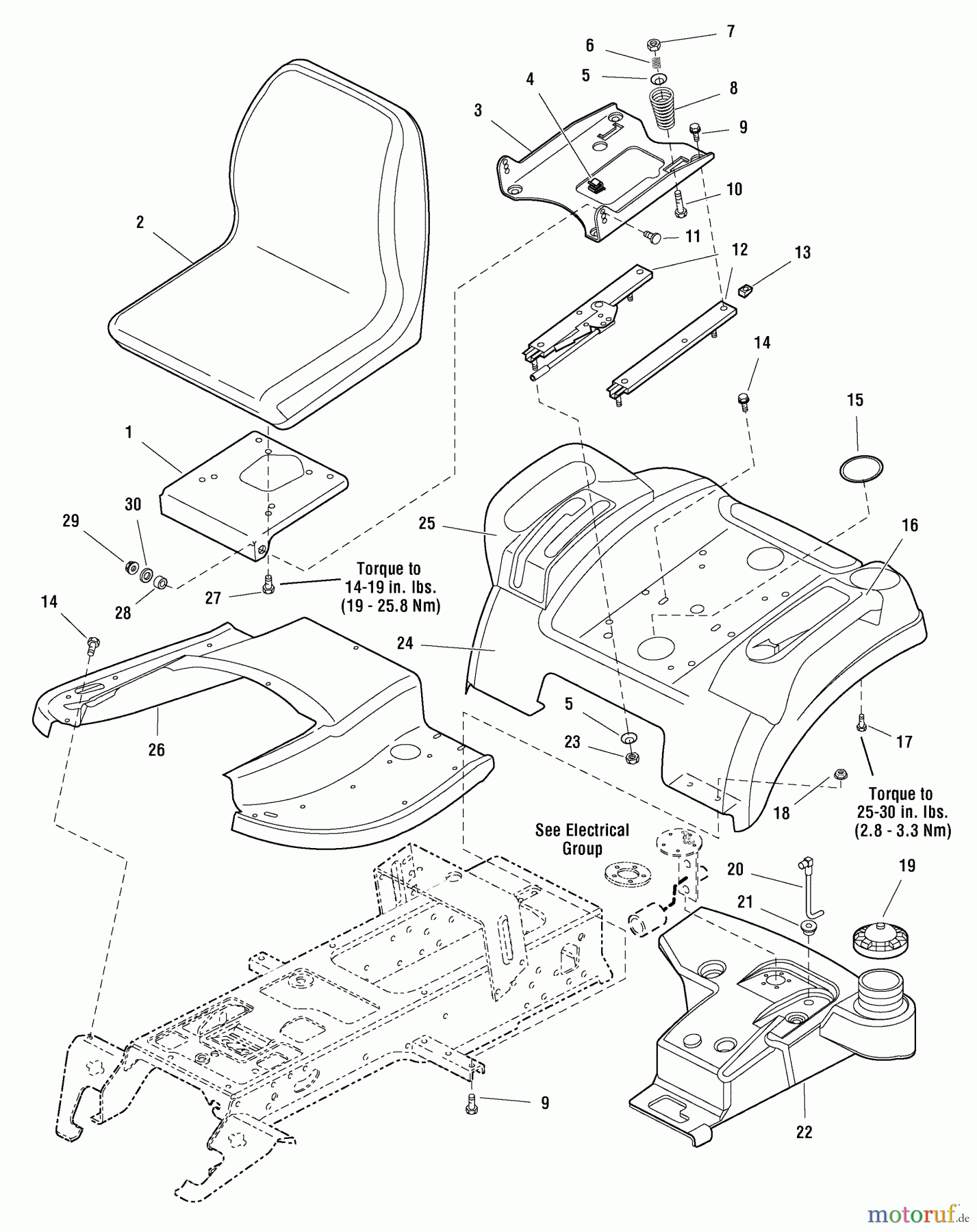

Snapper LT1644 (2690117) - 44" Lawn Tractor, 16 HP, Hydro Drive Seat & Seat Deck Group Ricambi

Seat & Seat Deck Group LT1644 (2690117) - Snapper 44" Lawn Tractor, 16 HP, Hydro Drive

Snapper Rasen- und Gartentraktoren LT1644 (2690117) - Snapper 44
PosizioneArticolo numeroDescrizione
1 BS1722129ASMBRACKET-SEAT VIP-BLAC
2 BS1687202SMSEAT & SWITCH KIT-15"
3 BS1722128ASMSUPPORT-SEAT VIP-BLAC
4 BS2172434SMKABELCLIP DIA .390
5 BS1709256SMFEDERSCHEIBE 0.328I
6 BS1714263SMFEDER 0.40
7 BS1919438SM
8 BS1717051SMFEDER 947
9 BS9357MASCHRAUBE, 5/16-18X .75WD
10 BS1931339SMBOLZEN 5/16
11 BS703815BOLT, RD SQ 3/8-16X1
12 BS1722356SMSLIDE-SEAT (2 PC
13 BS1935255SMNUT, SPEED, 5/16-18 L
14 BS703949SCHRAUBE, 5/16-18.625
15 BS1722309SMSTOPFEN 3.00 DI
16 BS1722109
17 BS2860664SMSCHRAUBE
18 Snapper MUTTER, 5/16-18, GR5BS703409MUTTER, 5/16-18, GR5
19 BS1715917SMCAP-FUEL TANK BL
20 BS1726902SMTUBE & ELBOW ASMY-FUE
21 BS1654930SMVENTILDECKEL
22 BS1722432SMKRAFTSTOFFTANK SCHWARZ
23 BS1960636SMNUT-HEX KEPS 5/16-18
24 BS1722106DSMDECK-SEAT 16GA-RED
25 BS1722108SMPOD-RH BLACK POL
26 BS1729322D
27 BS1960667SMSECHSK.SCHRAUBE SELBSTS.
28 BS1663752SMDISTANZHULSE-0.39OIFX0.624O
29 BS703893NUT, CNTR LCK, 3/8-16
30 BS703878WASHER, FLAT
