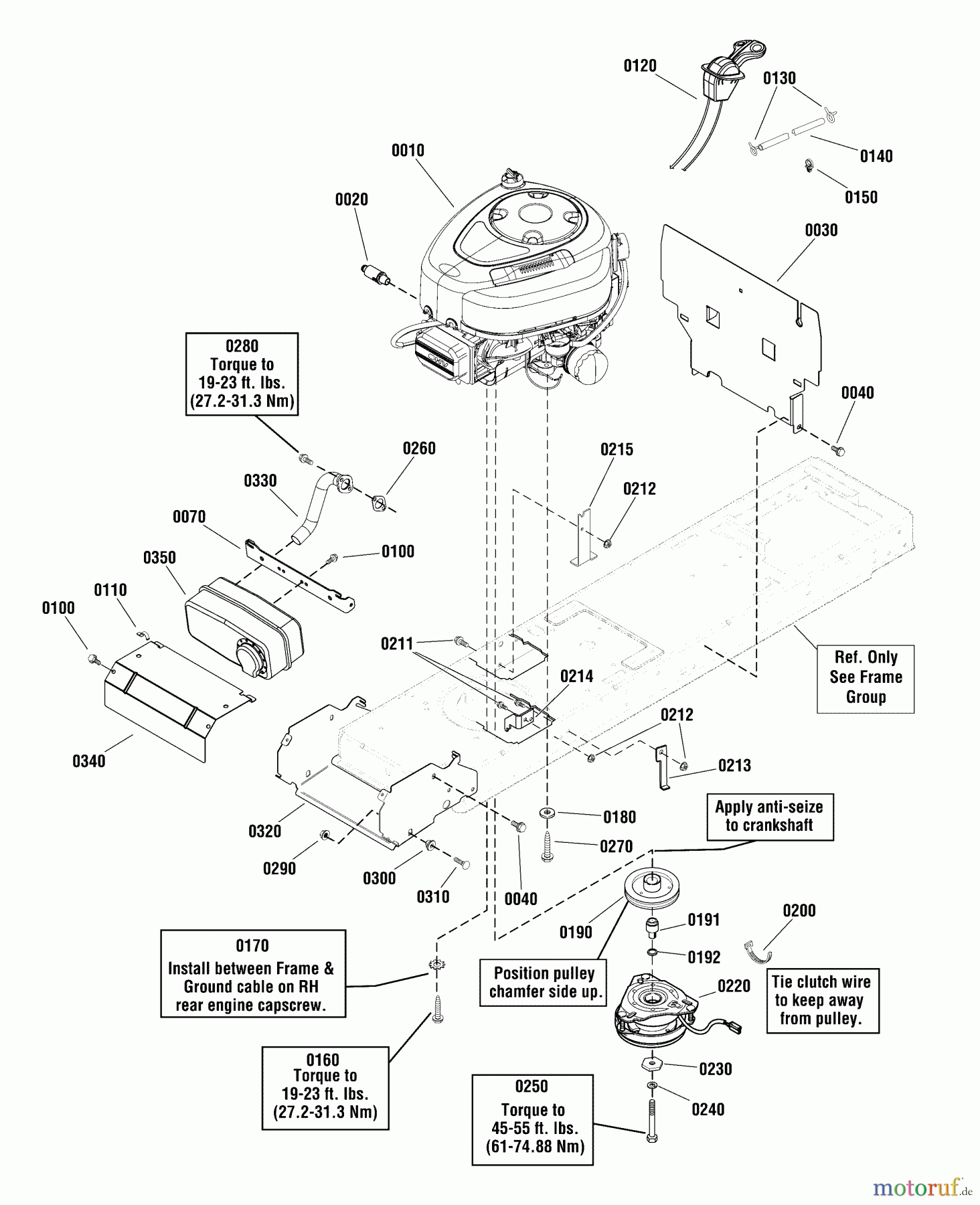

Snapper ESPX17542 (2691217-00) - 42" SPX Engine Group - 17.5 Gross HP Briggs & Stratton Ricambi

Engine Group - 17.5 Gross HP Briggs & Stratton ESPX17542 (2691217-00) - Snapper 42" SPX

Snapper Rasen- und Gartentraktoren ESPX17542 (2691217-00) - Snapper 42
PosizioneArticolo numeroDescrizione
0010 BSEingangswelle UE 600
0020 BS1750159YPVALVE, DRAIN
0030 BS1738380AYPMOTORHITZESCHUTZ
0040 BS703949SCHRAUBE, 5/16-18.625
0070 BS1728265BMYP
0100 BS704130SCREW, HEX, 1/4-20X.5
0110 BS703176CLIP, KABEL
0120 BS1738794YPGESCHWINDIGKEITSKONTROLLE
0130 BS93053B
0140 BS1734993SMKRAFTST.SCHLAUCH 25X50X55
0150 BS1730268SMSCHLAUCHKLEMME SCHW. KUNSTST.
0160 BS2827187SMSECHSK.SCHRAUBE
0170 BS703864WASHER, EXT, 3/8
0180 BS703878WASHER, FLAT
0190 BS1732576SMROLLE & NABE KOMPL.
0191 BS885679YPSPACER, CLUTCH
0192 BS885810YPSPACER, LOWER
0200 BS703586TIE, SELF LOCKING
0211 BS704287
0212 Snapper MUTTER, 5/16-18, GR5BS703409MUTTER, 5/16-18, GR5
0213 BS1757405BMYP
0214 BS885535AYPBRKT, ELEC CLUTCH
0215 BS1757404BMYP
0220 BS1736105SMCLUTCH, ELECTRIC
0230 BS1708264SMUNTERLAGSCHEIBE
0240 BS704007LCKWSHR,7/16,SPLIT RE
0250 BS7102075YPSECHSKANNTSCHR.
0260 BS1731214SMGASKET-EXHAUST B&S RE
0270 BS2828635SMSCHRAUBE
0280 BS690341SCHRAUBE
0290 Snapper MUTTER, 5/16-18, GR5BS703409MUTTER, 5/16-18, GR5
0300 BS1728086SMHAUBENSTIFT METALL
0310 BS703800BOLT, CRRG, 5/16-18X1
0320 BS1738265AYPACHSAUFNAHME
0330 BS1728959SMABGASROHR 1.1250D
0340 BS1738380BMYP
0350 BS1727993SMSCHALLD. B&S SINGLE RE.
