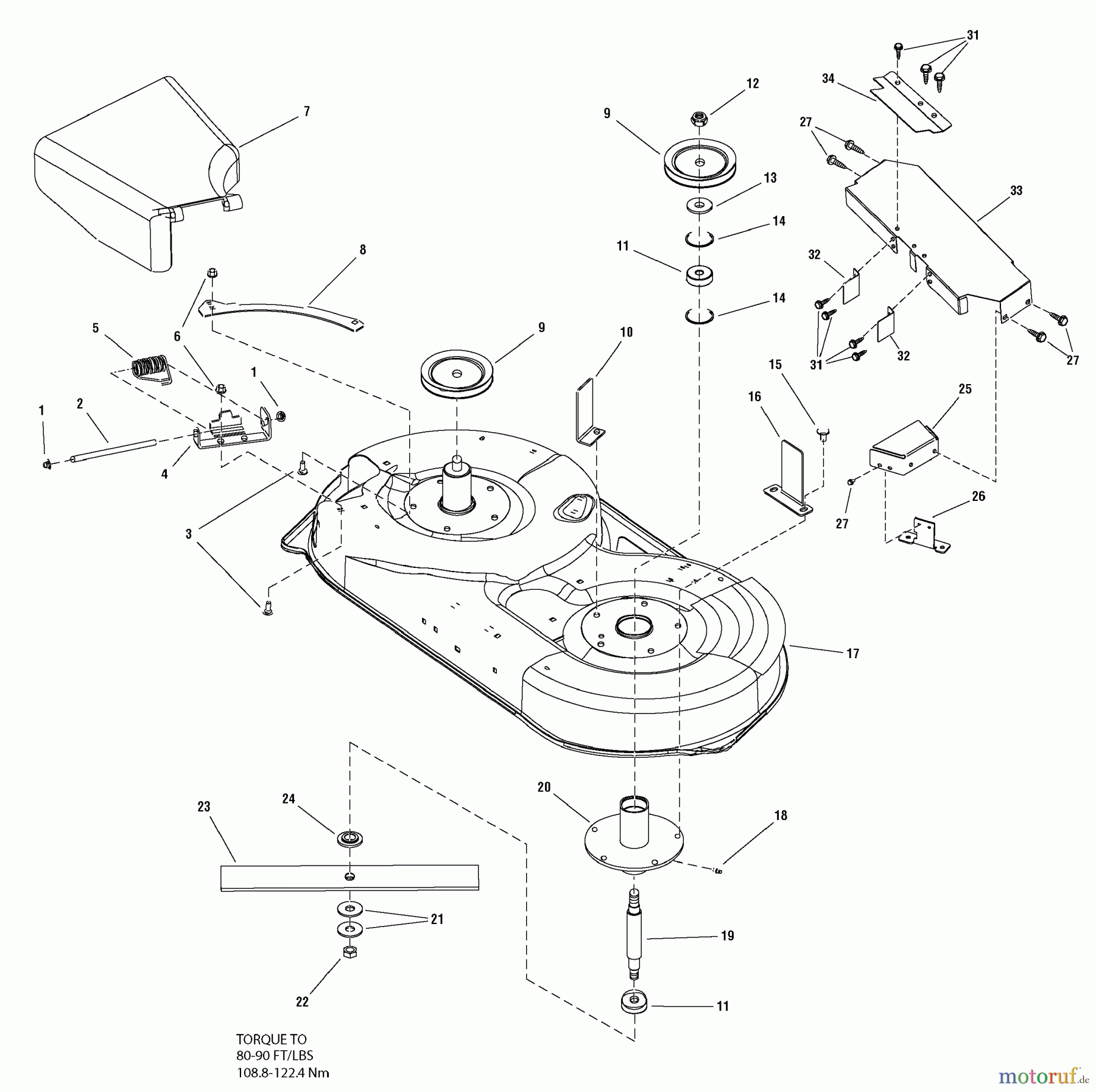

38" Mower Deck - Housing, Arbors & Blades Group ELT18538 (2690796) - Snapper

Snapper Rasen- und Gartentraktoren ELT18538 (2690796) - Snapper 38
PosizioneArticolo numeroDescrizione
1 BS703948DRUCKMUTTER, 3/8
2 BS094957ZMASTANGE -DEFLECTOR
3 BS703185RHSSNB
4 BS094956E701MABRACKET - HINGE
5 BS0166X4MATORSIONSFEDER
6 Snapper MUTTER, 5/16-18, GR5BS703409MUTTER, 5/16-18, GR5
7 BS094707MADEFLEKTOR ASSY - SCHACHT
8 BS7300834BMYPPLATTE
9 BS1732952SMPULLEY-05.25 OD 0.630
10 BS1732555ASMUPSTOP-38" SNAPPER RE
11 BS2108202SMBEARING, BALL
12 BS703904MUTTER, 5/8-18
13 BS7072440SMDISTANZRING
14 BS7012491SMHALTERING EXT
15 BS1923683SMSCHRAUBE
16 BS1732555A
17 BS1687206SMMOWER HSG KIT-38" SNA
18 BS1704314SMSCHMIERNIPPEL 250 DR
19 BS7072537SMSPINDELACHSE 38 DE
20 BS1731372BMYPSPINDEL GEHAUSE
21 BS7024467SMTELLERFEDER
22 BS7091633SMSECHSKANTMUTTER
23 BS1731914ASMBLADE, MOWER
24 BS1731917SMWASHER-SPINDLE BLADE
25 BS1736077AYPCOVER, MOWER SPINDLE,
26 BS1733889ASMSUPPORT-COVER 10GA EX
27 BS1925003
31 BS1675044SMPOPNIET 188 .429LA
32 BS1736024AYPGUARD, BELT, RH
33 BS1736021AYPGUARD, PULLEY
34 BS1736022AYPGUARD, BELT
