Snapper BH140H33BBV (80878) - 33" Lawn Tractor, 14 HP, Hydro Drive, Series B Frame, Clutch, Brake & Steering Ricambi

Frame, Clutch, Brake & Steering BH140H33BBV (80878) - Snapper 33" Lawn Tractor, 14 HP, Hydro Drive, Series B

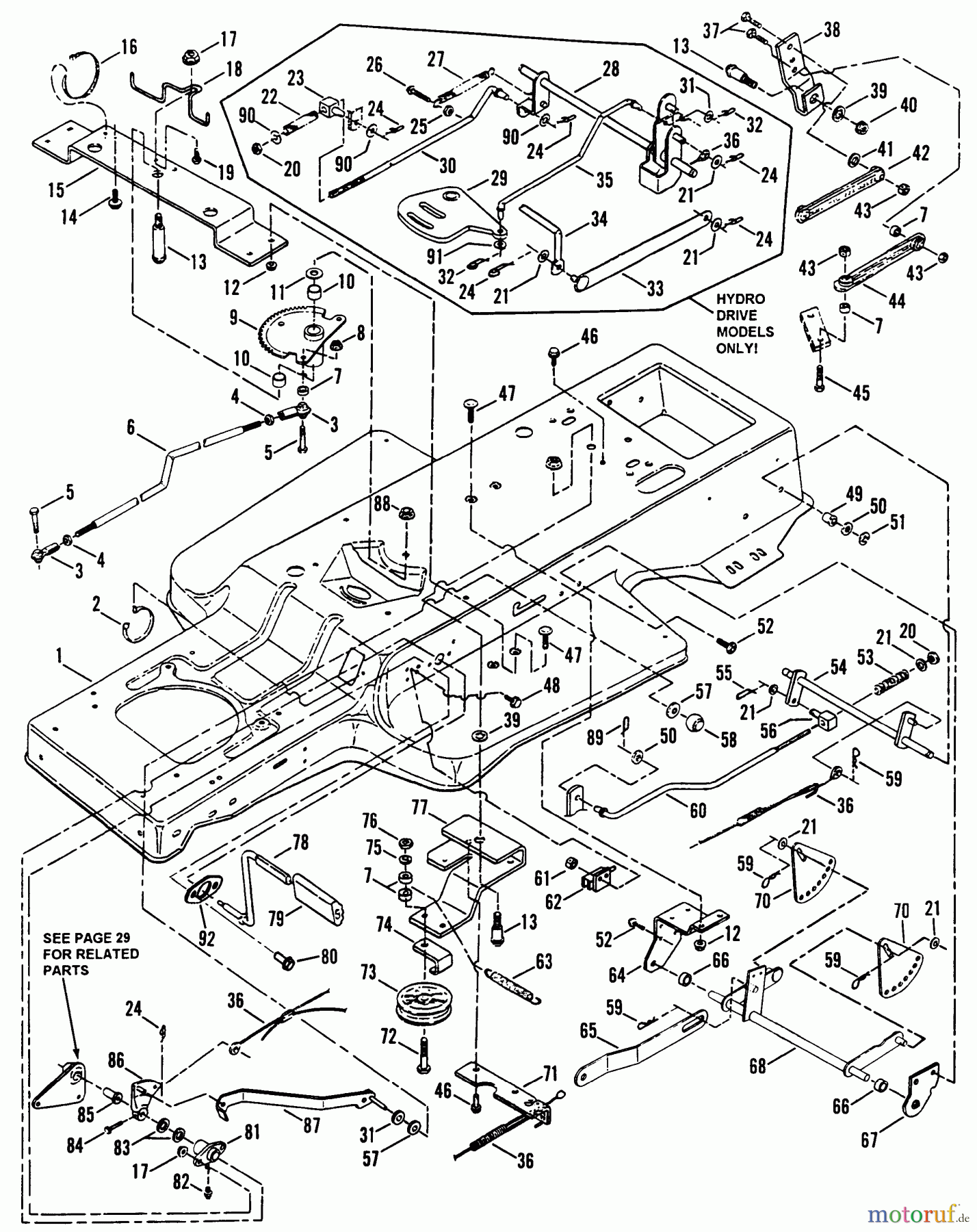

Snapper Rasen- und Gartentraktoren BH140H33BBV (80878) - Snapper 33
PosizioneArticolo numeroDescrizione
1 BS7033301YPFRAME, OPPLT
2 BS7014451YPCABLE TIE
3 BS7027936SMROD END
4 BS7090482SMHJN, 3/8F GR5 ZP
5 BS7090163YPHHCS, NYLON PATCH
6 BS7028420
7 BS7024180YPSPACER, .56 OD
8 BS703333MUTTER, 3/8-16
9 BS7053568
10 BS7012706SMBEARING, SLEEVE, .875
11 BS7031036YPWASHER, THRUST
12 BS703233MUTTER, 1/4-20, GR5
13 BS7035849YP(C) BOLT, SHLDR, 1/2C
14 BS704060SCREW,HEX, #10-24X.5
15 BS7033627YPBRACE, SECTOR GEAR
16 BS7012080SMCABLE TIE, 7.0
17 Snapper MUTTER, 5/16-18, GR5BS703409MUTTER, 5/16-18, GR5
18 BS7028314YPBELT GUIDE, TRAC. DRI
19 BS9357MASCHRAUBE, 5/16-18X .75WD
20 BS703117MUTTER
21 BS703878WASHER, FLAT
22 BS7028091YPSPRING, COMPRESSION,
23 BS7028037SM
24 BS7091593SMSICHERUNGSSPLINT SELBSTS.
25 BS703164MUTTER
26 BS7091524YPHWST, SWAGEFORM,
27 BS7012264YPFEDER, FREIL. & BREMSE
28 BS7041589YPWELD, BRAKE ARM
29 BS7041612YPWELD, SPEED CONTROL A
30 BS7028034YPROD, BRAKE
31 BS703350U-SCHEIBE, 5/16
32 BS7034162YPCOTTER PIN, 5/16
33 BS7041590YPSPOT WELD, SHIFT LINK
34 BS7052920YPASM,LWR SHIFT LVR/STR
35 BS7034159YPSPEED LINK, LOWER
36 BS7024115YPCABLE, CLUTCH / BRAKE
37 BS703871KOPFSCHRAUBE,3/8-16X1.25
38 BS7033555YPBELLCRANK, SHIFT LEVE
39 BS7090509YPZAHNSCHEIBE
40 BS703918NUT, HEX FLNG, 1/2-13
41 BS703454LOCKWASHER, SPLIT 3/8
42 BS7024286YPLINK, SHIFT LEVER
43 BS703347MUTTER, 3/8-16
44 BS7025041YPLINK, SHIFT LEVER, LW
45 BS7091497SMSECHSK.SCHR.3/8CX1-1/2GR
46 BS703949SCHRAUBE, 5/16-18.625
47 BS7090803YPBOLT, 1/4-20X5/8
48 BS7091240YPCPSCW HWMS, #10 X 5/8
49 BS7011016YPLAGER, NYLON
50 BS7091587SMUNTERLAGSCHEIBE, .531X1.062X.1
51 BS703976RETAINER, RING, 1/2
52 BS7091000SMPHST, Sternantrieb
53 BS7024381YPSPRING, BRAKE
54 BS7041347YPWELD, BRAKE PIVOT
55 BS7091594SMSICHERUNGSSPLINT 1/2 SELBSTS.
56 BS7024586YPSWIVEL, BRAKE LINK, P
57 BS7023649YPU.-SCHEIBE, 5/16 NYLON
58 BS7072403YPKNAUF, W/5/16-18
59 BS703300PIN, 3/32 X 1.6
60 BS7024430YPROD, BRAKE
61 BS7090376YPMUTTER, 10-32 SELBSTS.
62 BS7023355YPSWITCH, DPDT
63 BS7024383YPSPRING, IDLER
64 BS7033521YPBRKT, REAR LIFT / PTO
65 BS7034347YPLINK, LIFT, DECK, 33
66 BS7034384YPSPACER, .688 OD X.515
67 BS7033520YPBRKT, DECK HANGER PIV
68 BS7041249YPWELD, REAR LIFT ARM,
70 BS7034377YPSECTOR, LIFT PLATE
71 BS7033595YPEXTENSION, IDLER ARM
72 BS703872KOPFSCHRAUBE,3/8-16X2.25
73 BS7023954YPIDLER, FLAT, 3.47OD
74 BS7033556YPBELT GUIDE, YELLOW
75 BS7091320
76 BS7091302SMHN, 3/8C GR5 YZ
77 BS7033557YPARM, IDLER, TRACTION
78 BS7022743YPPEDAL, CLUTCH / BRAKE
79 BS7012661YPPEDALGUMMI
80 BS7091000
81 BS7052431YPPIVOT/ FOOT SHAFT ASM
82 BS7014871SM
83 BS7027344SMFW, .668X1.324X.098 Y
84 BS7023645SMPIN, CLEVIS
85 BS7022742YPBEARING, FLANGE
86 BS7041236YPSPOT WELD, CLUTCH / B
87 BS7041244YPSPOT WELD, PARKING BR
88 BS7090975YPHCLN, 1/2C GR5 ZP
89 BS7091594
90 BS7090122
91 BS7090188
92 BS7063052YPPIVOT WASHER STIFFENE
