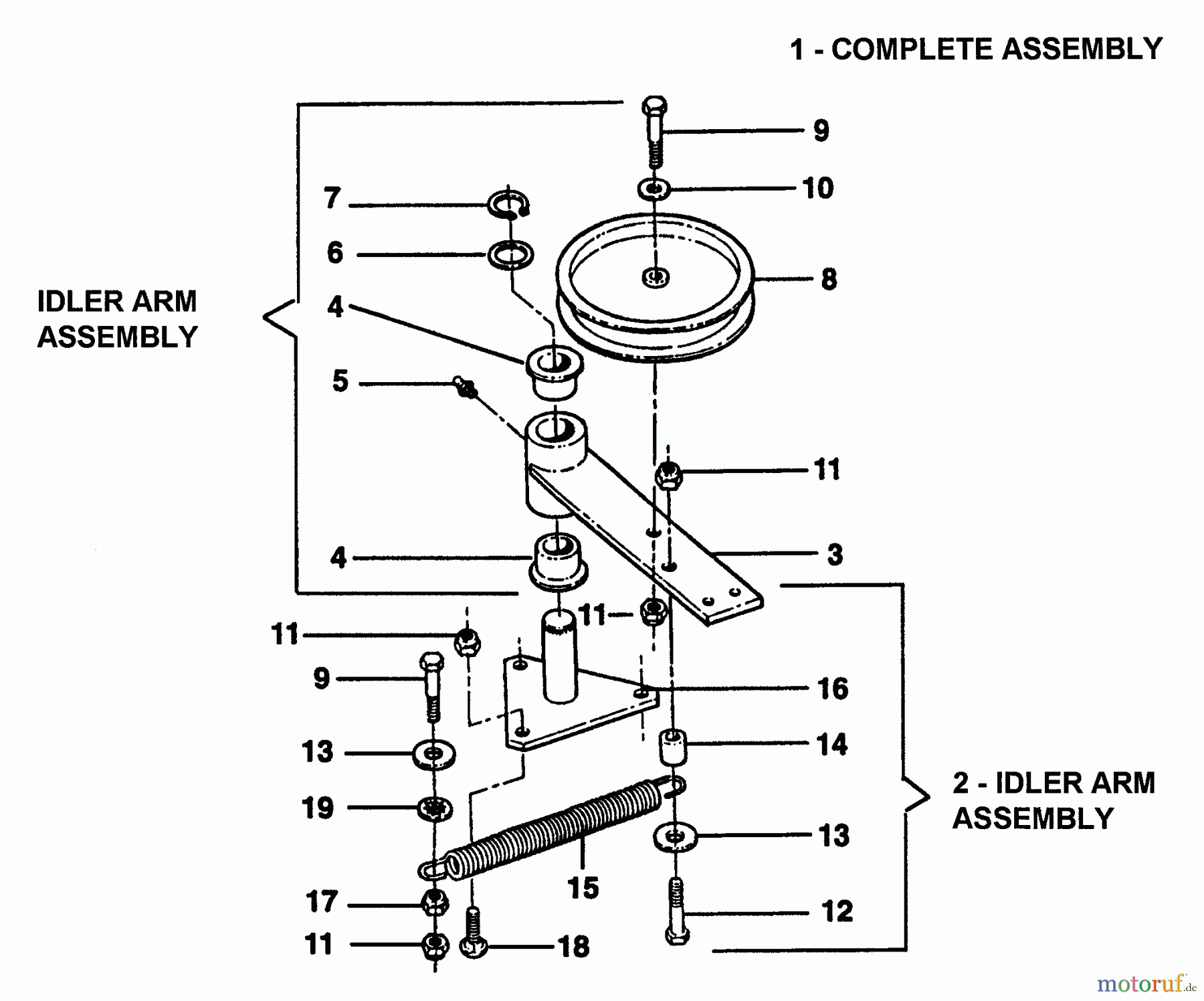

Snapper ZF7302M - 73" Out Front Mower, Commercial Lawn & Turf Series 2 Spring - Loaded Idler Group Ricambi

Spring - Loaded Idler Group ZF7302M - Snapper 73" Out Front Mower, Commercial Lawn & Turf Series 2

Snapper Mähdecks ZF7302M - Snapper 73
PosizioneArticolo numeroDescrizione
1 BS7054356
2 BS7054248
3 BS7042619YP(C) WELD, IDLER ARM,
4 BS7023556YPBUSHING, CASTER
5 BS703153ZERK,GREASE FITTING
6 BS7032031YPFW, 1.031X1.25X.03
7 BS7012709YPRETAINING RING, 1" OD
8 BS7035789YPPULLEY, IDLER 5.5 OD
9 BS7091305SMHHCS, 3/8C X2 GR5 YZ
10 BS7090517SMFW, .438X1X.084 YZ
11 BS703117MUTTER
12 BS1921971SMKOPFSCHRAUBE, SECHSK. HD 3/8
13 BS7091331SMU.-SCHEIBE.406X1.5X.120 YZ
14 BS7035858YP(C) SPACER, .750 OD X
15 BS7035667YP(C) SPRING, EXTENSION
16 BS7041295YP(C) WELD, IDLER PIVOT
17 BS703333MUTTER, 3/8-16
18 BS703814BOLT, RD HD, 3/8-16X1
19 BS703986RETAINER, PUSHNUT,3/8
