Snapper ZF7302M - 73" Out Front Mower, Commercial Lawn & Turf Series 2 Fixed Idler Group Ricambi

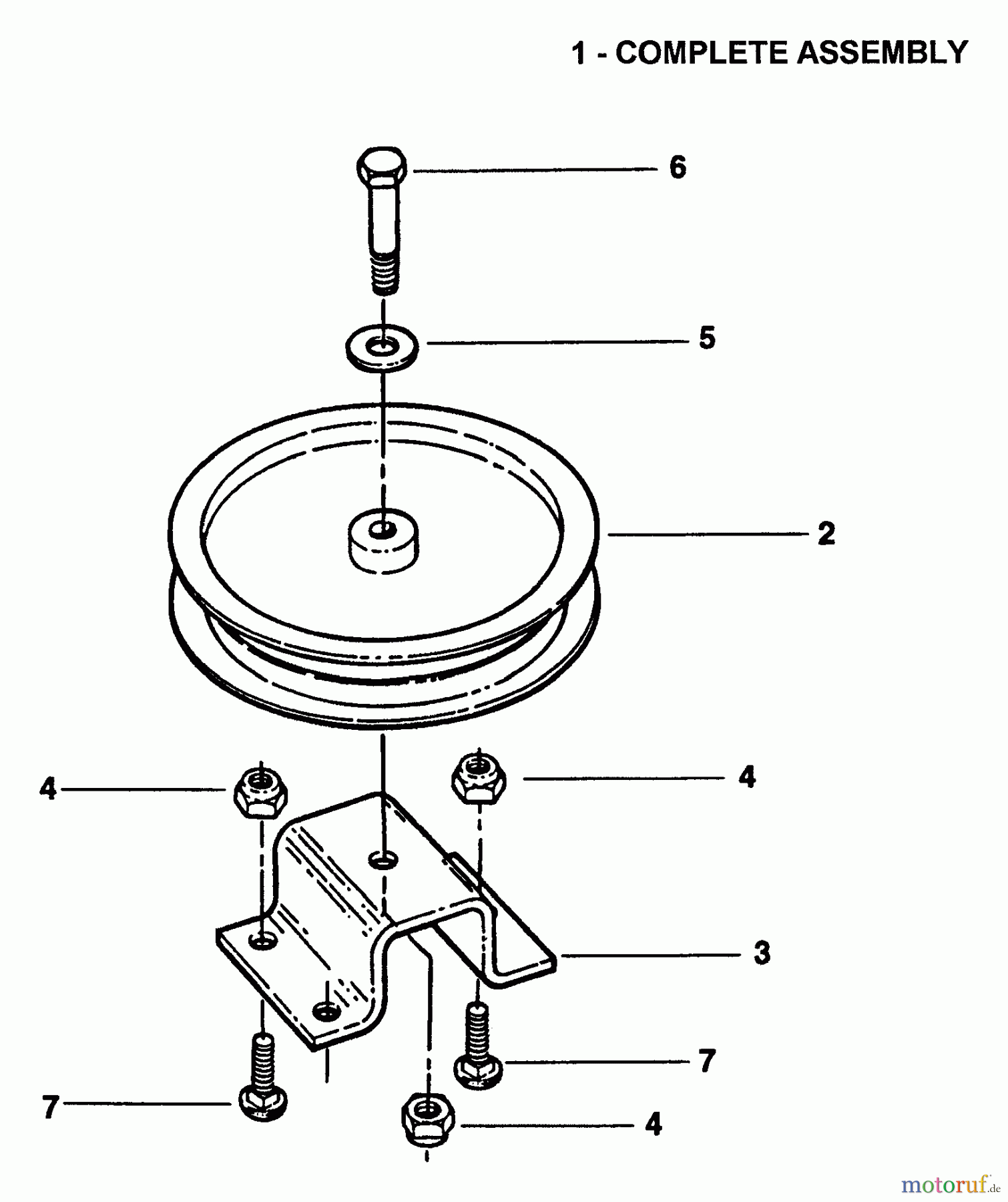

Fixed Idler Group ZF7302M - Snapper 73" Out Front Mower, Commercial Lawn & Turf Series 2
| Posizione | Articolo numero | Descrizione | |
| 1 | BS7054355 | ||
| 2 | BS7035789YP | PULLEY, IDLER 5.5 OD | |
| 3 | BS7036449YP | (C) STAND, FIXED IDLE | |
| 4 | BS703117 | MUTTER | |
| 5 | BS7090517SM | FW, .438X1X.084 YZ | |
| 6 | BS7091305SM | HHCS, 3/8C X2 GR5 YZ | |
| 7 | BS703814 | BOLT, RD HD, 3/8-16X1 | |
