Snapper PMA7362 - 36" Pro Deck Attachment, Series 2 Blade Brake (Part 1) Ricambi

• Start
• Snapper
• Mähdecks
• PMA7362 - Snapper 36" Pro Deck Attachment, Series 2
• Blade Brake (Part 1)

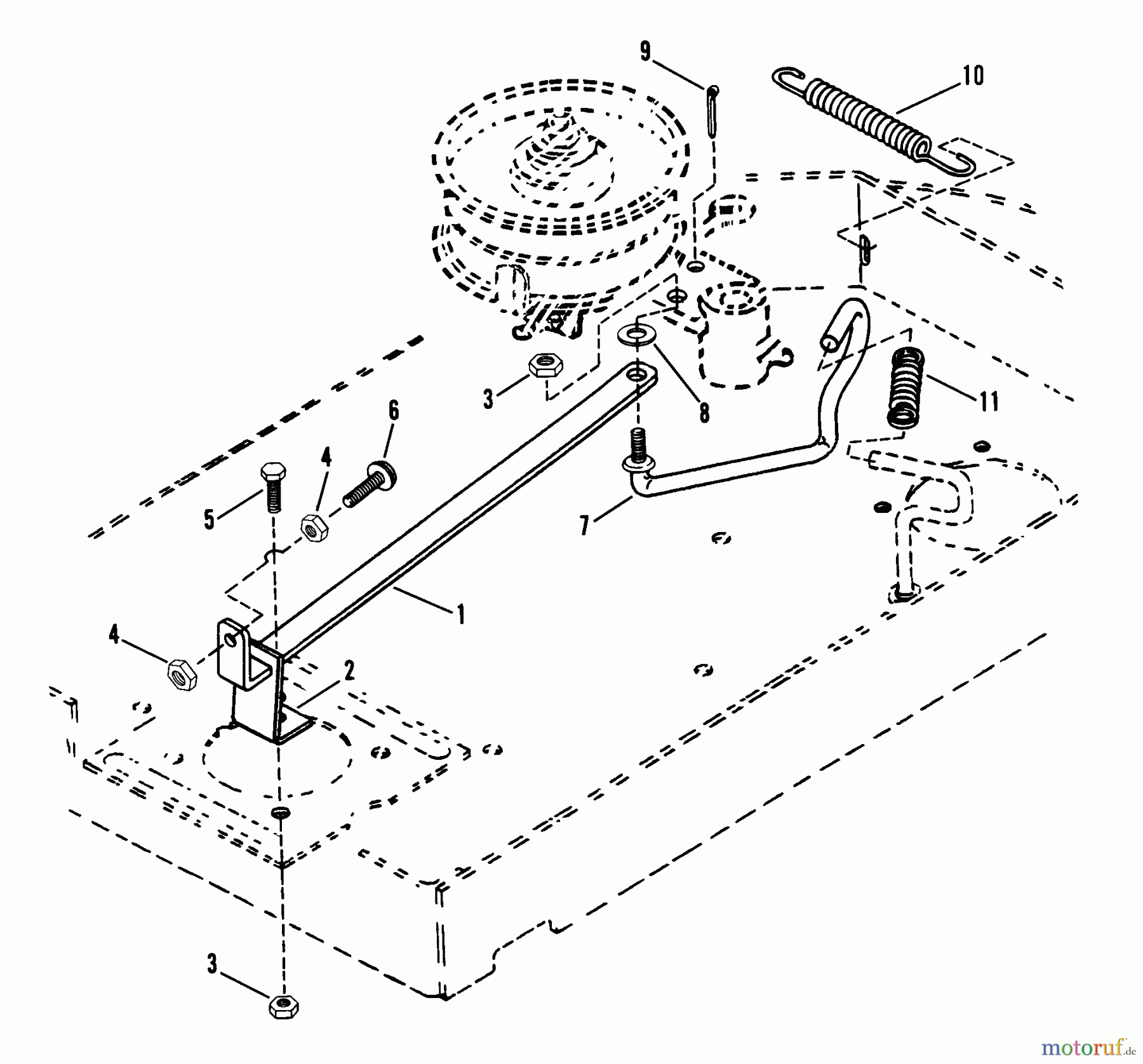

Blade Brake (Part 1) PMA7362 - Snapper 36" Pro Deck Attachment, Series 2

Posizione		Articolo numero	Descrizione
1		BS7033453YP	(C) ARM, BRAKE, 36
2		BS7033452YP	(C) BRKT, BRAKE
3		BS703117	MUTTER
4		BS7090197YP	HJN, 5/16C ZP #
5		BS7091497SM	SECHSK.SCHR.3/8CX1-1/2GR
6		BS1960223SM	BOLZENACHSE HD SH SQ NK5
7		BS7033454YP	(C) BELT GUIDE, BRAKE
8		BS7017855
9		BS7090357YP	COTTER PIN, 3/16X3/4
10		BS7022433YP	(C) SPRING, IDLER RET
11		BS7016158YP	(C) SPRING, TRACTION
