Snapper PMA7362 - 36" Pro Deck Attachment, Series 2 36" Mower Deck Assembly Ricambi

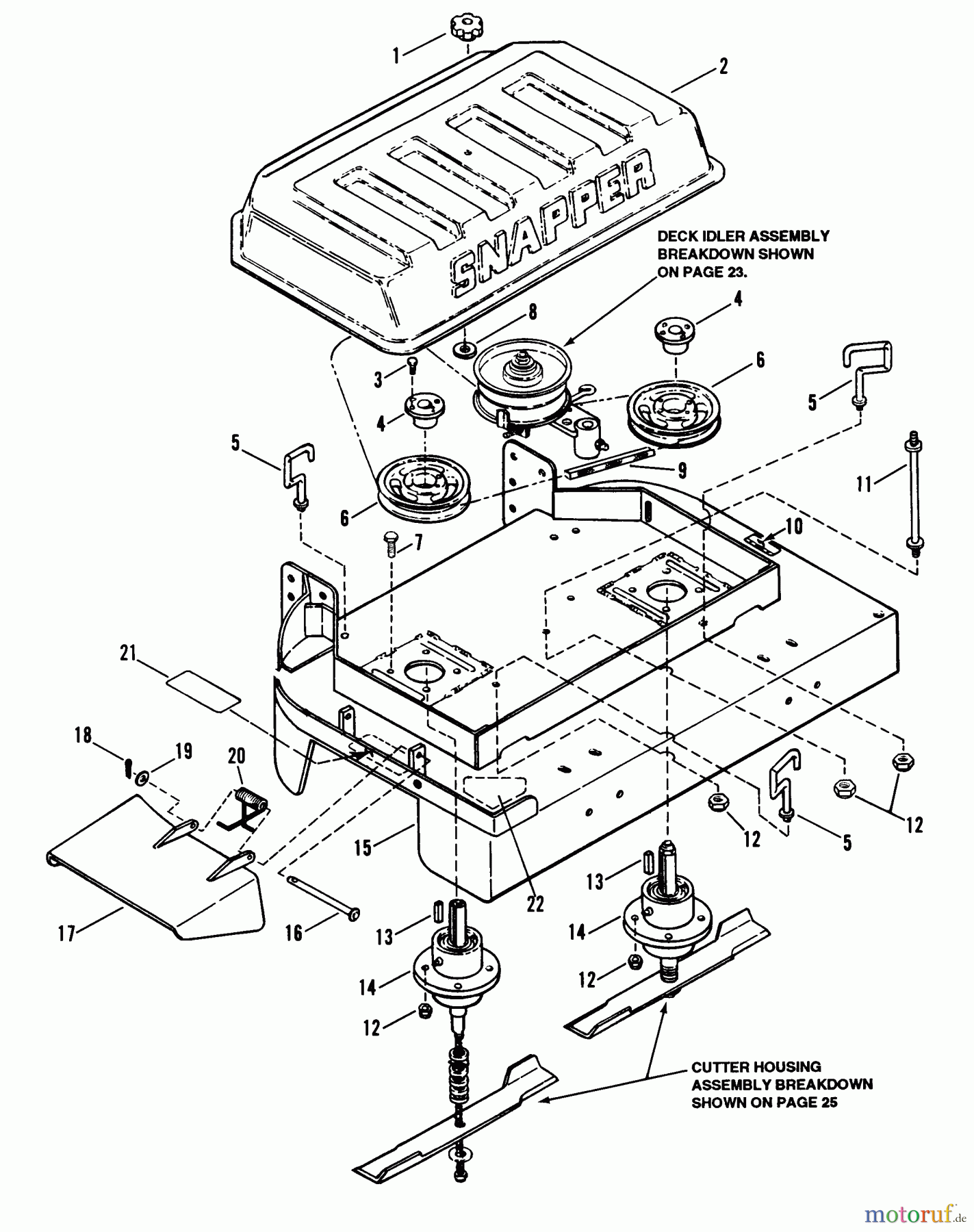

36" Mower Deck Assembly PMA7362 - Snapper 36" Pro Deck Attachment, Series 2

Snapper Mähdecks PMA7362 - Snapper 36
PosizioneArticolo numeroDescrizione
1 BS703065WINGKNOB, 5/16-18
2 BS7017812
3 BS7090643YPHHCS, 1/4C X7/8 GR5 Z
4 BS7023381YP(C) BUSHING, TAPERLOC
5 BS7024285YPBELT GUIDE, 748
5 BS7033417YP(C) BELT GUIDE
6 BS7017336YP(C) PULLEY, 5.75 BTD
7 BS703871KOPFSCHRAUBE,3/8-16X1.25
8 BS7091047YP(C) FW, .406X1.5X.12
9 BS7029908YPBELT, ENGINE TO 36"
10 BS7073647YP(C) DECAL, CAUTION
11 BS7022890YP(C) STUD, HOOD MOUNT
12 BS703117MUTTER
13 BS7017033YP(C) KEY, SQUARE, 1/4X
14 BS7052457YP(C) CUTTER HOUSING AS
15 BS7041572
16 BS7024124YP(C) ROD, CHUTE PIVOT
17 BS7041321YP(C) WELD, CHUTE DEFLE
18 BS7091313YPSPLINT
19 BS703350U-SCHEIBE, 5/16
20 BS7027950YPSPRING, CHUTE
21 BS7022522YP(C) DECAL, WARNING
22 BS7013010SMDECAL-DANGER, CUT FIN
