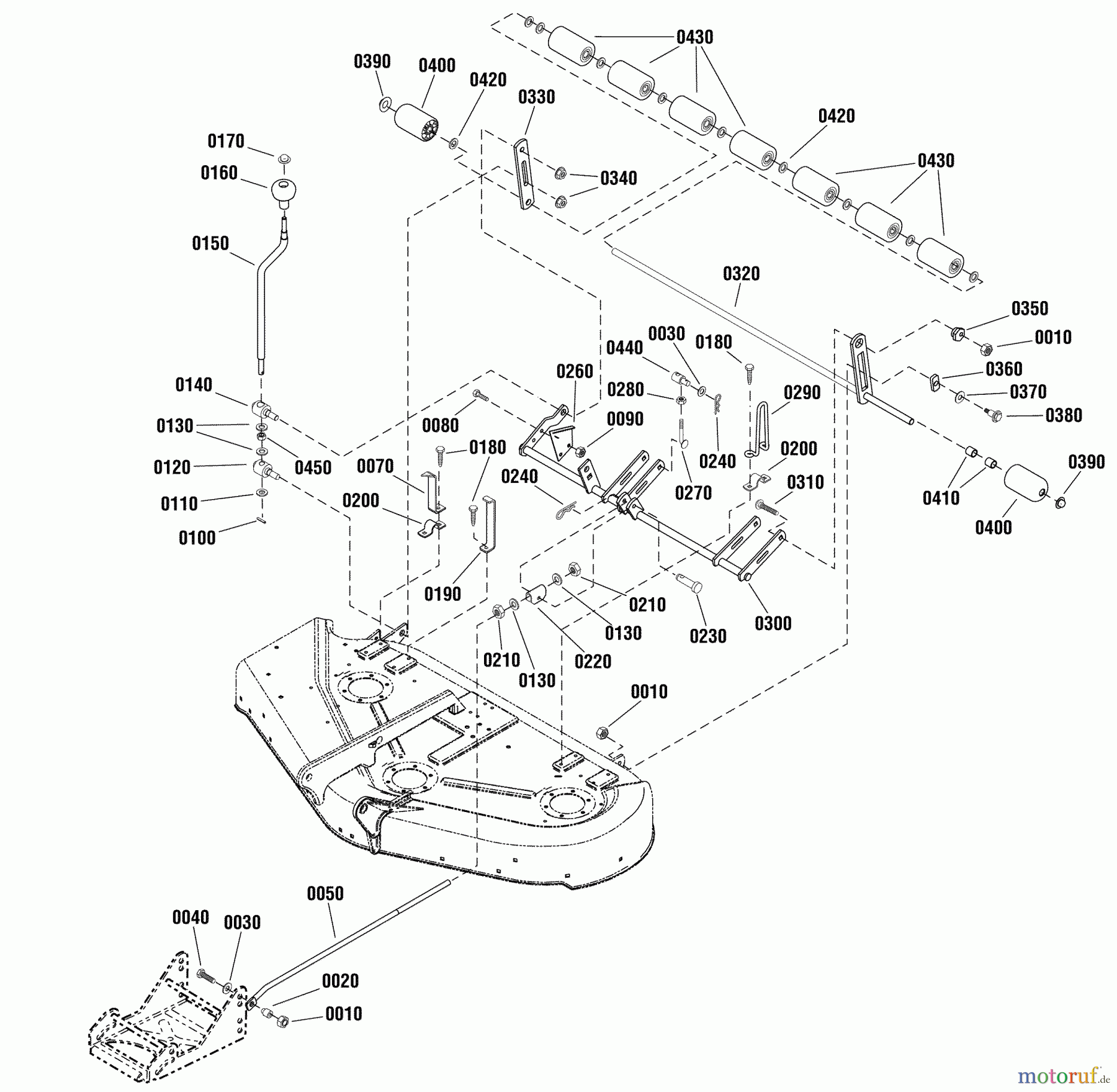

44" Mower Deck - Height Adjustment & Roller Bar Group 1695414 - Snapper 44" Mower Deck

Snapper Mähdecks 1695414 - Snapper 44
PosizioneArticolo numeroDescrizione
10 BS2860681SMMUTTER SELBSTSICH.
20 BS1706644SMSPACER,3/8X3/4X15/16
30 BS703878WASHER, FLAT
40 BS1921971SMKOPFSCHRAUBE, SECHSK. HD 3/8
50 BS1734797
70 BS1720643ASMINDICATOR-HEIGHT-BLAC
80 BS9357MASCHRAUBE, 5/16-18X .75WD
90 Snapper MUTTER, 5/16-18, GR5BS703409MUTTER, 5/16-18, GR5
100 BS2816001SMSPANNSTIFT .188 X 1.0
110 BS1704097SMSICHERUNGSMUTTER .516ID
120 BS1733257SMTRUNNION
130 BS703853WASHER, 0.516IDX1OD
140 BS1733258SMTRUNNION
150 BS1719901SMCRANK-HEIGHT ADJ
160 BS1714084SMKNOB, SPINNER
170 BS703948DRUCKMUTTER, 3/8
180 BS703228SCHRAUBE, 5/16-18 X .75
190 BS1722750ASMBRACKET-UPSTOP 7GA -B
200 BS1665374SMSTRAP-1.00WD 3.06LG .
210 BS1913744SMSTOPMUTTER 1/2
220 BS1704081ASMTRUNNION-BLACK
230 BS2118053SMSICHERUNGSSTIFT 3
240 BS703300PIN, 3/32 X 1.6
260 BS1704116ASMHALTEBLECH -SCHITTHOHE
270 BS703827ROD, ADJUSTER
280 BS1920161SMNUT-HEX JAM 5/16-18
290 BS1720659SMSTOP-UP 0.312WIRE 5.
300 BS1733521ASMSHAFT ASMY-ROCKER 44"
310 BS1931352SMBOLZEN 3 / 8
320 BS1716159ASMSHAFT/BAR ASMY-ROLLER
330 BS1704074ASMBAR,ROLLER-BLACK
340 BS1930644SMBUNDMUTTER 1/2-1
350 BS1704082SMMUTTER JUSTIERUNG .99
360 BS1677507SMSLIDE .803 X 1.7
370 BS1924361SMSCHEIBE-0500(0.53IDX1.
380 BS2172622SMBOLT, SHLDR, 3/8-16
390 BS1960520SMNUT-PUSH FOR .625 DIA
400 BS1722036SMROLLER, ROUNDED
410 BS1602946SMDISTANZRING-0.666ID 0.067W
420 BS1924366SMWASHER-0.625(0.66IDX1
430 BS1668513SMROLLER
440 BS1731382SMTRAGZAPFEN- .37+.625OD
450 BS1716953SMSPACER-0.453IDX0.750O
