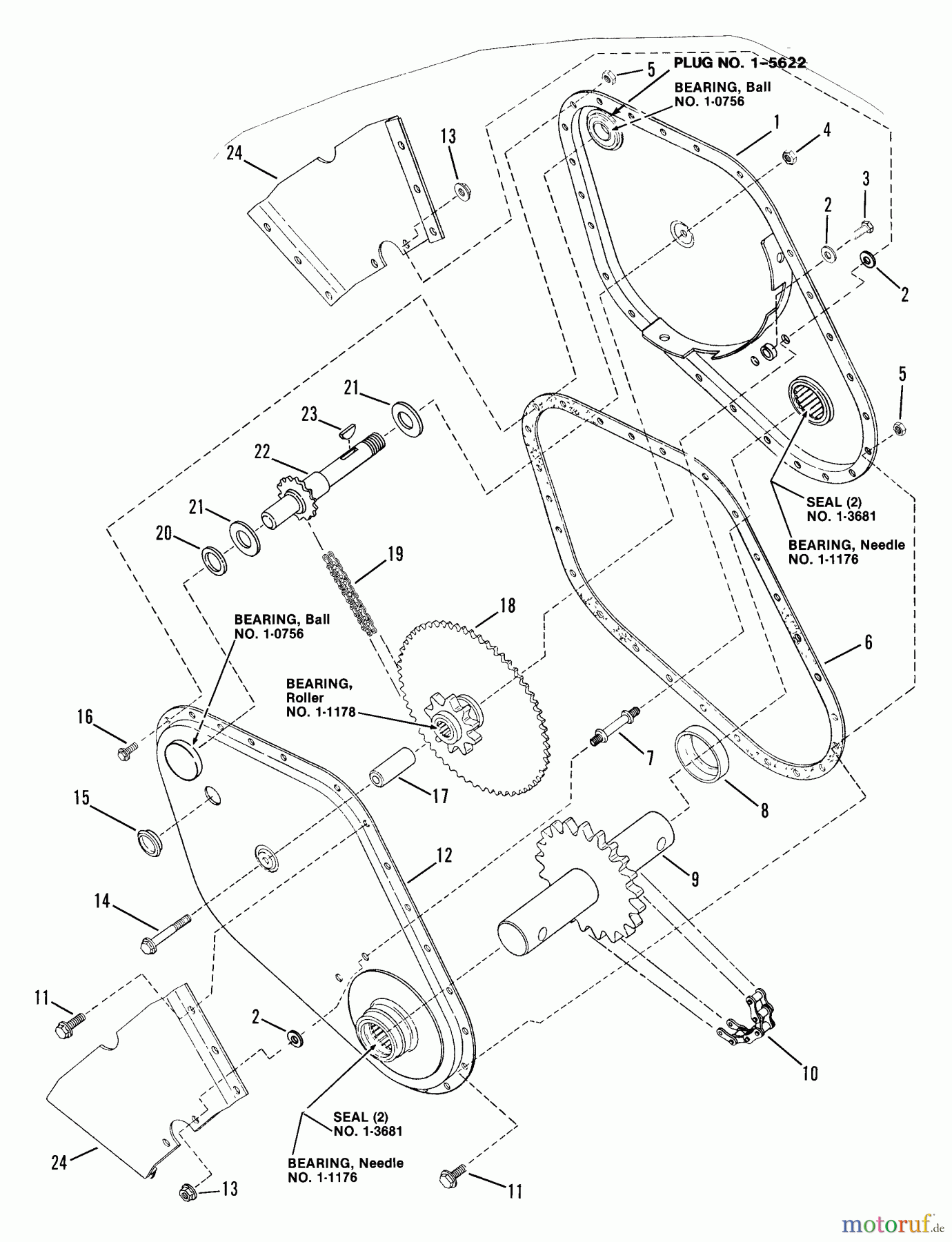

Snapper 7082797 - TA520 Tiller Attachment Gear Box Group Ricambi

Gear Box Group 7082797 - Snapper TA520 Tiller Attachment

Snapper Zubehör, Fräsen und Kultivierer 7082797 - Snapper TA520 Tiller Attachment Gear Box Group
PosizioneArticolo numeroDescrizione
1 BS7051408YPCHAIN CASE ASSY.
10756 BS7010756YPKUGELLAGER
11176 BS7011176YPBEARING, ROTOR SHAFT
13681 BS7013681YPDICHTUNG
13681 BS7023775
15622 BS7015622YPDICHTUNG
2 BS7014980YPWASHER, SEAL
3 BS7090554YPHWST, 5/16C X3/8 ZP
4 BS703459NUT, HEX, 5/16-24
5 BS703164MUTTER
6 BS7019716YPGASKET
7 BS7014677YPSTUD, 5/16CX2.6
8 BS7011181YPSPACER, SHAFT
9 BS7040364YPROTOR SHAFT
10 BS7014313
11 BS7091318
12 BS7051363
-- BS7049701
-- BS7010756
-- BS7011176
-- BS7013681
-- BS7023775
13 Snapper MUTTER, 5/16-18, GR5BS703409MUTTER, 5/16-18, GR5
14 BS7090838YPHHCS, 5/16F X2-1/4 GR
15 BS7011024YPSTOPFEN
16 BS7090858YPMUTTER, 5/16-18X1/2 SELBSTS.
17 BS7021752YPRACE, BEARING
18 BS7050724
-- BS7040437YPSPROCKET, INTERMEDIAT
11178 BS7011178
19 BS7014312YPCHAIN, DRIVE
20 BS7013681
21 BS7010690YPWASHER, SHIM, .625X.8
22 BS7019102YPSHAFT, DRIVE
23 BS7010211YPFEDERKEIL, #9
24 BS7038090
25 BS7015017YPTOLERANCE RING, .625
