Snapper 7082797 - TA520 Tiller Attachment Cover Group Ricambi

• Start
• Snapper
• Zubehör, Fräsen und Kultivierer
• 7082797 - Snapper TA520 Tiller Attachment
• Cover Group

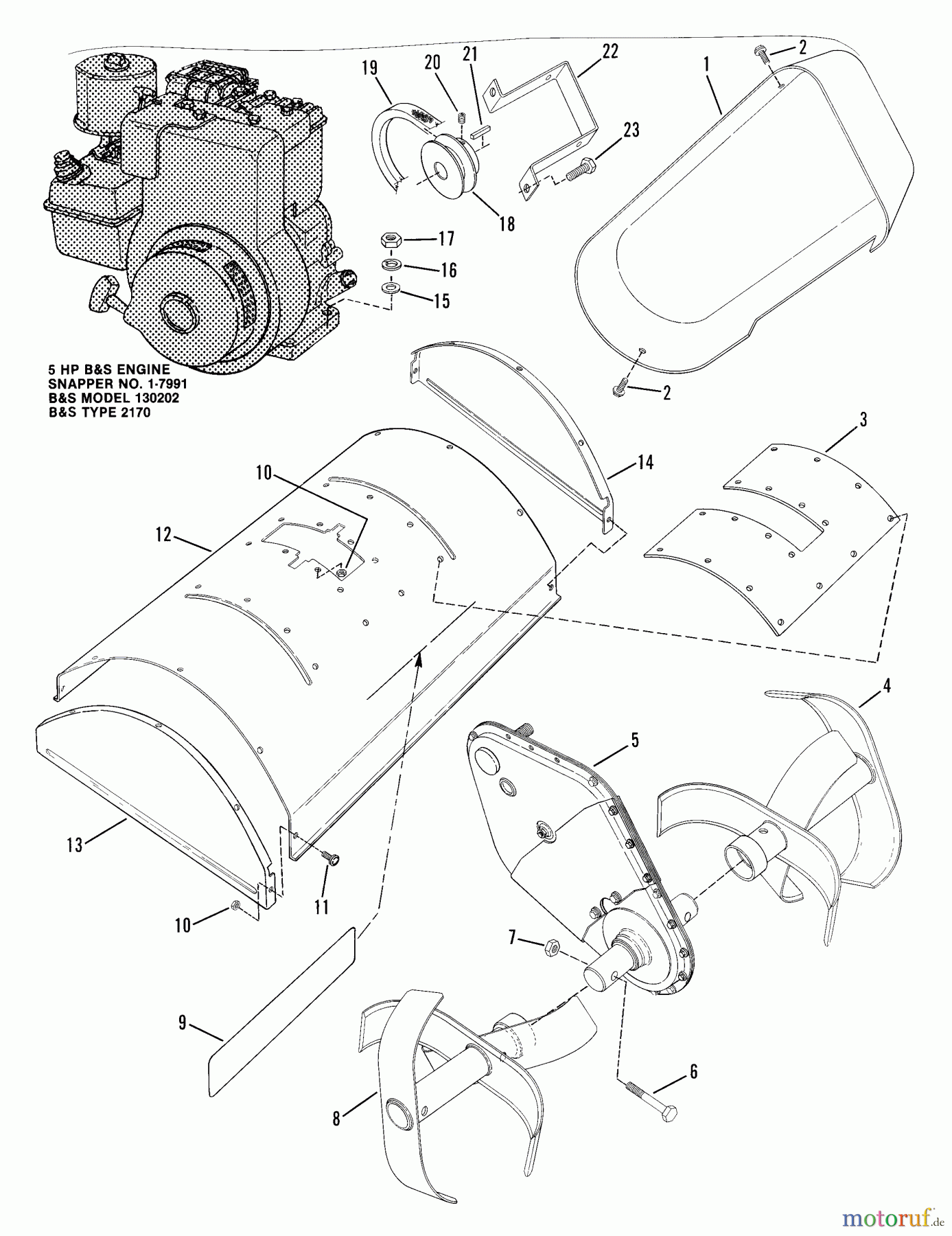

Cover Group 7082797 - Snapper TA520 Tiller Attachment

Posizione		Articolo numero	Descrizione
1		BS7019781YP	COVER, BELT
2		BS7091084YP	HWST, 1/4C X3/8 BZ
3		BS35061
4		BS7075159YP	WELD, TINE, 11.5, RH
5		BS7059691
6		BS7014586YP	ABSCHERBOLZEN GR5 YZ
7		BS703458	MUTTER, 3/8-24
8		BS7049941
9		BS7019295YP	DECAL, SNAPPER
10		BS703409	MUTTER, 5/16-18, GR5
11		BS703798	BOLT, 5/16-18X0.50
12		BS7035098YP	COVER, TINE
13		BS7035062
14		BS7035063YP	PLATE, SIDE, RH
15		BS703350	U-SCHEIBE, 5/16
16		BS7090187SM	SLW, .318X.583X.078 Z
17		BS7091511SM	MUTTER, 5/16C GR5 YZ
18		BS7011809YP	PULLEY, YELLOW
19		BS7015329YP	V-BELT, 3 POINT TILLE
20		BS7090201SM	HRSS, 5/16C X5/16
21		BS7010061SM
22		BS7038231YP	BELT GUIDE
23		BS7090322YP	HHCS, 5/16F X1/2 GR5
