Snapper 7080426 - 19" Lady Garden Single Stage Snowthrower Discharge Chute, Deflector, Control Handle Ricambi

• Start
• Snapper
• Zubehör, Schnee
• 7080426 - Snapper 19" Lady Garden Single Stage Snowthrower
• Discharge Chute, Deflector, Control Handle

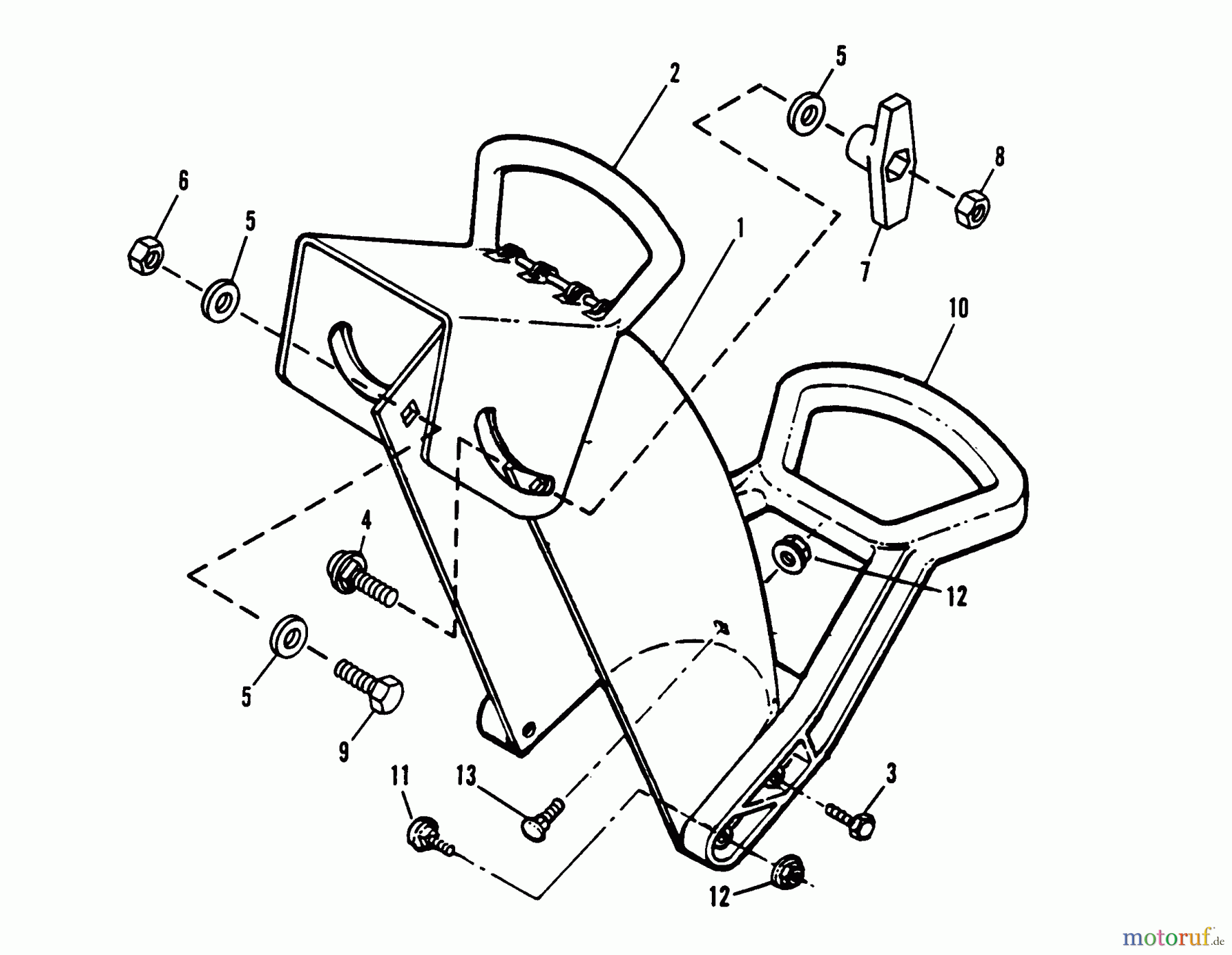

Discharge Chute, Deflector, Control Handle 7080426 - Snapper 19" Lady Garden Single Stage Snowthrower

Posizione		Articolo numero	Descrizione
1		BS7052967YP	(S) CHUTE / DEFLECTOR
2		BS7052975SM
3		BS7091318
4		BS7091303YP	RHSSNB, 5/16CX1 GR5
5		BS703350	U-SCHEIBE, 5/16
6		BS7091606SM	HCLN, 5/16F YZ
7		BS703065	WINGKNOB, 5/16-18
8		BS7091511SM	MUTTER, 5/16C GR5 YZ
9		BS7091021YP	HHCS, 5/16F X3/4
10		BS7046340SM
11		BS1960223SM	BOLZENACHSE HD SH SQ NK5
12		BS703409	MUTTER, 5/16-18, GR5
13		BS7090316SM	RHSNB, 5/16C X3/4 GR5
