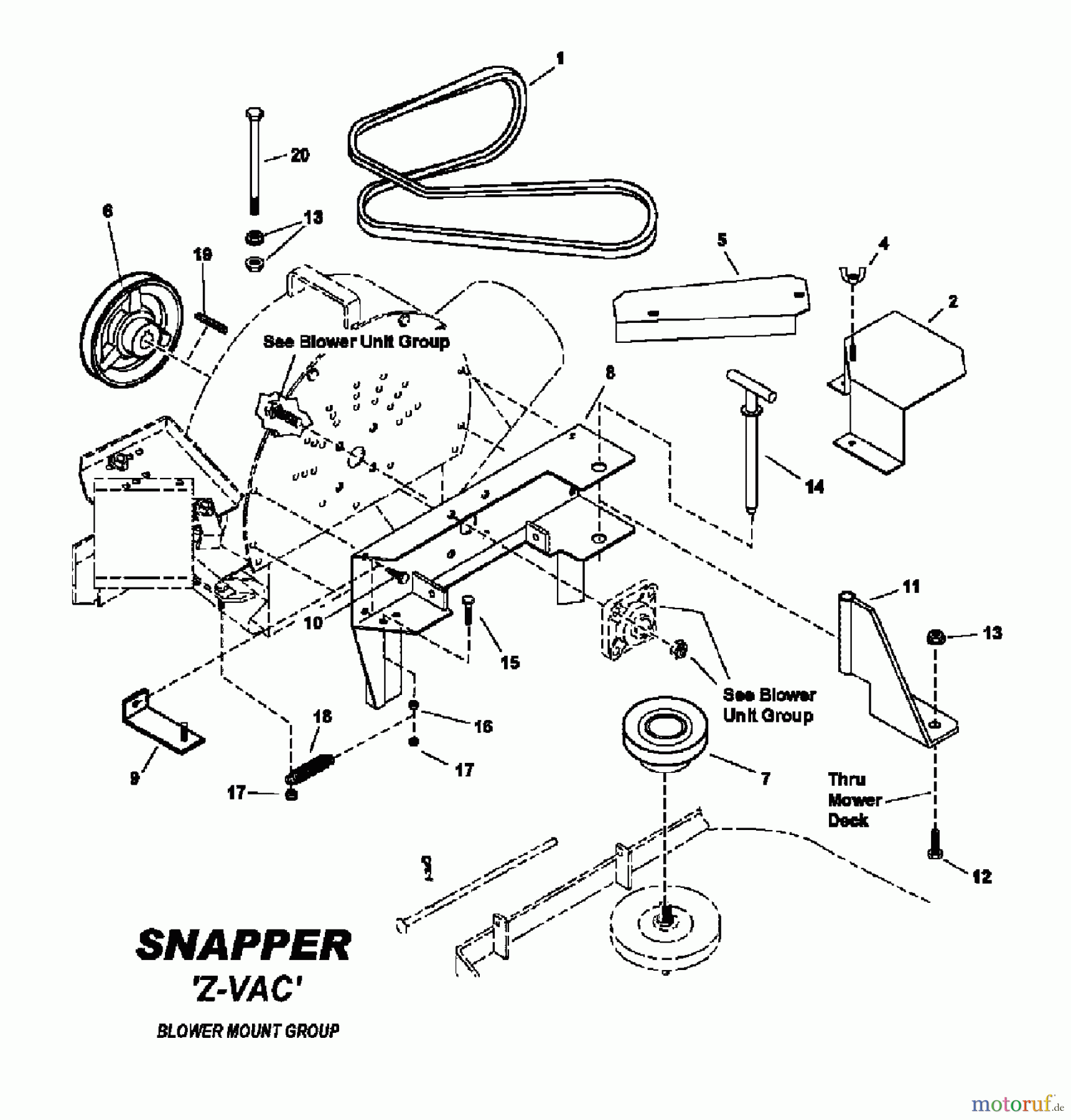

Snapper 7600028 - Large Clamshell Grass Catcher, 61" NZM BLOWER MOUNT GROUP Ricambi

BLOWER MOUNT GROUP 7600028 - Snapper Large Clamshell Grass Catcher, 61" NZM

Snapper Zubehör. Rasenmäher 7600028 - Snapper Large Clamshell Grass Catcher, 61
PosizioneArticolo numeroDescrizione
1 BS5022844SM
2 BS7033867YPSPOT WELD, PULLEY GUA
4 BS7091537YPWLN, 5/16C YZ
5 BS7033847YPGUARD, BELT, 61 NZM
6 BS3046809YPPULLEY, BLOWER, 61" S
7 BS3036324YPPULLEY, SPINDLE, FAST
8 BS7033873YPWELD, MOUNTING BRACKE
9 BS3027507
10 BS703228SCHRAUBE, 5/16-18 X .75
11 BS3027508YPWELD, DECK MOUNT BRKT
12 BS7091304SMSECHSK.SCHRAUBE, 3/8C X1 GR5 Y
13 BS703333MUTTER, 3/8-16
14 BS3032118YPWELD, PIN, T-HANDLE L
15 BS7091527YPHHCS, 5/16C X1-1/4
16 Snapper MUTTER, 5/16-18, GR5BS703409MUTTER, 5/16-18, GR5
17 BS704001NUT, 5/16-18
18 BS3020807SM
19 BS7012315YPKEY, SQUARE, 1/4X1.44
20 BS7091617YPHHCS, 3/8C X6 GR5 YZ
-- BS7033740
-- BS7033868YPSPOT WELD, SPRING BRA
