Snapper 7600026 - Large Clamshell Grass Catcher, 48" NZM BLOWER MOUNT GROUP Ricambi

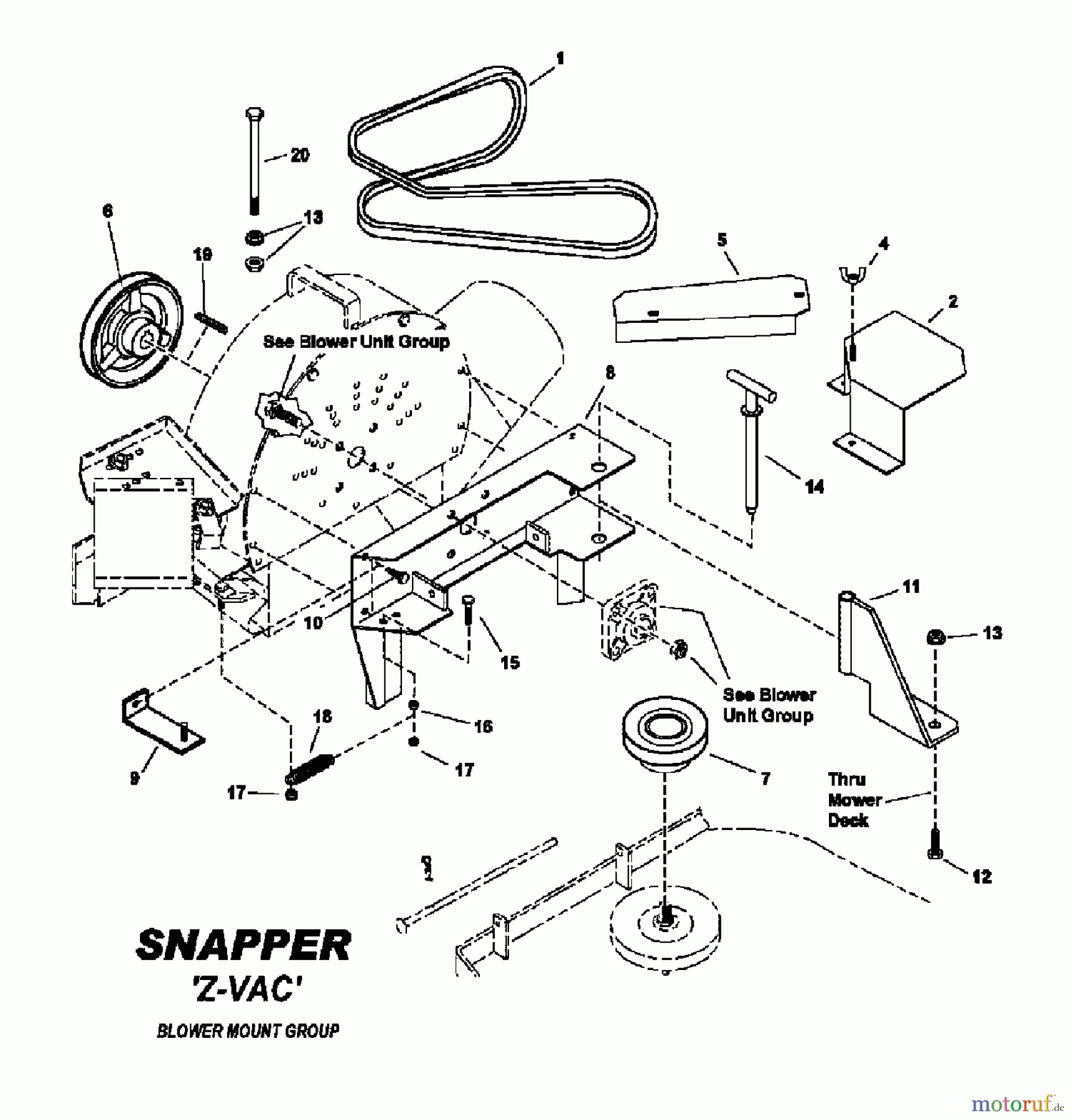

BLOWER MOUNT GROUP 7600026 - Snapper Large Clamshell Grass Catcher, 48" NZM

Snapper Zubehör. Rasenmäher 7600026 - Snapper Large Clamshell Grass Catcher, 48
PosizioneArticolo numeroDescrizione
1 BS3036323YPBELT, BLOWER UNIT DRI
2 BS3037161
4 BS7091537YPWLN, 5/16C YZ
5 BS3037162YPGUARD, BELT, 48
6 BS3046806YPPULLEY
7 BS3036324YPPULLEY, SPINDLE, FAST
8 BS3027505
9 BS3027507
10 BS703228SCHRAUBE, 5/16-18 X .75
11 BS3027508YPWELD, DECK MOUNT BRKT
12 BS7091304SMSECHSK.SCHRAUBE, 3/8C X1 GR5 Y
13 BS703333MUTTER, 3/8-16
14 BS3032118YPWELD, PIN, T-HANDLE L
15 BS7091527YPHHCS, 5/16C X1-1/4
16 Snapper MUTTER, 5/16-18, GR5BS703409MUTTER, 5/16-18, GR5
17 BS704001NUT, 5/16-18
18 BS3020807SM
19 BS7012315YPKEY, SQUARE, 1/4X1.44
20 BS7091617YPHHCS, 3/8C X6 GR5 YZ
