Snapper 7063023 - 42" Dual Idler Deck Kit, Rear-Engine Rider SPINDLE BRAKE COMPONENTS Ricambi

SPINDLE BRAKE COMPONENTS 7063023 - Snapper 42" Dual Idler Deck Kit, Rear-Engine Rider

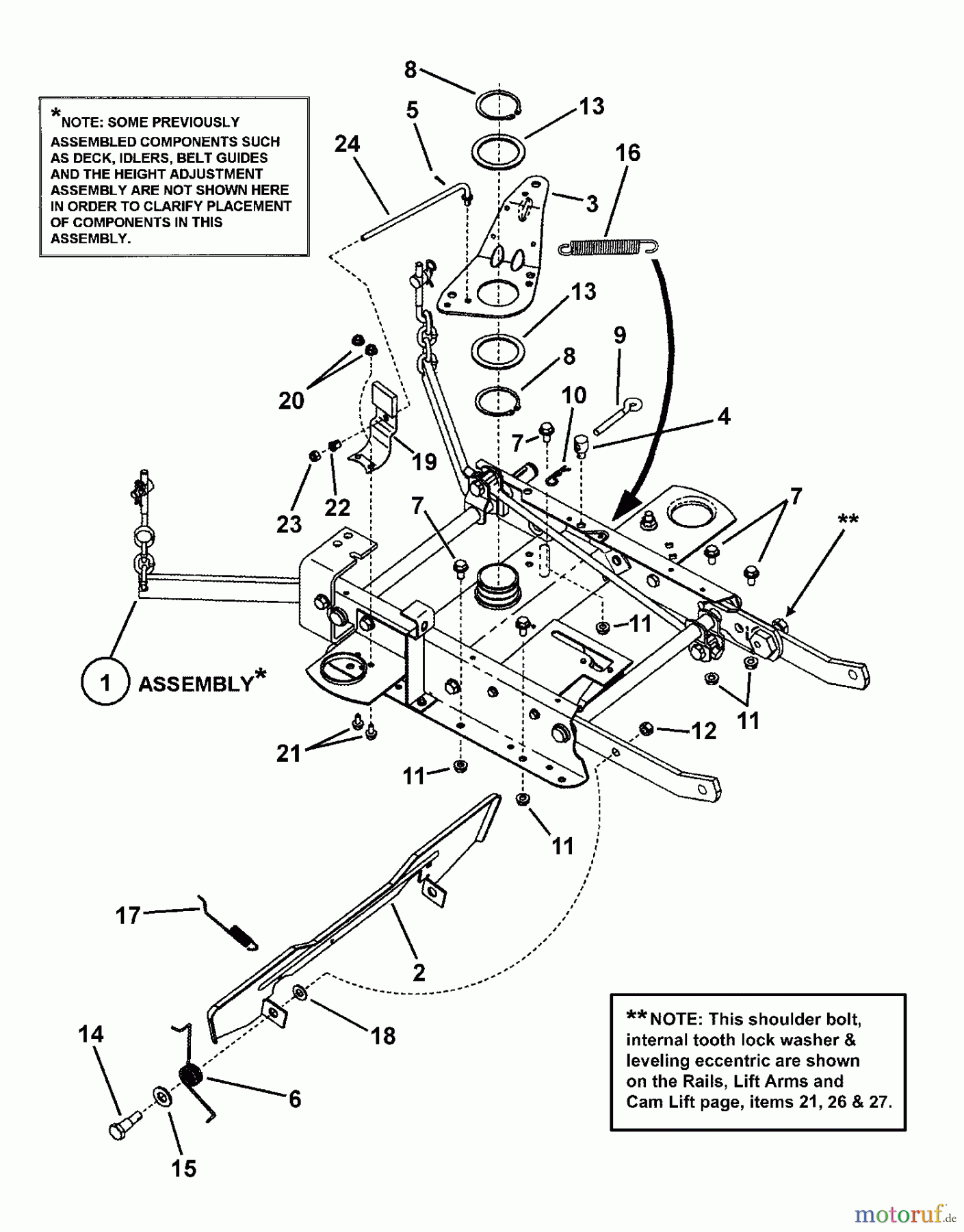

Snapper Zubehör. Rasenmäher 7063023 - Snapper 42
PosizioneArticolo numeroDescrizione
1 BSEingangswelle UE 600
2 BS7073267YPFU?PEDAL, ABS
3 BS7034758YPARM, IDLER
4 BS7028200SMSICHERUNGSSTIFT
5 BS703464PIN, COTTER, 1/16X0.5
6 BS7015448YPFEDER, PEDAL
7 BS7090606SMHFLB, 5/16C X5/8 ZP
8 BS7010740YPSICHERUNGSRING
9 BS7029244YPEYE BOLT, 5/16-18 X 3
10 BS703300PIN, 3/32 X 1.6
11 Snapper MUTTER, 5/16-18, GR5BS703409MUTTER, 5/16-18, GR5
12 BS703458MUTTER, 3/8-24
13 BS7014795YPWASHER, NYLON
14 BS7015446YPBUNDSCHRAUBE
15 BS7091587SMUNTERLAGSCHEIBE, .531X1.062X.1
16 BS7024341YPSPRING, RETURN
17 BS7074649YPFEDERARRETIERUNG
18 BS703878WASHER, FLAT
19 BS7034754YPPAD, SPRING / BRAKE
20 BS703233MUTTER, 1/4-20, GR5
21 BS7090584YPHFLB, 1/4C X1/2 GR5
22 BS7028786YPBUSHING, SNAP, 1/4
23 BS7076978SMHLN, 1/4C BZ
24 BS7028754YPLINK, SPINDLE BRAKE
