Snapper 7063023 - 42" Dual Idler Deck Kit, Rear-Engine Rider RAILS, LIFT ARMS, CAM LIFT Ricambi

RAILS, LIFT ARMS, CAM LIFT 7063023 - Snapper 42" Dual Idler Deck Kit, Rear-Engine Rider

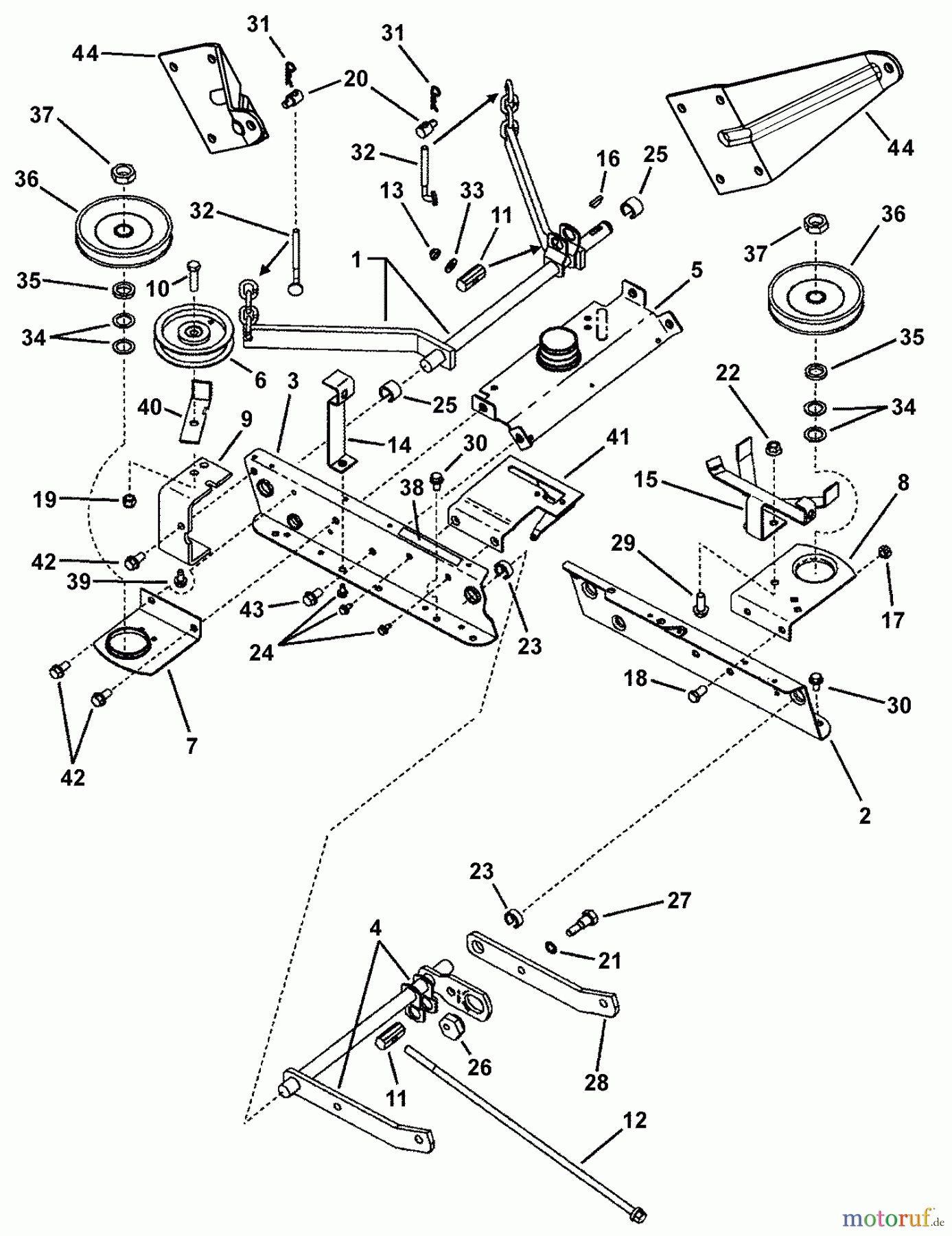

Snapper Zubehör. Rasenmäher 7063023 - Snapper 42
PosizioneArticolo numeroDescrizione
1 BS7041248YPWELD, LIFT, REAR
2 BS7073269YPHOLM, DECK LIFT, LINKS
3 BS7036430YPFUHRUNGSSCHIENE RE.
4 BS7041578YPWELD, FRONT LIFT ARM
5 BS7040502YPWELD, TOP BRACE
6 BS7018574SMSPANNROLLE FLACH 4.12
7 BS7034759YPBRACE, SPINDLE, RH
8 BS7038096YPBRACE, SPINDLE, LH
9 BS7034763YPBRKT, BRACE / IDLER M
10 BS7091497SMSECHSK.SCHR.3/8CX1-1/2GR
11 BS7034213YPACHS, VERSTELLUNG
12 BS7027944YPROD, LEVELING
13 BS7090499YPHTLN, 3/8C GR.C ZP
14 BS7034857
15 BS7042613
16 BS7013861YPKEY, WOODRUFF, 3/16X7
17 BS703347MUTTER, 3/8-16
18 BS703237CAPSCREW, 3/8-16X.75
19 BS703117MUTTER
20 BS7028200SMSICHERUNGSSTIFT
21 BS703930WASHER, INT LCK, 3/8
22 BS703333MUTTER, 3/8-16
23 BS7012067YPRING, HEBEARM VORN
24 BS7090858YPMUTTER, 5/16-18X1/2 SELBSTS.
25 BS7012068YPRING, HEBEARM HINTEN
26 BS7015447YPEXCENTER, EINSTELLUNG
27 BS7015495YPBOLZEN
28 BS7032997YPAUSLEGER, FRONTLIFT
29 BS7027198YP(C) HFLB, 3/8C X1 YZ
30 BS7090606SMHFLB, 5/16C X5/8 ZP
31 BS703300PIN, 3/32 X 1.6
32 BS703827ROD, ADJUSTER
33 BS703878WASHER, FLAT
34 Snapper FW, .77X1.13X.06BS7010935SMFW, .77X1.13X.06
35 BS7014526YPSPACER, 1.125 OD X .7
36 BS7014532YPROLLE, 5" OD
37 BS7074467SMSECHSK.MUTTER, 3/4F GR8
38 BS7073066YPDECAL, BLADE ENGAGEME
39 BS703949SCHRAUBE, 5/16-18.625
40 BS7032368YPBELT GUIDE, CLEAR
41 BS7600140YPKIT, CLUTCH PLATE
42 BS7090815YPSCHRAUBE, 3/8-16 X 3/4
43 BS7091198SMHWST, 3/8CX5/8BP
44 BS7034299YPKOTFLUGEL, HINTEN
