Snapper 7063023 - 42" Dual Idler Deck Kit, Rear-Engine Rider DECK COVER, BELT, BLADE BRAKE Ricambi

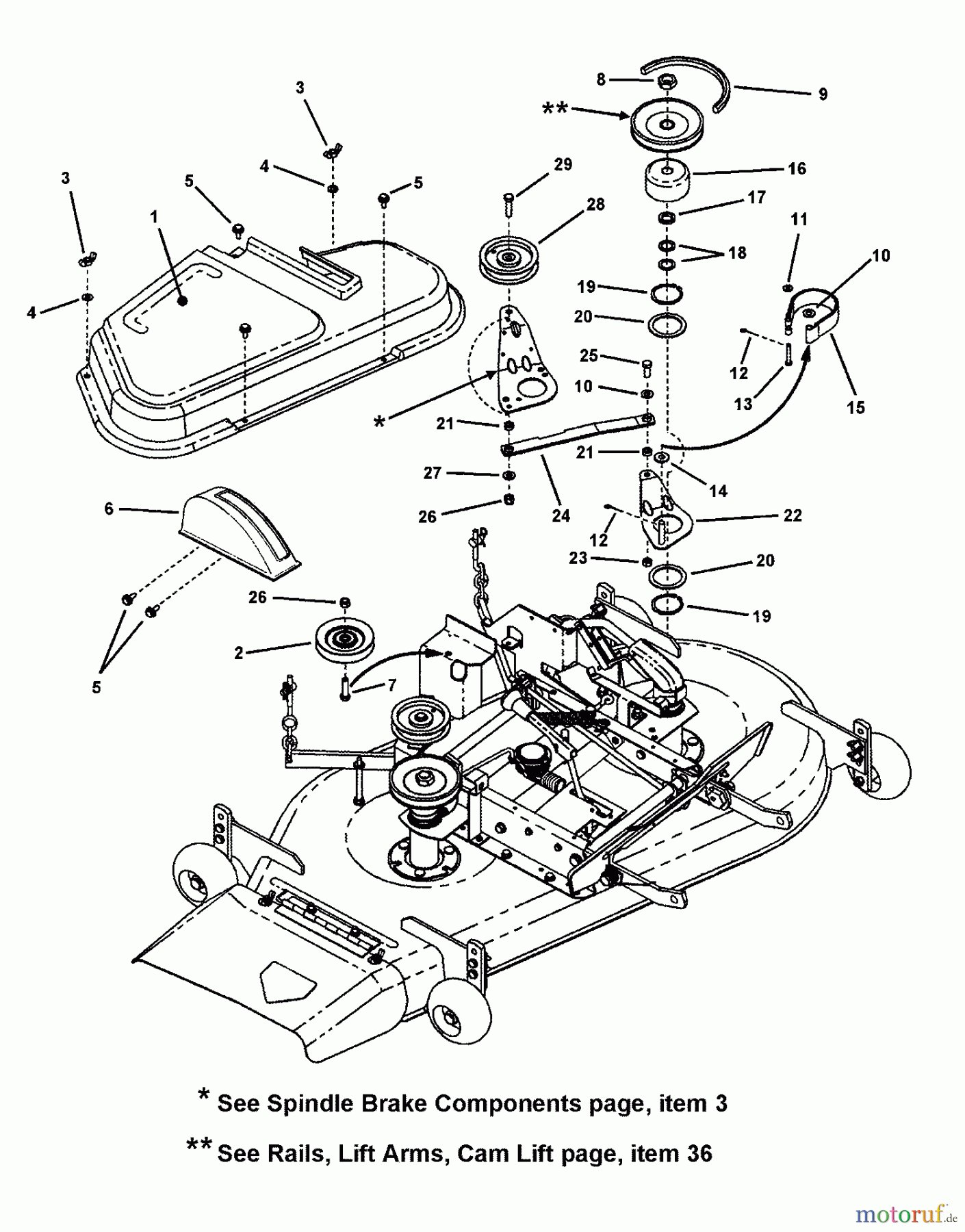

DECK COVER, BELT, BLADE BRAKE 7063023 - Snapper 42" Dual Idler Deck Kit, Rear-Engine Rider

Snapper Zubehör. Rasenmäher 7063023 - Snapper 42
PosizioneArticolo numeroDescrizione
1 BS7043834YPCOVER, BELT, 42 RER
2 BS7029624YPPULLEY, IDLER, SEAM
3 BS7091537YPWLN, 5/16C YZ
4 BS703350U-SCHEIBE, 5/16
5 BS703456BOLZEN, 1/4-20X5/8, GR5
6 BS7027921YPCOVER, QUADRANT
7 BS7091497SMSECHSK.SCHR.3/8CX1-1/2GR
8 BS7074467SMSECHSK.MUTTER, 3/4F GR8
9 BS7028784YPBELT, 42 RER 5L
10 BS703878WASHER, FLAT
11 BS7091294
12 BS703312PIN, COTTER, 3/32X.75
13 BS7014304YPLAGERBOLZEN, 1/4X1-5/8
14 BS7014314YPDISTANZRING, 39X1.0X 31
15 BS7600133YPKIT, BAND, BRAKE
16 BS7035378YPBREMSTROMMEL
17 BS7014526YPSPACER, 1.125 OD X .7
18 Snapper FW, .77X1.13X.06BS7010935SMFW, .77X1.13X.06
19 BS7010740YPSICHERUNGSRING
20 BS7014795YPWASHER, NYLON
21 BS7014527YPDISTANZHULSE, 5/8X1/4
22 BS7047862YPSPOT WELD, BRAKE ARM,
23 BS703458MUTTER, 3/8-24
24 BS7034297YPLINK
25 BS7090160YPHHCS, 3/8F X1
26 BS703117MUTTER
27 BS7090122
28 BS7018574SMSPANNROLLE FLACH 4.12
29 BS7091497
