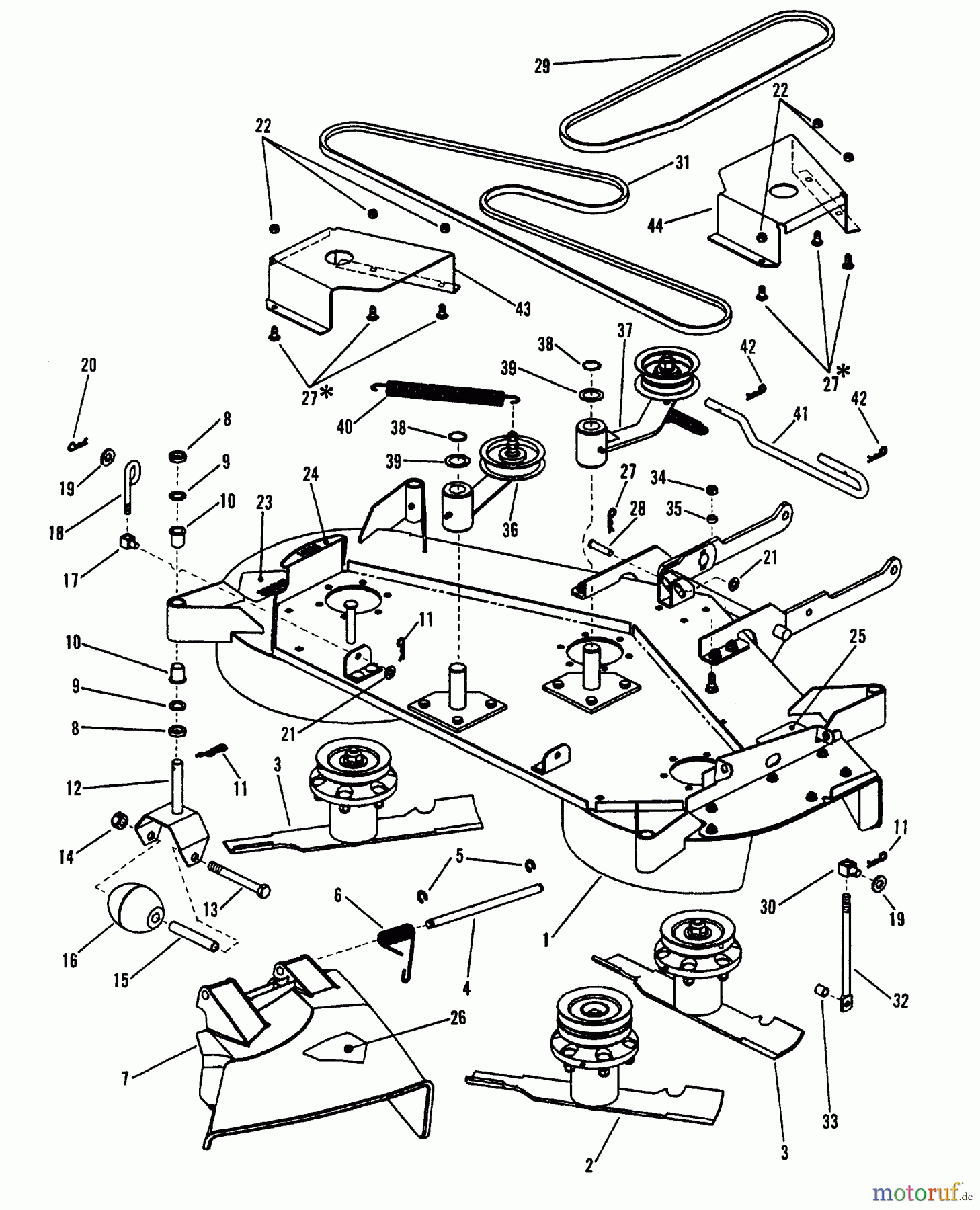

Snapper 7060947 - Bag N-Wagon, 30 Bushel LT180H48FBV2 48" 18 HP Hydro Drive Tractor Series F 48" Cutting Deck, Belts, Brakes Ricambi

48" Cutting Deck, Belts, Brakes LT180H48FBV2 48" 18 HP Hydro Drive Tractor Series F

Snapper Zubehör. Rasenmäher 7060947 - Snapper Bag N-Wagon, 30 Bushel LT180H48FBV2 48
PosizioneArticolo numeroDescrizione
1 BS7063297YPDECK KIT, 48", SER. 4
2 BS7057921
3 BS7057920
4 BS7072044YPPIN, HINGE, YELLOW
5 BS703976RETAINER, RING, 1/2
6 BS7035813SMSPRING, TORSION, SIDE
7 BS7104733YPCHUTE, SIDE DISCHARGE
8 BS7076436YPSPACER, 1.0 OD X.640
9 BS7091628SMFW, .64X.99X.05 YZ
10 BS7043858YPBUSHING, FLANGE
11 BS703300PIN, 3/32 X 1.6
12 BS7046302YPBRKT / SHAFT
13 BS7090993YPHHCS, 1/2F X4-1/2
14 BS7090266YPHCLN, 1/2F GR5 ZP
15 BS7046301YPSLEEVE, CASTER WHEEL
16 BS7073142YPROLLER, DECK, BLACK
17 BS7024607YPSWIVEL, BRAKE LINK, P
18 BS7046790YPROD, REAR LIFT, 48 DE
19 BS7091587SMUNTERLAGSCHEIBE, .531X1.062X.1
20 BS7091594SMSICHERUNGSSPLINT 1/2 SELBSTS.
21 BS703878WASHER, FLAT
22 Snapper MUTTER, 5/16-18BS703902MUTTER, 5/16-18
23 BS7013010SMDECAL-DANGER, CUT FIN
24 BS7024431YPDECAL, 48"DECK
25 BS7046720SMDECAL, CHUTE DEFLECTO
26 BS7013010
27 BS703185RHSSNB
28 BS7046491YPCLEVIS PIN, 3/8 X1-5/
29 BS7046926YPRIEMEN,NEBENANTR. 50.65
30 BS7026827YPSWIVEL, LIFT, 1/2-13T
31 BS7028334SMBELT
32 BS7046873
33 BS7023478YPSPACER, .56 OD X .391
34 BS703347MUTTER, 3/8-16
35 BS7024180YPSPACER, .56 OD
36 BS7057923
37 BS7057950
38 BS7012709YPRETAINING RING, 1" OD
39 BS7023747YPBUSHING, MACH, 1
40 BS7029272SMSPRING, IDLER PRIMARY
41 BS7027471YPPIN, DECK HANGER, IMP
42 BS7091596YPHAIR PIN, 0148 X 2.62
43 BS7047086YPCOVER, SPINDLE, LH
44 BS7047087YPCOVER, SPINDLE, RH
