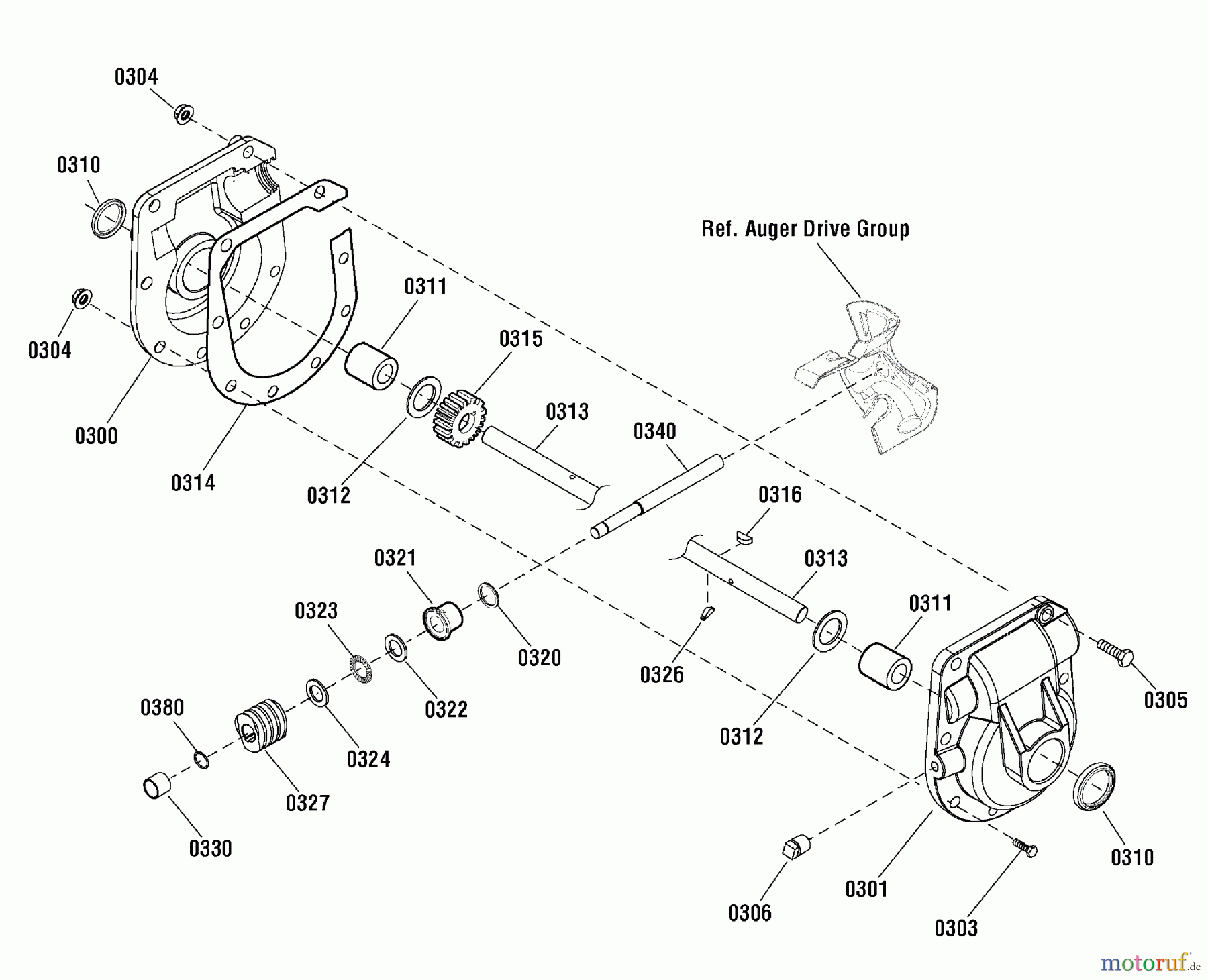

Gear Case Assembly (1753711) CH842100SE (1696230-00) - Canadiana 33" Dual Stage Snowthrower, 21HP (CE) (2012)

Murray Schneefräsen CH842100SE (1696230-00) - Canadiana 33
PosizioneArticolo numeroDescrizione
0300 BS896MAGETRIEBEKASTEN RECHTS 12AUG/10
0301 BS895MAGETRIEBEKASTEN LINKS 12"AUG/
0303 BS910828MASCREW, 5/16-24X1.00 H
0304 BS71100MAMUTTER, 5/16-24 GEZACKT
0305 BS330434MASCREW.31-24X1.50 HHC
0306 BS53749MAROHRSTOPFEN.25-18
0310 Murray SEAL, OIL CR 530552BS780151MASEAL, OIL CR 530552
0311 BS53743MABRNG,SLEV 1X1.25X1
0312 BS53748MAWASHER, FLAT 1.00
0313 BS760411MASHAFT,AUGER OUT 33 H1
0314 BS897MADICHTUNG GETRIEBE
0315 BS1752500YPGEAR, WORM
0316 BS73905MAKEY, WDRF #91 .75DIAX
0320 BS53737MARING, QUAD .924IDX.10
0321 BS583126MABRNG, FL .753IDX1.128
0322 BS48275MAWASHER, FLAT .752X1.
0323 BS50684MABRNG, ROLL .750IDX1.2
0324 BS48275MAWASHER, FLAT .752X1.
0326 BS50795MASCHLUSSEL, HI-PRO 606 .75D
0327 BS53732MAWORMGEAR,1.75OD 1.56L
0330 BS53731MABRNG, SLEV .752IDX .8
0340 BS1751536YPWELLE, IMPELLER
0380 BS1752515YPRING, RETAINING, 3/4
