Murray C950-52435-0 - Craftsman 22" Single Stage Snow Thrower (2004) (Sears) Chute System Ricambi

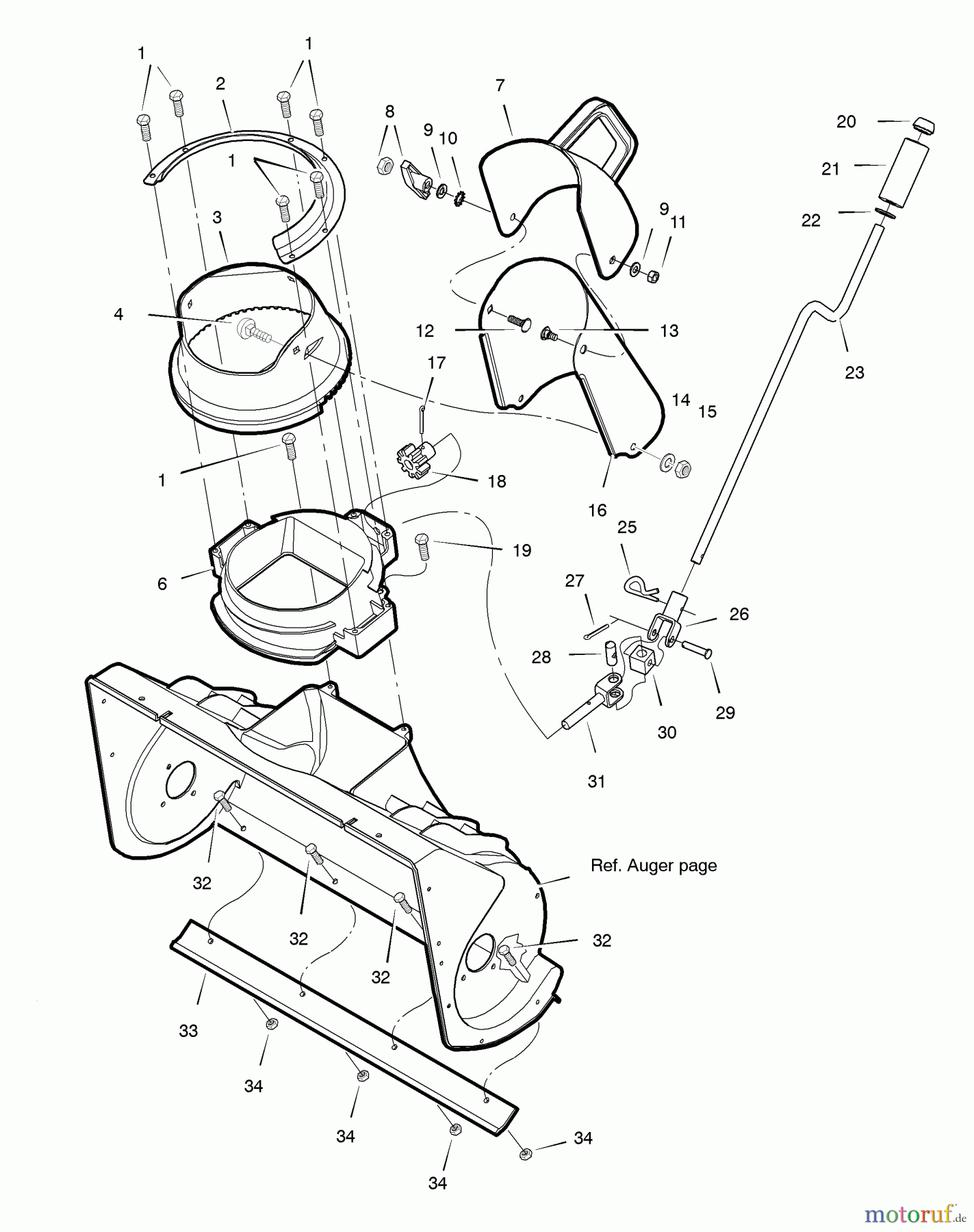

Chute System C950-52435-0 - Craftsman 22" Single Stage Snow Thrower (2004) (Sears)

Murray Schneefräsen C950-52435-0 - Craftsman 22
PosizioneArticolo numeroDescrizione
1 BS313685MASCREW, 1/4-14X .75 SL
2 BS1501853MACHUTE RING RETAINER
3 BS1501864MARING, SCHACHT
4 BS340720MABOLZEN,5/16-18X.75 CARR
6 BS1501848MASTUTZEN, SCHACHT
7 BS1501918MACHUTE, UPPER 22
8 BS1501260MAWINGKNOB.31-18 NUT
9 BS71071MAWASHER, FLAT .349X.69
10 BS019X35MAWASHER.43-0.74 X.04 S
11 BS015X43MANUT .31-18 ST OVERLOC
12 BS002X97MABOLT, CARR 5/16
13 BS1501910MABOLZEN, OBERER SCHACHT
14 BS71072MAUNTERLEGSCHEIBE FLACH
15 BS71038MANUT.31-18 HEX NYLOCK
16 BS1501909MACHUTE, LOWER
17 BS579493MAPIN, COTTER .06X .50
18 BS1501067MAGEAR,9 TOOTH 8DP
19 BS313685MASCREW, 1/4-14X .75 SL
20 BS331532MANUT, PUSH, FITS 3/8 D
21 BS57082MAKNOB,SLEEVE.39X2.50 2
22 BS71072
23 BS1501116MACRANK, CHUTE
25 BS1501293MAPIN-HAIR, CHUTE GEAR
26 BS1501075YZMAYOKE ADAPTER ASY
27 BS579493MAPIN, COTTER .06X .50
28 BS578060MAPIN,UNIV JOINT 3/8X1.
29 BS578309MALF GABELKOPFBOLZEN .25DX
30 BS578063MABLOCK,KARDANSTIFT PIVOT
31 BS1501873MASTANGE, UNTEN KURBEL
32 BS302628MASCHRAUBE, 1/4-20X .75 HH
33 BS1501863MABLADE, SCRAPER
34 BS15X143MAMUTTER,25-20 HEX FLG CTR
