Murray 6240900x43 (1695372) - Yard King 24" Dual Stage Snow Thrower (2007) Handle Assembly Ricambi

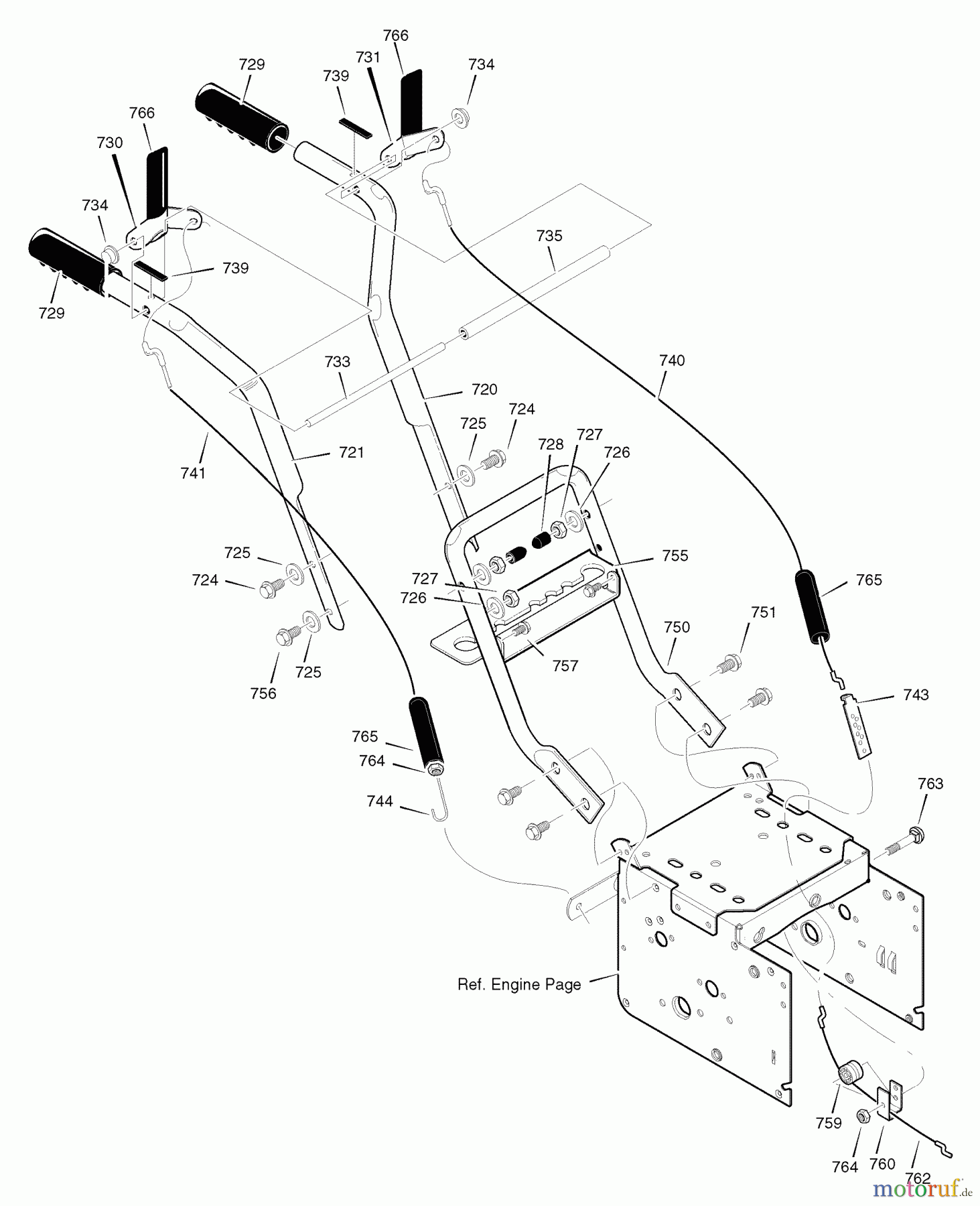

Handle Assembly 6240900x43 (1695372) - Yard King 24" Dual Stage Snow Thrower (2007)

Murray Schneefräsen 6240900x43 (1695372) - Yard King 24
PosizioneArticolo numeroDescrizione
720 BS1501205E701MAHNDL,UPR P3 W/DECO LH
721 BS1501206E701MAGRIFF,OBEN P3 MIT DECO RECHTS
724 BS11234MASCREW.31-18X2.75 HHCS
725 BS71071MAWASHER, FLAT .349X.69
726 BS71060MAWASHER, SPTLK .31X.58
727 BS15X144
728 BS11261MASTOP, RED, PLASTIC
729 BS337399MAHANDGRIFF FINGER 1
730 BS337816E701MALEVER ASY,CTRL P3 RH
731 BS337815E701MAHEBEL ASY,STEUER P3 LINKS
733 BS337381MAROD,PIVOT CTRL
734 BS761105MADRUCKMUTTER, 1/4" SCHWER
735 BS337373MASPACER,HANDLE
739 BS4049MABUMPER, RECT W/FLAT T
740 Murray KABEL,FR-DR P1,P2,P3,BS1501123MAKABEL,FR-DR P1,P2,P3,
741 BS761872MACABLE,AUGER 24.50 P3-
743 BS313441MABRACKET, CABLE ADJ BL
744 BS1673MAKUPPLUNGSSCHRAUBENFEDER
745 BS15X145MAMUTTER,HEX 1/4-20 NYLOCK
750 BS339541E701MAGRIFF,LWR 1.00D P1/2/3
751 BS25X021MASCREW.31-18X0.75 WAHH
755 BS337407E701MABRKT,GEAR SELECT P123
756 BS6751MASCREW, 5/16-18X2.00
757 BS310169MASCREW, 1/4-20X .63 WA
759 BS579860MASPULENKABEL,SCHRAUBE CTR
760 BS1501059YZMABRKT,CABLE SPOOL
762 BS1501122MACABLE,FR DRIVE LOWER
763 BS001798MASCHRAUBE.25-20X1.50 HHC
764 BS15X145MAMUTTER,HEX 1/4-20 NYLOCK
765 BS308146MABOOT, CLUTCH SPRING
766 BS337380MAKUPPLUNGSHANDGRIFF B
