Murray 1696281-00 - Brute 27" Dual Stage Snowthrower, 11.5HP (2012) Engine & Frame Group (2990818) Ricambi

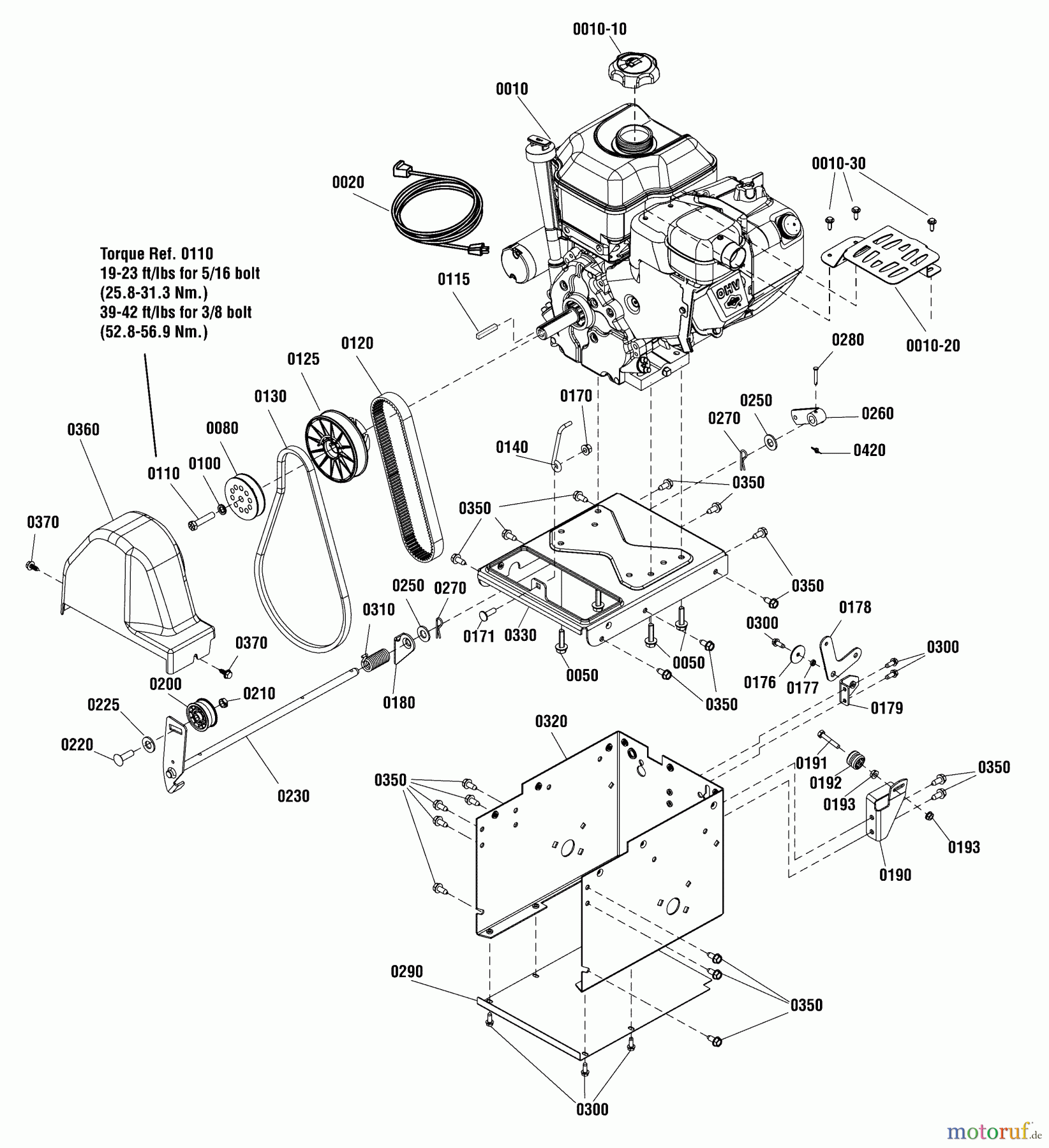

Engine & Frame Group (2990818) 1696281-00 - Brute 27" Dual Stage Snowthrower, 11.5HP (2012)

Murray Schneefräsen 1696281-00 - Brute 27
PosizioneArticolo numeroDescrizione
0010 BS15C114-0153-F8
0010-10 BS792647KRAFTSTOFFTANKDECKEL
0010-20 BS797003SCHALLDAMPFERSCHUTZ
0010-30 BS699854SCHRAUBE
0020 Murray LEINE, STARTER MOTORBS6219MALEINE, STARTER MOTOR
0050 BS75246GSKABELBINDER
0080 BS1737509YPRIEMENSCHEIBE
0100 BS703116LCKWSHR
0110 BS1750393YPHUTMUTTER
0115 BS2157427SMKEIL .187
0120 BS1737220YPKEILRIEMEN, MULTI SPEED
0125 BS1733968YPSEILSCHEIBE KOMPL.
0130 BS585416MABELT
0140 BS1737377YPSTOP, ANTR.RIEMEN
0170 BS703222MUTTER, 5/16-18
0171 BS1931335SMBOLT-RD HD SH SQ NK 5
0176 BS703136U-SCHEIBE
0177 BS703124DISTANZSTUCK
0178 BS1737329YPUMLENKHEBEL
0179 BS1737328AYPHALTER, UINTEN SCHW.
0180 BS1737297YPHALTER, MESSERAUFN.
0190 BS1737347AYPHALTER, LEITRAD
0191 BS703234UBERWURFMUTTER, 1/4-20X1.5
0192 BS579860MASPULENKABEL,SCHRAUBE CTR
0193 BS703233MUTTER, 1/4-20, GR5
0200 Murray PULLEY, IDLERBS1502120MAPULLEY, IDLER
0210 BS703230MUTTER, 3/18-16, GR2
0220 BS703227BOLZEN, 3/8-16 X 1.25
0225 BS1670971SMWASHER, THRUST, .562
0230 BS1737296YPSTANGE LEITROLLE
0250 BS1960027SMABZIEHER-SCHEIBE
0260 BS1733451SMARM - CONTROL
0270 BS703300PIN, 3/32 X 1.6
0280 BS703313PIN, CLEVIS, ZINC
0290 BS1737221AYPPANEL, BODEN
0300 BS703054SCHRAUBE, 1/4-20X0.625
0310 BS1737350YPFEDER
0320 BS1737106ZYPRAHMENBOX
0330 BS1754138BSYPPLATE, ENGINE
0350 BS703228SCHRAUBE, 5/16-18 X .75
0360 BS1750551YPANTRIBSRIEM.VERKLEID.
0370 BS1751355YPSCREW, 1/4-20 X 3/4
0420 BS7023590SM
