Murray 1130SE (LP1695442) - John Deere 30" Dual Stage Snow Thrower (2008) Auger Housing and Chute Group - 30" (2987766) Ricambi

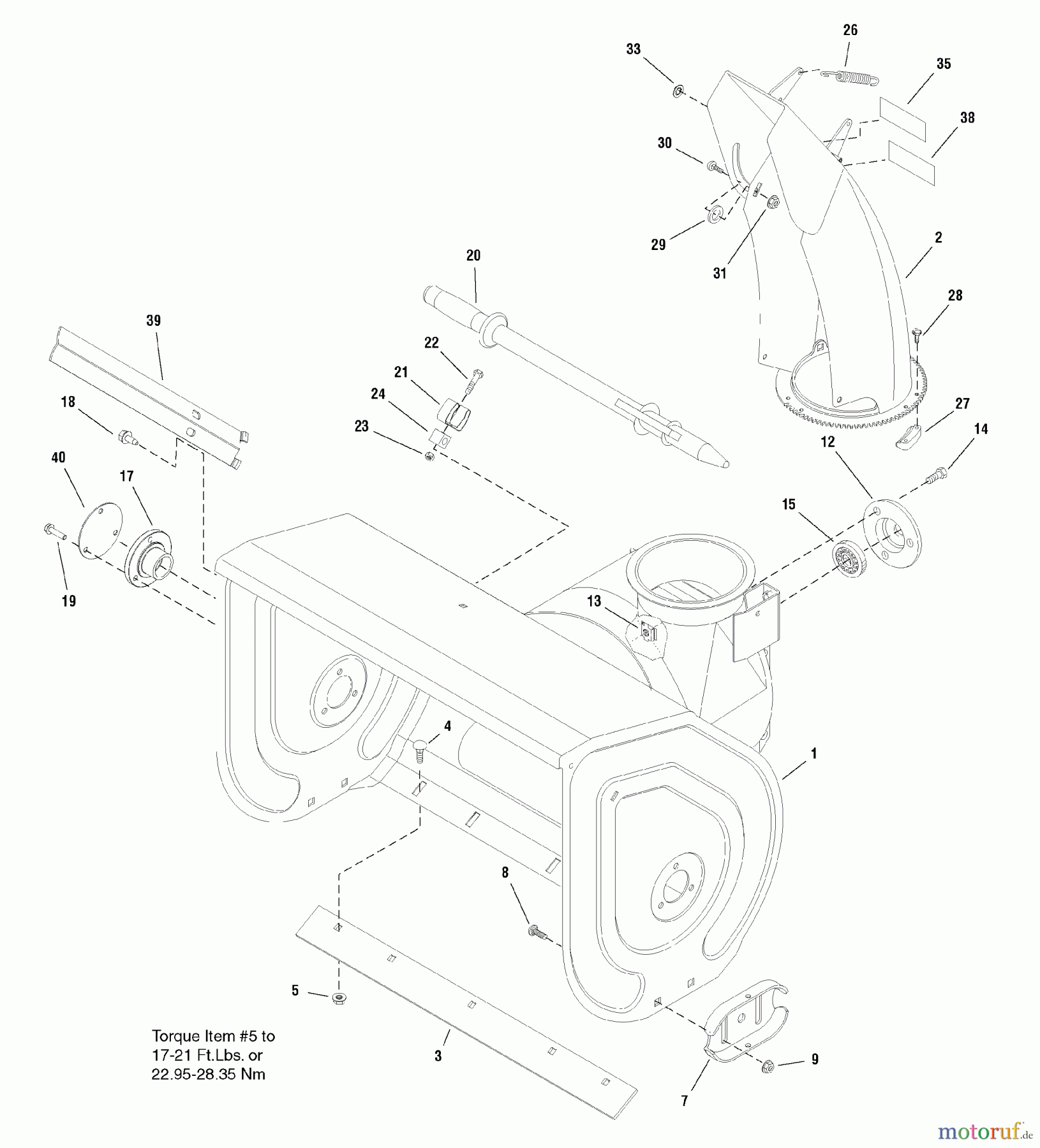

Auger Housing and Chute Group - 30" (2987766) 1130SE (LP1695442) - John Deere 30" Dual Stage Snow Thrower (2008)

Murray Schneefräsen 1130SE (LP1695442) - John Deere 30
PosizioneArticolo numeroDescrizione
1 BS1734742FSMAUGER HOUSING, 30"
2 BS1732744FSMCHUTE & DEFLECTOR
3 BS1732385ASMBLADE, SCRAPPER
4 BS1960699SMBOLT-RD HDSQNK
5 BS1935048SMNUT - SCRAPPER BLADE
7 BS1727854ASMSKID SHOE (BLACK)
8 BS1960711SMBOLT - SKID SHOE
9 BS1960687SMNUT - SKID SHOE
12 BS1665982SMBEARING RETAINER - PL
13 BS1930659SMRETAINER, NUT
14 BS1960738SMSCHRAUBE - HEX
15 BS2108202SMBEARING, BALL
17 BS1733103SMBEARING - AUGER
18 BS1664847SMSCHRAUBE
19 BS1931202SMSCHRAUBE-HEX WSHR HD TAP
20 BS1733209SMSTICK, CLEAN OUT W/BRUSH
21 BS1501672MACLIP,RETAINER YZ
22 BS2860604SMSCHRAUBE - HEX WASHER HD
23 BS1933896SMNUT - HEX LOCK
24 BS578063MABLOCK,KARDANSTIFT PIVOT
26 BS1733455SMSPRING
27 BS7011938SMRETAINER, SPOUT
28 BS1960001SMSCREW, SELF TAPPING
29 BS2860210SMWASHER, NYLON
30 BS1931333SMBOLT
31 BS1960686SMNUT, HEX
33 BS1932718SMNUT-PUSH FOR .312 DIA
35 BS1734738SMDECAL, HINGE SMALL
38 BS1734739SMDECAL, HINGE LARGE
39 BS1733102ASMCUTTER-DRIFT 12GA W/T
40 BS1734932ASMCOVER, BUSHING
