Murray EZT2042 (2691041-02) - 42" Zero Turn Rider, 20HP (2013) Electrical Group (2990150) Ricambi

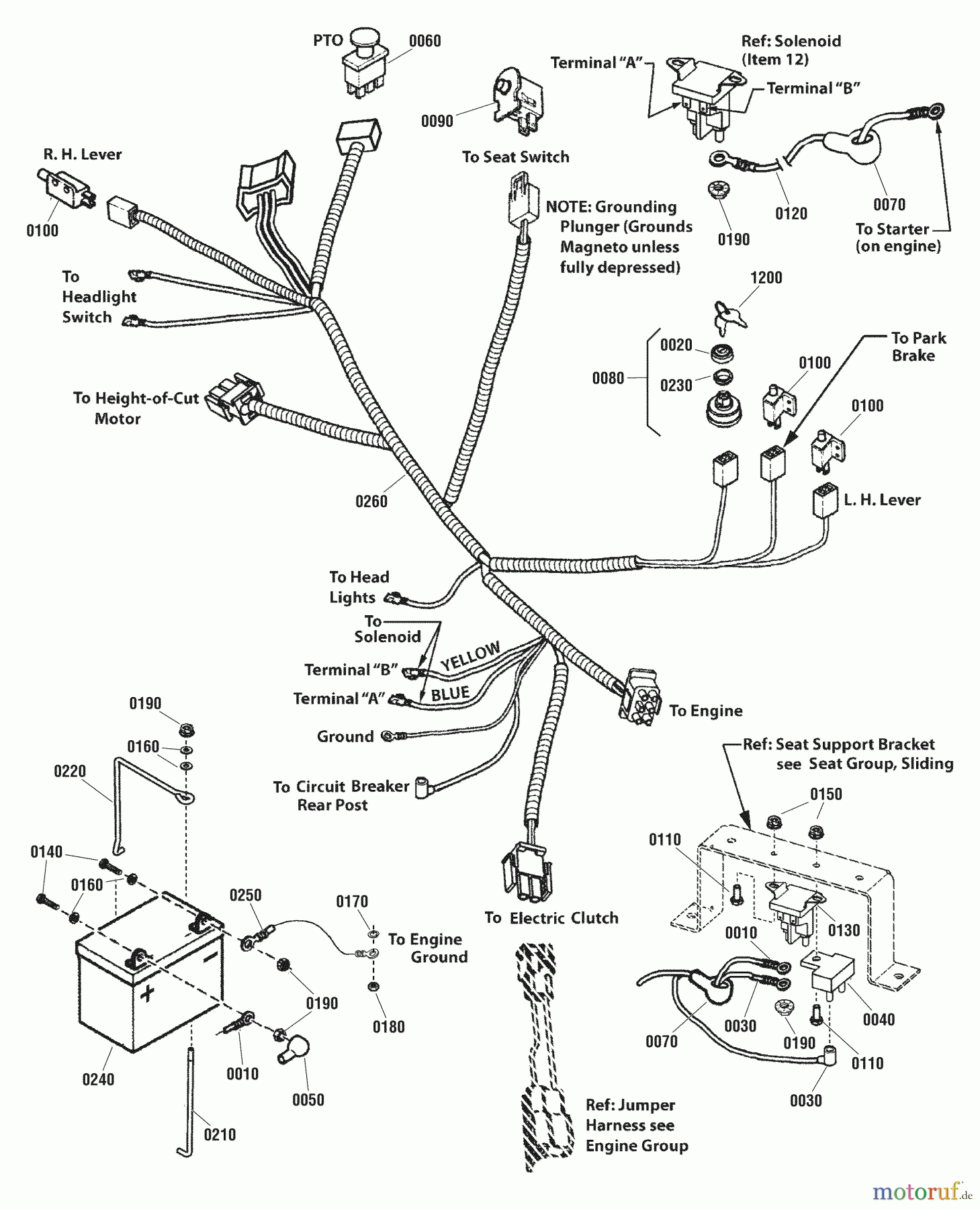

Electrical Group (2990150) EZT2042 (2691041-02) - Murray 42" Zero Turn Rider, 20HP (2013)

Murray Nullwendekreismäher, Zero-Turn EZT2042 (2691041-02) - Murray 42
PosizioneArticolo numeroDescrizione
0010 BS024X31MABATTERIEKABEL 8GA R
0020 BS091488MACAP, IGNITION SWITCH
0030 BS1665237SMKABEL- 12GA 05.9
0040 BS1665238SMBREAKER-CIRCUIT
0050 BS1677296SMSCHUTZHULLE BATTERIE
0060 BS1722887SMSWITCH-PTO PUSH
0070 BS1724588SMVERKLEIDUNG-ANSCHLUSS ROT
0080 BS1737853YPZUNDSCHALTER
0090 BS7023354YPSWITCH, SEAT
0100 BS7023355YPSWITCH, DPDT
0110 BS7090072SMHHCS, 1/4C X5/8 GR5 Z
0120 BS7042956SM
0130 BS7075622SMSOLENOID
0140 BS7090072SMHHCS, 1/4C X5/8 GR5 Z
0150 BS7090372SMSECHSHANTM.SELBSTSICH.
0160 BS7091294SMFW, .28X.63X.065 YZ
0170 BS7091315SMSLW, .32X.58X.08 YZ
0180 BS7091511SMMUTTER, 5/16C GR5 YZ
0190 BS7091584SMHFLN, 1/4C YZ
0210 BS7100308SMHOLD DOWN, BATTERY
0220 BS7100309SMBRKT, BATTERY
0230 BS7100329YPNUT, 5/8"-32 E-START
0240 BSEingangswelle UE 600
0250 BS7100636SMCABLE, BATTERY, NEGAT
0260 BS7103412YPHARNESS, WIRING, ZT
1200 BS1737836YPKEYS, BLISTER PACK
