Murray 107.277700 (2277700) - Craftsman ZT 7000, 18HP Hydro w/50" Mower Deck (2004) Frame, Body & Seat Group (986460) Ricambi

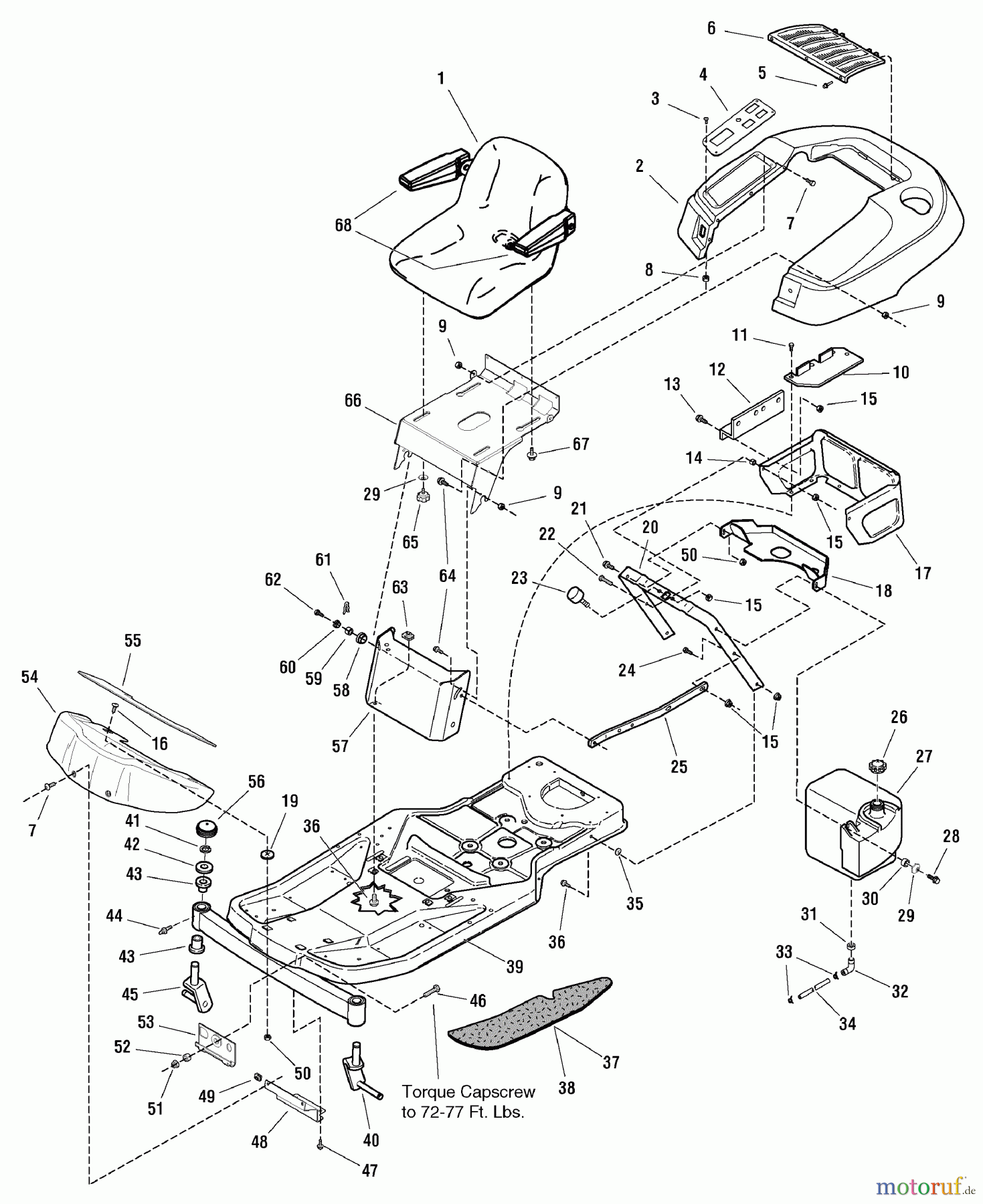

Frame, Body & Seat Group (986460) 107.277700 (2277700) - Craftsman ZT 7000, 18HP Hydro w/50" Mower Deck (2004)

Murray Nullwendekreismäher, Zero-Turn 107.277700 (2277700) - Craftsman ZT 7000, 18HP Hydro w/50
PosizioneArticolo numeroDescrizione
1 BS1726018SMSITZ KOMPL.
2 BS1726305SM
3 BS1722293SMKOPFSCHRAUBE
4 BS1726369SM
5 BS1673320SMPOPNIET 188D. 617L
6 BS1708504SM
7 BS1960715SMSCHRAUBE - TRUSS HD
8 BS1920397SMNUT - HEX LOCK
9 BS1960694SMNUT-HEX FLANGE 1/4-2
10 BS1716027SMBATTERIEBLECH. 075TH
11 BS1925003SMSCREW-HEX WSHR HD TAP
12 BS1715961SMSUPPORT-RESERVOIRS ZT
13 BS1925205SMCAPSCREW
14 BS1673796SMDISTANZSTUCK-0328IDX0.6250
15 BS1931277SMMUTTER - HEX
16 BS1931317SMBOLT - RD HD
17 BS1715962ASMSCHUTZBLECH HINTEN 20GA ZTR
18 BS1726417SMDUCT-AIR INLET 20GA Z
19 BS1960518SMNUT-PUSH FOR .250 DIA
20 BS1725982SMSITZDECKAUFNAHME 25
21 BS1923341SMKOPFSCHRAUBE-SECHSK. HD 1/4-2
22 BS1922127SMCAPSCREW-HEX HD 5/16
23 BS1726390SMGUMMIPUFFER 1.50DIA
24 BS1921333SMCAPSCREW - HEX HD
25 BS1708362ASMBRACE-TANK BLACK
26 BS1714020SMCAP-FUEL TANK BLACK P
27 BS1726397SMKRAFTSTOFFTANK NATUR POLY
28 BS1930600SMSECHSKANTSCHR. SCHEIBE HD
29 BS1960606SMFEDERRING
30 BS1710437SMDISTANZBUCHSE-0.328IDXO.4990
31 BS1726400SMBUCHSE
32 BS1674792SMKRUMMER GAS
33 BS2860112SMSCHLAUCHKLEMME 0.500DIA H
34 BS1718678SM
35 BS1933988SMDRUCKMUTTER 312 DIA
36 BS1930591SMSCREW-HEX WZ LOCK FLN
37 BS1728986SMFU?MATTE RECHTS SCHWARZ
38 BS1728987SMFU?MATTE LINKS SCHWARZ
39 BS1729629SM
40 BS1715999SM
41 BS2834712SMRING-E RET EXT # 98 .
42 BS1919394SMWASHER-1.000(1.03IDX1
43 BS1721682SMACHSBUCHSEN VIP
44 BS2821133SMLUBE FITTING, .250 DR
45 BS1715997SM
46 BS1920328SMKOPFSCHRAUBE-SECHSK. 1/2
47 BS1664847SMSCHRAUBE
48 BS1726024ASMHALTER-FU?STUTZE
49 BS1960368SMNUT-SPEED 1/4-20 LUG
50 BS1930641SM
51 BS1930644SMBUNDMUTTER 1/2-1
52 BS1709235SMDISTANZSCHEIBE-0.520IDX0.750O
53 BS1716064ASMFANGHAKEN KOMPL. ZT
54 BS1726025ZSMFU?RASTNEPANEL 18GA Z
55 BS1726306SMFU?MATTE
56 BS1726504SMRADKAPPE 1.5 SCHWARZ
57 BS1725926SM
58 BS1704626SMDISTANZSTUCK-0.765IDX1.250O
59 BS1705249SMDISTANZSTUCK-0.328IDX0.748O
60 BS1705248SMGELENK-HAUBE.328ID.75OD
61 BS1704628SMSCHNELLSPLINT .750DIA
62 BS1960373SMSCHRAUBE - HEX WASHER HD
63 BS1935255SMNUT, SPEED, 5/16-18 L
64 BS1960295SMSCREW-HEX WZ LOCK FL
65 BS1726520SMSCHRAUBE 312-18X
66 BS1725929ASMSITZAUFNAHME 12GA ZT
67 BS1716654SMBOLZEN 5/16-18.0
68 BS1687021SMARMLEHNE KIT-MICHIGAN
