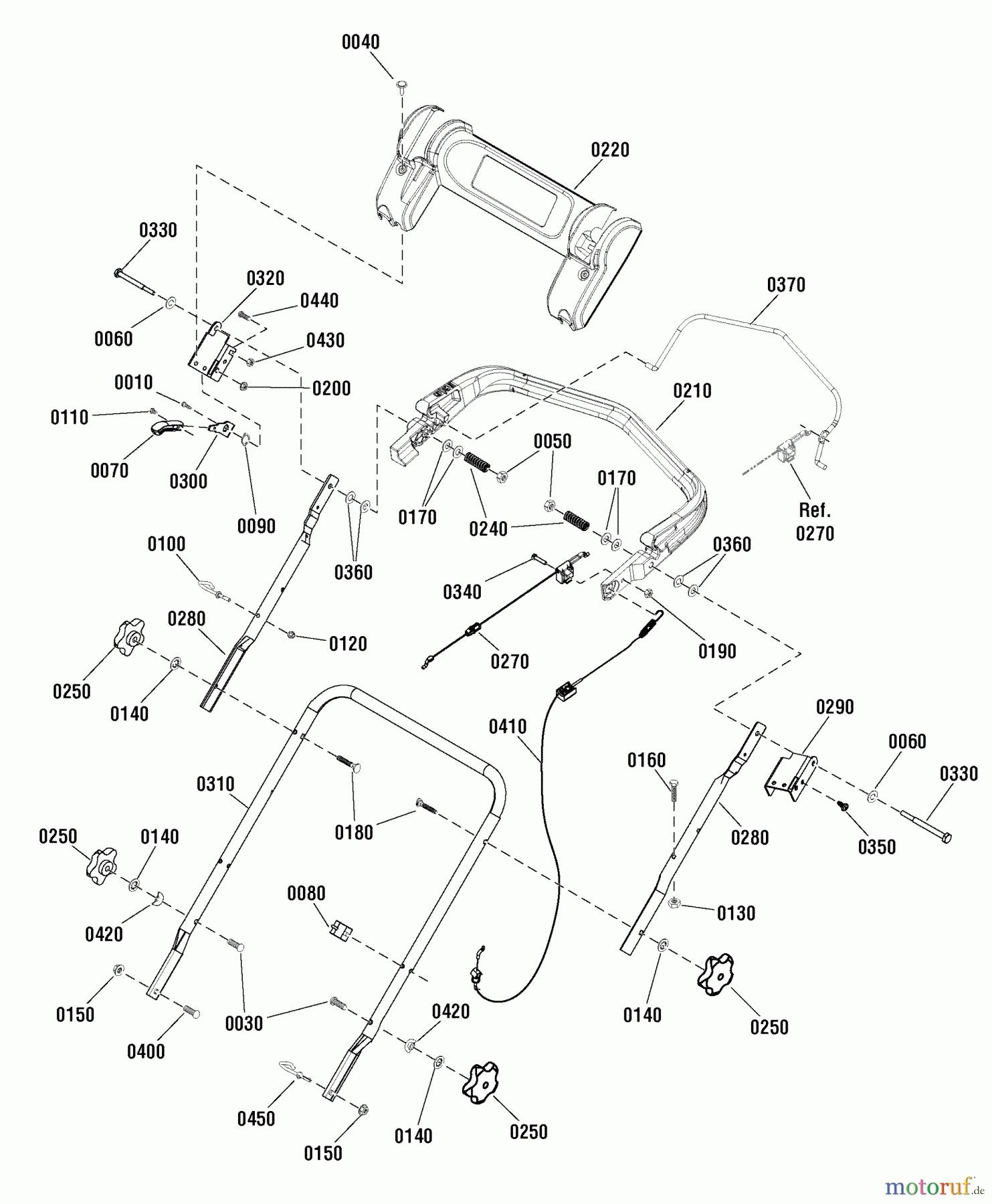

Handles Group (7501542) JS26 (7800807) - John Deere 22" Walk-Behind Mower (2011)

Murray Rasenmäher JS26 (7800807) - John Deere 22
PosizioneArticolo numeroDescrizione
0010 BS1716654SMBOLZEN 5/16-18.0
0030 BS1931337SMBOLT-RD HD SH SQ NK 5
0040 BS1960382YPPOPNIET
0050 BS2860694SM
0060 BS7015686SMWASHER, SHIM, .314X.7
0070 BS7023655YPLEVER, THROTTLE CONT
0080 BS7104614YPKABELANSCHLUSS
0090 BS7026257MAWASHER, .531 X .781 3
0100 BS7028488MAGUIDE, ROPE
0110 BS7071921YPRIVET, PLASTIC SNAP
0120 BS7076978SMHLN, 1/4C BZ
0130 BS7090372SMSECHSHANTM.SELBSTSICH.
0140 BS7090391SMITLW, 5/16
0150 BS7090951SMHCLN, LARGE, 5/16C BZ
0160 BS7091003YPHHCS 1/4C X1-3/4 GR5
0170 BS7091130SMFW, .327X.875X.09 BZ
0180 BS7091189YPBOLT, 5/16-18 X 2 GR2
0190 BS7091290SMHLN, NYLON, #10C YZ
0200 BS7091601SMNUT, FLANGE
0210 BS7101239YPHANDLE, PIVOT, DEERE
0220 BS7104759YPBEDIENKONSOLE UNTER GRIFF
0240 BS7104703YPDRUCKFEDER
0250 BS7102990YPKNOB, HANDLE, 5 PRONG
0270 BS7105033YPCABLE, OPC
0280 BS7300435AYPHANDLE, UP, STRAIGHT
0290 BS7301187AYPBRKT, ROTAT LIMIT, LH
0300 BS7300526AYPHANDLE, LOCK
0310 BS7301182AYPHANDGRIFF, UNTEN
0320 BS7301186AYPBRKT, ROTAT LIMIT, RH
0330 BS7900045YPBOLT, SHOULDER
0340 BS7900080YPSECHSK.SCHRAUBE 10-24 X .87
0350 BS7900067YPSCHRAUBE, 1/4-20X11/16
0360 BS17X169MAUNTERLEGSCHEIBE.377-1-.03 FLT
0370 BS7101322AYPBAIL, PIVOTING HANDLE
0400 BS340720MABOLZEN,5/16-18X.75 CARR
0410 BS7103990YPCABLE, DRIVE, VS FWD
0420 BS880615YPSCHEIBE
0430 BS15X143MAMUTTER,25-20 HEX FLG CTR
0440 BS7090803YPBOLT, 1/4-20X5/8
0450 BS7104761YPKABELSCHUTZ
