Murray JS26 (7800807) - John Deere 22" Walk-Behind Mower (2011) Deck Group (7501597) Ricambi

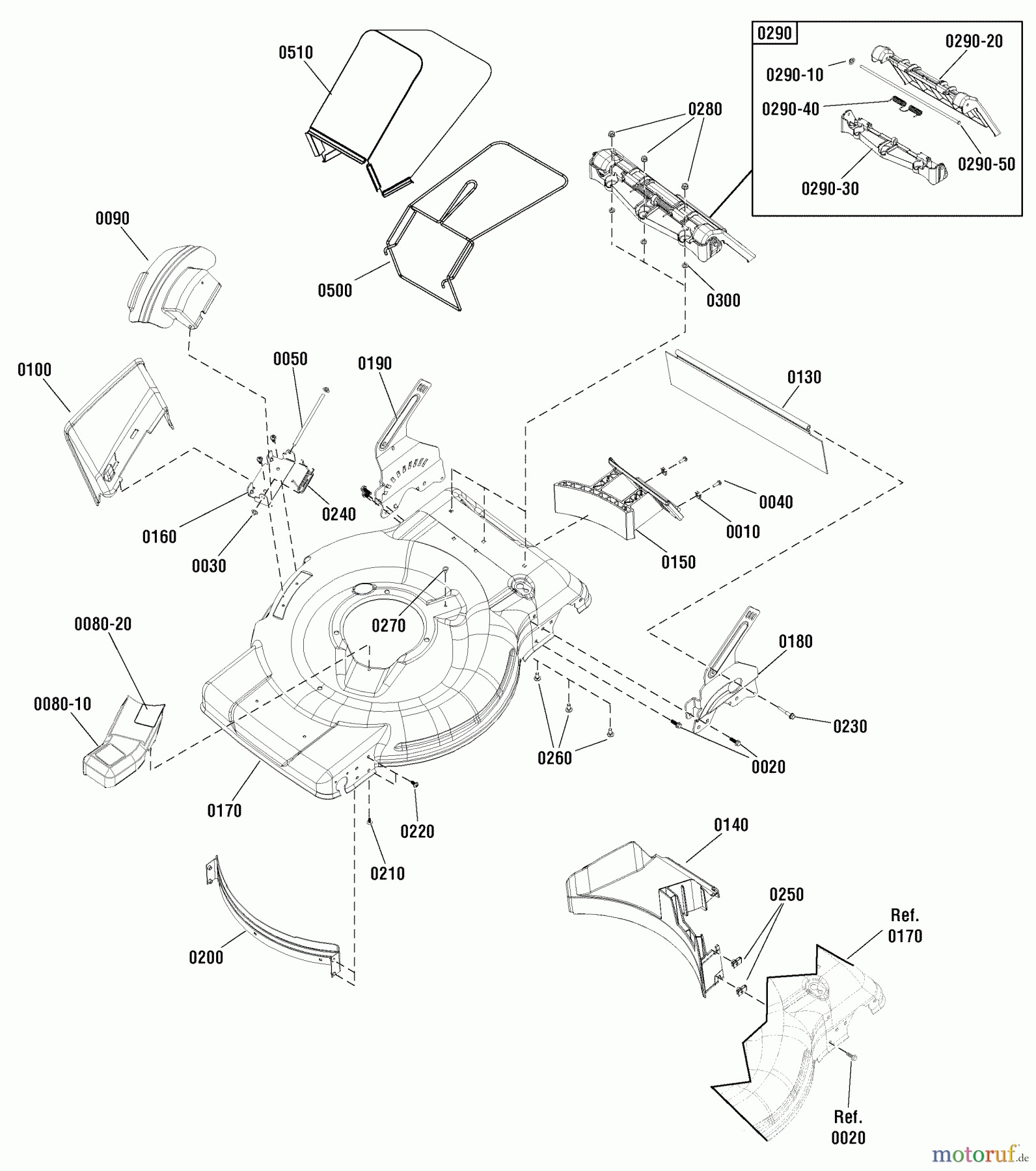

Deck Group (7501597) JS26 (7800807) - John Deere 22" Walk-Behind Mower (2011)

Murray Rasenmäher JS26 (7800807) - John Deere 22
PosizioneArticolo numeroDescrizione
0010 BS1960593SMNUT, RETAINER SPEED#1
0020 BS7090699YPBOLZEN, SECHSKANT BUND 1/4
0030 BS7091020YPPUSHNUT 1/4
0040 BS7091075SMSCHRAUBE, SELF TAPPING
0050 BS7101067YPGESTANGE
0080-10 BS7103297YPCOVER, BELT DRIVE, FR
0080-20 BS7104172YPPATCH, HEAT, BELT CVR
0090 BS7103298YPCOVER, MULCHING
0100 BS7103299YPCHUTE, SIDE DISCHARGE
0130 BS7103323YPGUARD, REAR, 22
0140 BS7103452YPBAFFLE, REAR/FRONT DR
0150 BS7103453YPPLUG, MULCH 22" DECK
0160 BS7300855BMYPHALTER, SCHACHT
0170 BS7300882FYPDECK, 22", FWD
0180 BS7300885AYPBRKT, LOWER HAND LH
0190 BS7300915AYPBRKT, LOWER HAND RH
0200 BS7301020YPFRONTBLECH
0210 BS7900018YPSCREW, ROUND WASHER H
0220 BS7900067YPSCHRAUBE, 1/4-20X11/16
0230 BS7900073YPBOLT, DRAG SHIELD
0240 BS166X38MATORSIONSFEDER
0250 BS7023295SMBUNDMUTTER, 1/4C
0260 BS7090803YPBOLT, 1/4-20X5/8
0270 BS0193X1MAFASTENER-PANEL
0280 BS15X143MAMUTTER,25-20 HEX FLG CTR
0290 BS7501541YPKLAPPE KOMPL. 22 WBM
0290-10 BS7091020YPPUSHNUT 1/4
0290-20 BSEingangswelle UE 600
0290-30 BS7103292YPHINGE, DOOR, REAR DIS
0290-40 BS7103309YPSPRING, REAR DOOR
0290-50 BS7103322YPROD, PIVOT, REAR DOOR
0300 BS1960518SMNUT-PUSH FOR .250 DIA
0500 BS7103305AYPBAG FRAME, RD
0510 BS7103375YPBAG, GRASS, 22" REAR
