Murray EBTPV22675HWEX (7800880) - Brute 22" Self-Propelled Walk-Behind Mower (2012) Handle & Controls Group (7502872) Ricambi

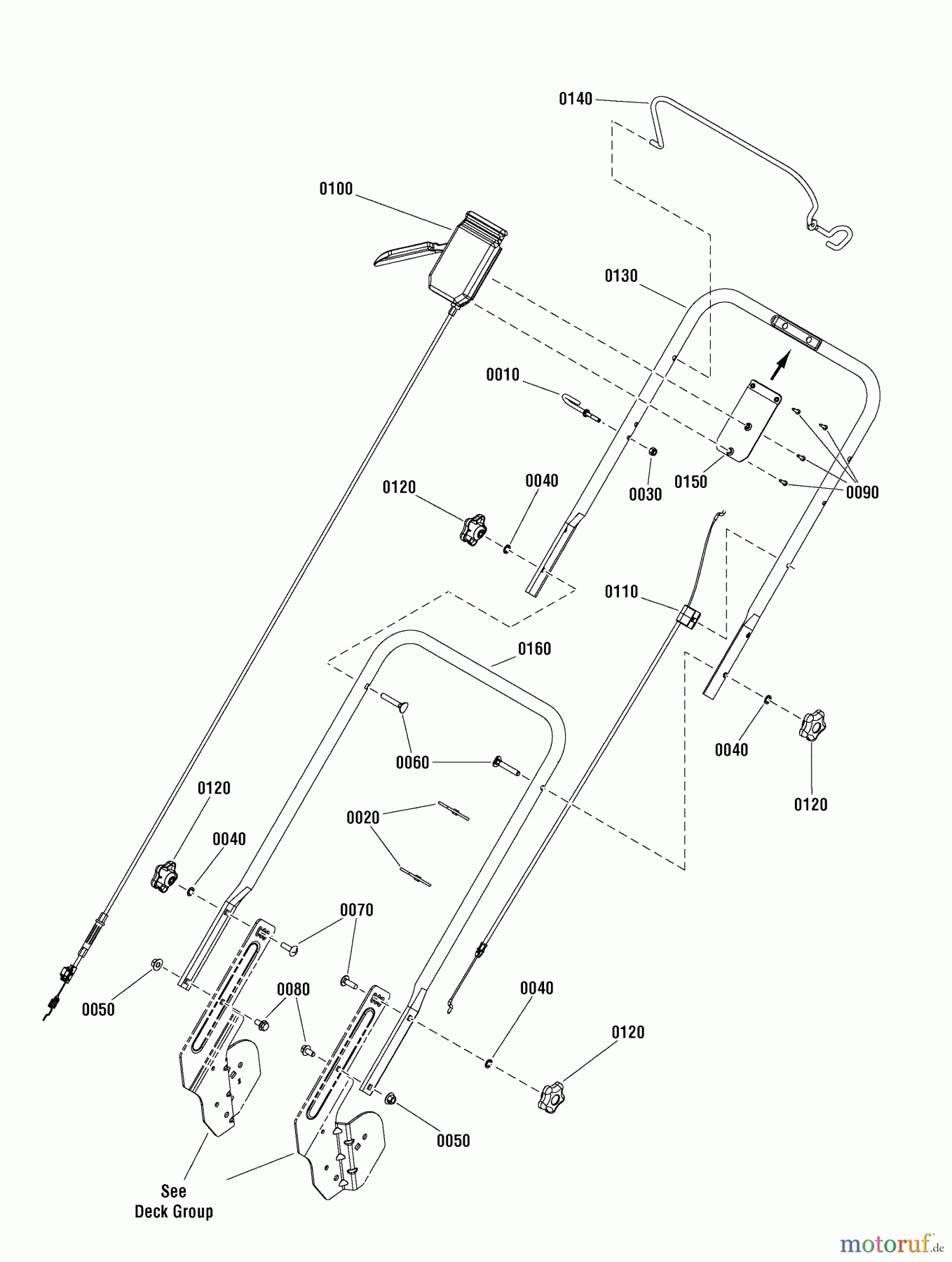

Handle & Controls Group (7502872) EBTPV22675HWEX (7800880) - Brute 22" Self-Propelled Walk-Behind Mower (2012)
| Posizione | Articolo numero | Descrizione | |
| 0010 | BS071530MA | SEILFUHRUNG OBEN | |
| 0020 | BS7024649YP | WIRE TIE, 11 INCH STD | |
| 0030 | BS7076978SM | HLN, 1/4C BZ | |
| 0040 | BS7090391SM | ITLW, 5/16 | |
| 0050 | BS7090951SM | HCLN, LARGE, 5/16C BZ | |
| 0060 | BS7091189YP | BOLT, 5/16-18 X 2 GR2 | |
| 0070 | BS7091714YP | BOLZEN, 5/16-18X1 | |
| 0080 | BS7091811SM | HFLB, 5/16C X5/8 GR5 | |
| 0090 | BS7100225YP | PHTX, #8-16, TWIN HEL | |
| 0100 | BS7105618YP | CONTROL HEAD ASSEMBLY | |
| 0110 | BS7100074YP | KNTROLLKABEL | |
| 0120 | BS7105085YP | KNOB,HANDLE,5 PRONG | |
| 0130 | BS7078247AYP | HANDGRIFF OBEN | |
| 0140 | BS7101675AYP | BUGEL, OPC ANTRIEB | |
| 0150 | BS7300130AMA | CONTROL PANEL PLATE | |
| 0160 | BS7301013AYP | HANDLE, LOWER | |
