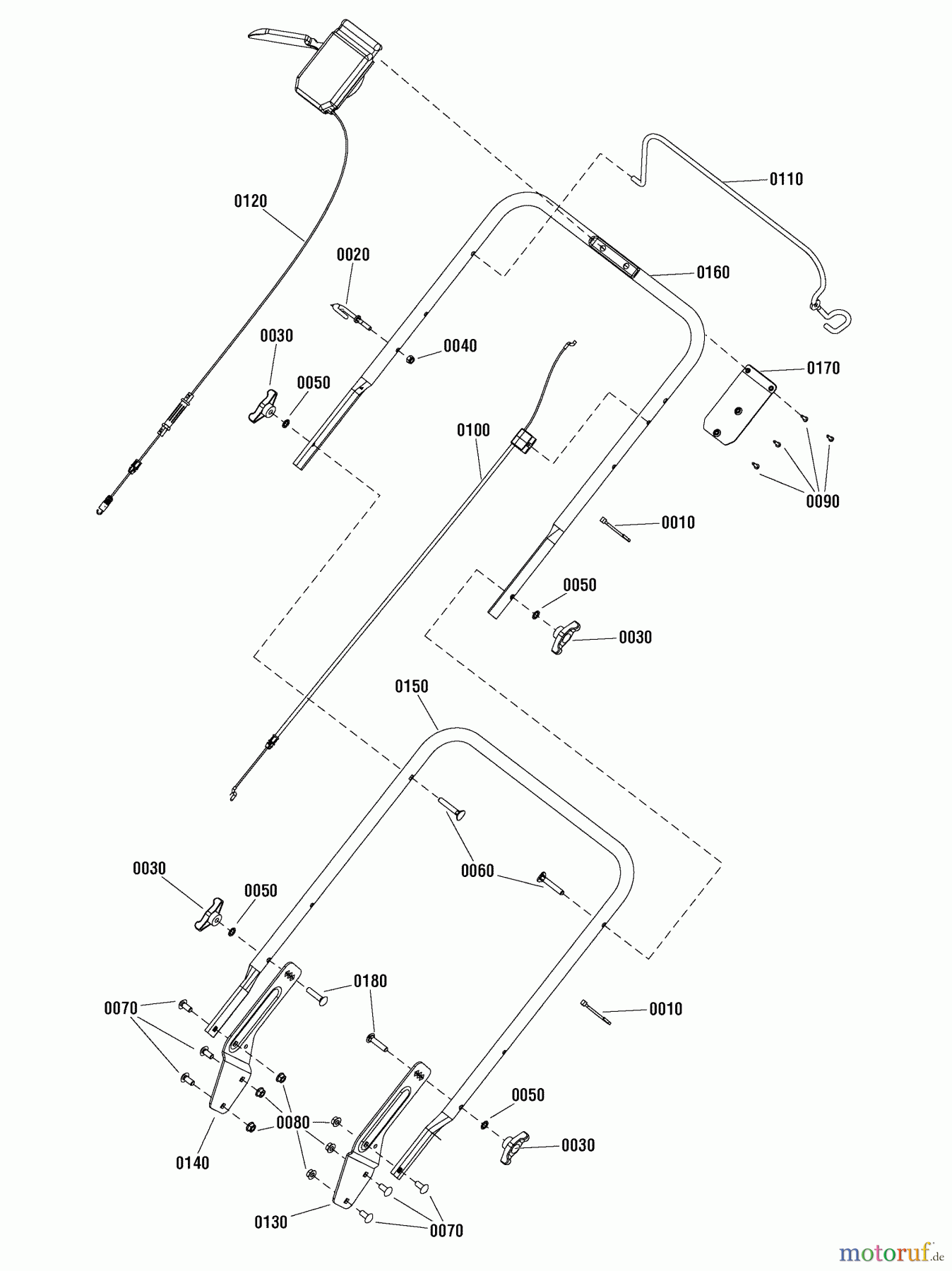

Handle Assembly Group (7502112) CXT21675 (7800816) - Champion CXT21675, 21" Walk-Behind Mower (2011)

Murray Rasenmäher CXT21675 (7800816) - Champion CXT21675, 21
PosizioneArticolo numeroDescrizione
0010 BS7024649YPWIRE TIE, 11 INCH STD
0020 BS7028488MAGUIDE, ROPE
0030 BS7035744YPKNOB, 5/16-18 WING (B
0040 BS7076978SMHLN, 1/4C BZ
0050 BS7090391SMITLW, 5/16
0060 BS7091189YPBOLT, 5/16-18 X 2 GR2
0070 BS7091508SMRHSSNB, 5/16C X3/4 GR
0080 BS7091601SMNUT, FLANGE
0090 BS7100225YPPHTX, #8-16, TWIN HEL
0100 BS7101399YPSICHERHEITSLEITUNG, 21 WBM
0110 BS7101731AMABUGEL, ANTRIEBSBET.
0120 BS7101892MACONTROL HEAD ASSEMBLY
0120-10 BS7101398YPBOWDENZUG-FAHRANTRIEB
0130 BS7300573AYPBRKT, LOW HAND LH
0140 BS7300574AYPBRKT, LOW HAND RH
0150 BS7300592AMAHANDLE, LOWER 21 RD,
0160 BS7300676AMAHANDLE, UPPER, PROPEL
0170 BS7300130AMACONTROL PANEL PLATE
0180 BS1931337SMBOLT-RD HD SH SQ NK 5
