Murray BTXP22675HW (7800802) - Brute 22" Walk-Behind Mower (2011 Handles & Controls Ricambi

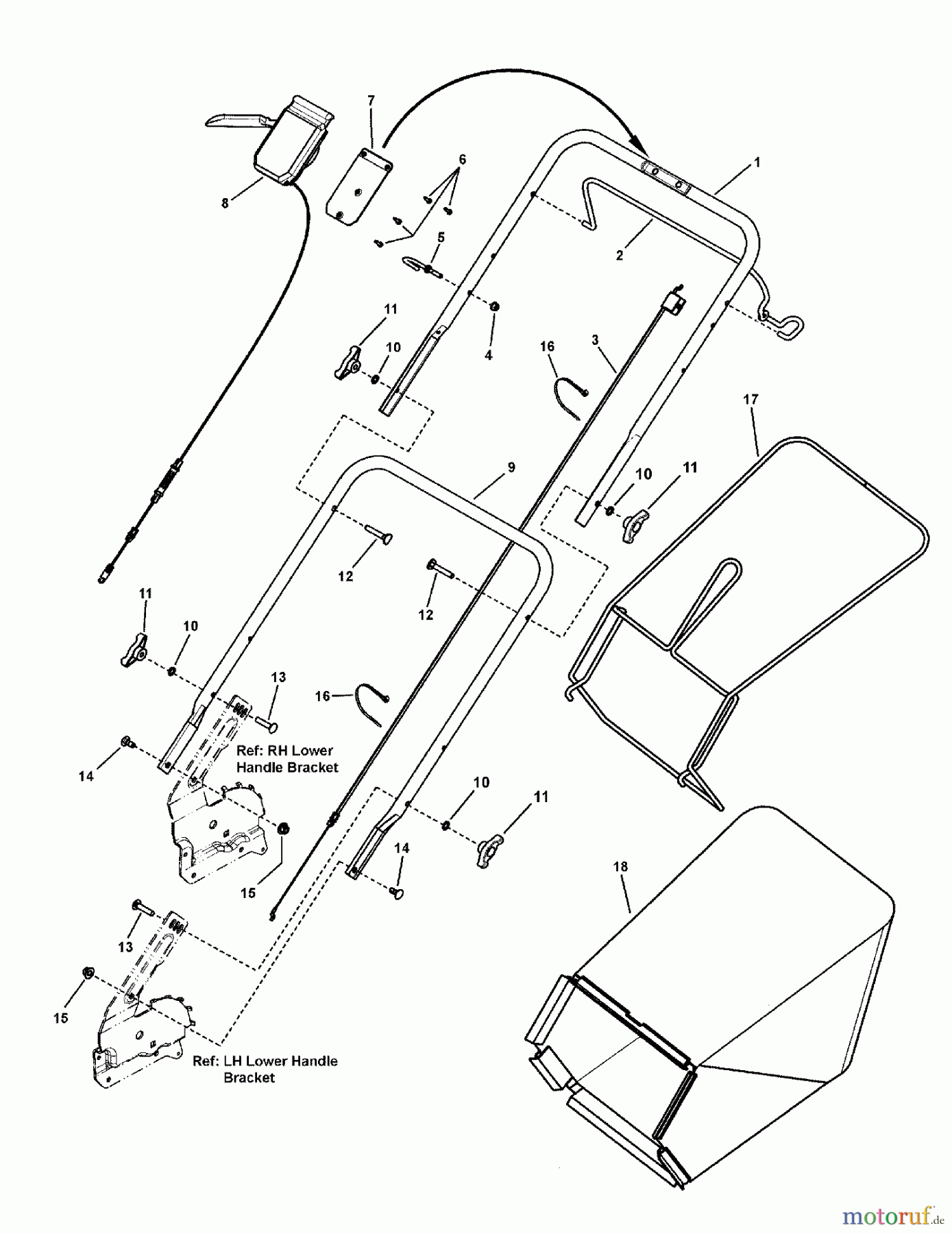

Handles & Controls BTXP22675HW (7800802) - Brute 22" Walk-Behind Mower (2011

Murray Rasenmäher BTXP22675HW (7800802) - Brute 22
PosizioneArticolo numeroDescrizione
1 BS7300676AMAHANDLE, UPPER, PROPEL
2 BS7101731AMABUGEL, ANTRIEBSBET.
3 BS7101395YPCABLE, BAIL, 22 WBM
4 BS2860694SM
5 BS7028488MAGUIDE, ROPE
6 BS7100225YPPHTX, #8-16, TWIN HEL
7 BS7300130AMACONTROL PANEL PLATE
8 BS7103677YPASSEMBLY, CONTROL BOX
9 BS7300592AMAHANDLE, LOWER 21 RD,
10 BS7090391SMITLW, 5/16
11 BS7035744YPKNOB, 5/16-18 WING (B
12 BS7091189YPBOLT, 5/16-18 X 2 GR2
13 BS1931337SMBOLT-RD HD SH SQ NK 5
14 BS340720MABOLZEN,5/16-18X.75 CARR
15 BS7090951SMHCLN, LARGE, 5/16C BZ
16 BS7024649YPWIRE TIE, 11 INCH STD
-- BS7600107YPGRASFANGSACK, 22 KOMPL.
17 BS7103305AYPBAG FRAME, RD
18 BS7103375YPBAG, GRASS, 22" REAR
