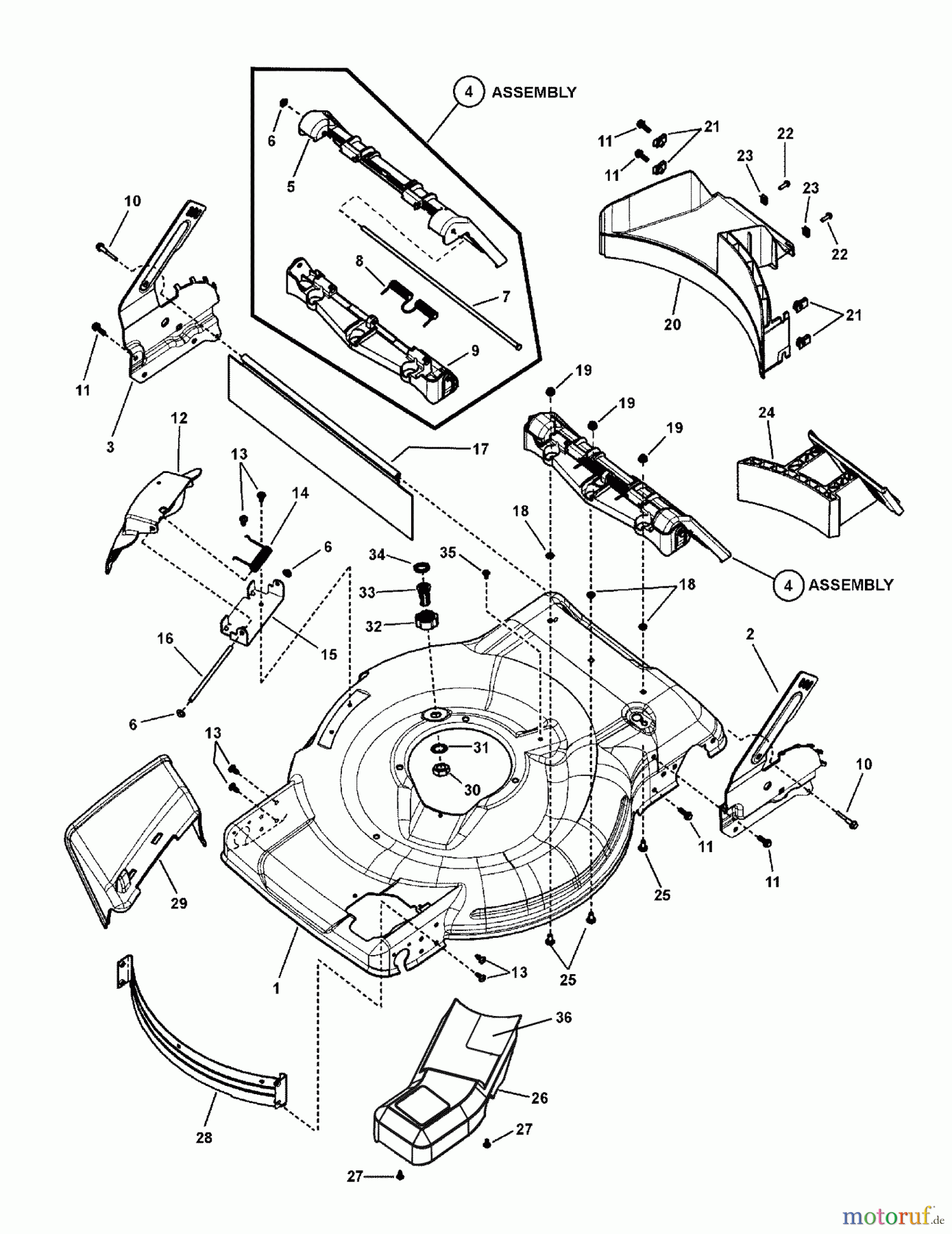

Murray BTXP22675HW (7800802) - Brute 22" Walk-Behind Mower (2011 Deck Group Ricambi

Deck Group BTXP22675HW (7800802) - Brute 22" Walk-Behind Mower (2011

Murray Rasenmäher BTXP22675HW (7800802) - Brute 22
PosizioneArticolo numeroDescrizione
1 BS7301111ZYPDECK, 22 RAD
2 BS7301091AYPHALTER, HANDGRIFF UNTEN LINKS
3 BS7301090AYPHALTER, HANDGRIFF UNTEN RECHTS
4 BS7501541YPKLAPPE KOMPL. 22 WBM
5 BS7103291YP
6 BS7091020YPPUSHNUT 1/4
7 BS7103322YPROD, PIVOT, REAR DOOR
8 BS7103309YPSPRING, REAR DOOR
9 BS7103292YPHINGE, DOOR, REAR DIS
10 BS7900073YPBOLT, DRAG SHIELD
11 BS7090699YPBOLZEN, SECHSKANT BUND 1/4
12 BS7103298YPCOVER, MULCHING
13 BS7900067YPSCHRAUBE, 1/4-20X11/16
14 BS166X38MATORSIONSFEDER
15 BS7300855ZMAHALTER-RAMPE
16 BS7101067YPGESTANGE
17 BS7103323YPGUARD, REAR, 22
18 BS1960518SMNUT-PUSH FOR .250 DIA
19 BS15X143MAMUTTER,25-20 HEX FLG CTR
20 BS7103452YPBAFFLE, REAR/FRONT DR
21 BS7023295SMBUNDMUTTER, 1/4C
22 BS7091075SMSCHRAUBE, SELF TAPPING
23 BS1960593SMNUT, RETAINER SPEED#1
24 BS7103453YPPLUG, MULCH 22" DECK
25 BS7090803YPBOLT, 1/4-20X5/8
26 BS7103297YPCOVER, BELT DRIVE, FR
27 BS7900018YPSCREW, ROUND WASHER H
28 BS7301020ZYPUMLENKBLECH, VORN
29 BS7103299YPCHUTE, SIDE DISCHARGE
30 BS1960716SMMUTTER SELBSTS. 5/8-11
31 BS7090880YPSCHEIBE, 5/8
32 BS7103919YPKUPPELSCHLAUCH
33 BS7103804YPADAPTER, AUSWASCHANSCHL.
34 BS7103957YPDICHTUNG, SCHLAUCH
35 BS0193X1MAFASTENER-PANEL
36 BS7104172YPPATCH, HEAT, BELT CVR
