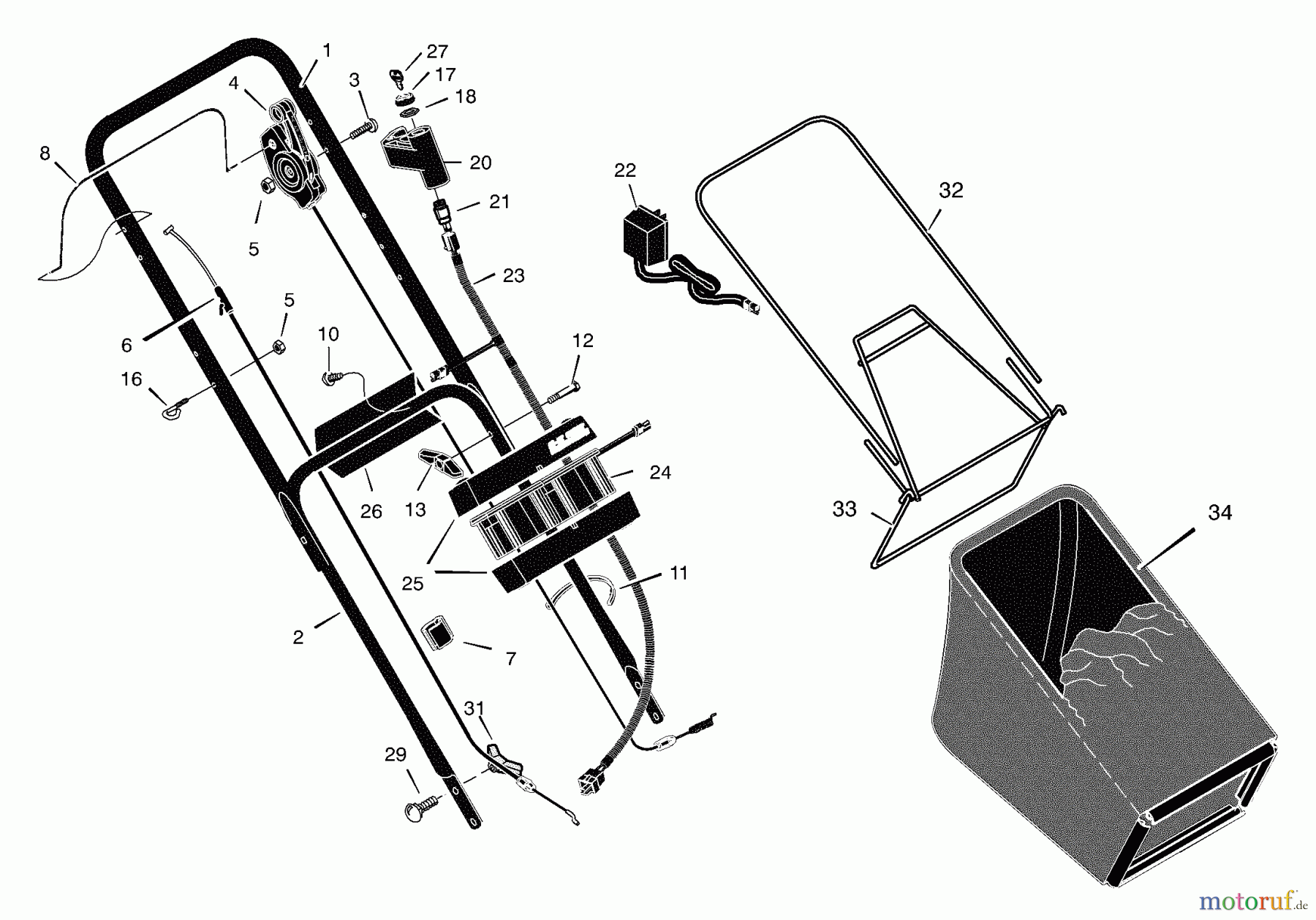

Murray 228651x99A - B&S/ 22" Walk-Behind Mower (2004) (AAFES) Handle & Bag Assembly Ricambi

Handle & Bag Assembly 228651x99A - B&S/Murray 22" Walk-Behind Mower (2004) (AAFES)

Posizione	Articolo numero	Descrizione
1	BS1101557E701MA	HANDLE UPPER 22FDTM
2	BS672907E701MA	HANDLE LOWER 22RB P,S
3	BS025X14MA	BOLZEN-HEX.25-20X2.00
4	BS1101670MA	ANTRIEBSKABEL 22FD TM F
5	BS15X116MA	MUTTER.25-20 HEX NYLOCK
6	BS1101365MA	STOPPKABEL-C 58.00 22RBFDB
7	BS1101353MA	CLIP/KLAMMER-KABEL DOPPEL .88
8	BS1101076E701MA	STOPPHEBEL 22RB FD .3
10	BS26X220MA	SCREW
11	BS071372MA	ZUGBAND-DEMONTIERBAR
12	BS002X77MA	BOLT, CRG .31-18 X 2
13	BS071294MA	FLUEGELMUTTER
16	BS071530MA	SEILFUHRUNG OBEN
17	BS091488MA	CAP, IGNITION SWITCH
18	BS091489MA	MUTTER-ZUNDSCHALTER/ZUNDSCHLOS
20	BS1101602MA	CASE IGNITION SWITCH-
21	BS776011MA	SWITCH, IGNITION & KE
22	BS671992MA	CHARGER-DOMESTIC- 120
23	BS250X110MA	KABELSTRANGVERBINDUNG
24	BS776014MA	BATTERY & HARNESS KIT
25	BS776013
26	BS671959E701MA	BATTERIEHALTER 20 FDR E
27	BS420729MA	SCHLUSSEL-2 EA.
29	BS002X81MA	BOLT-CRG.31-18X1.50
31	BS071495MA	WING NUT.31-18 NY-LOC
32	BS1101075MA	TASCHENRAHMEN MT 20RB ZIN
33	BS1101074MA	TASCHENRAHMEN MT 22RB ZIN
34	BS1101005MA	BAG-22 BLACK NO LOGO
