Murray 228650x6A - Ultra 22" Walk-Behind Mower (2001) Handle Assembly Ricambi

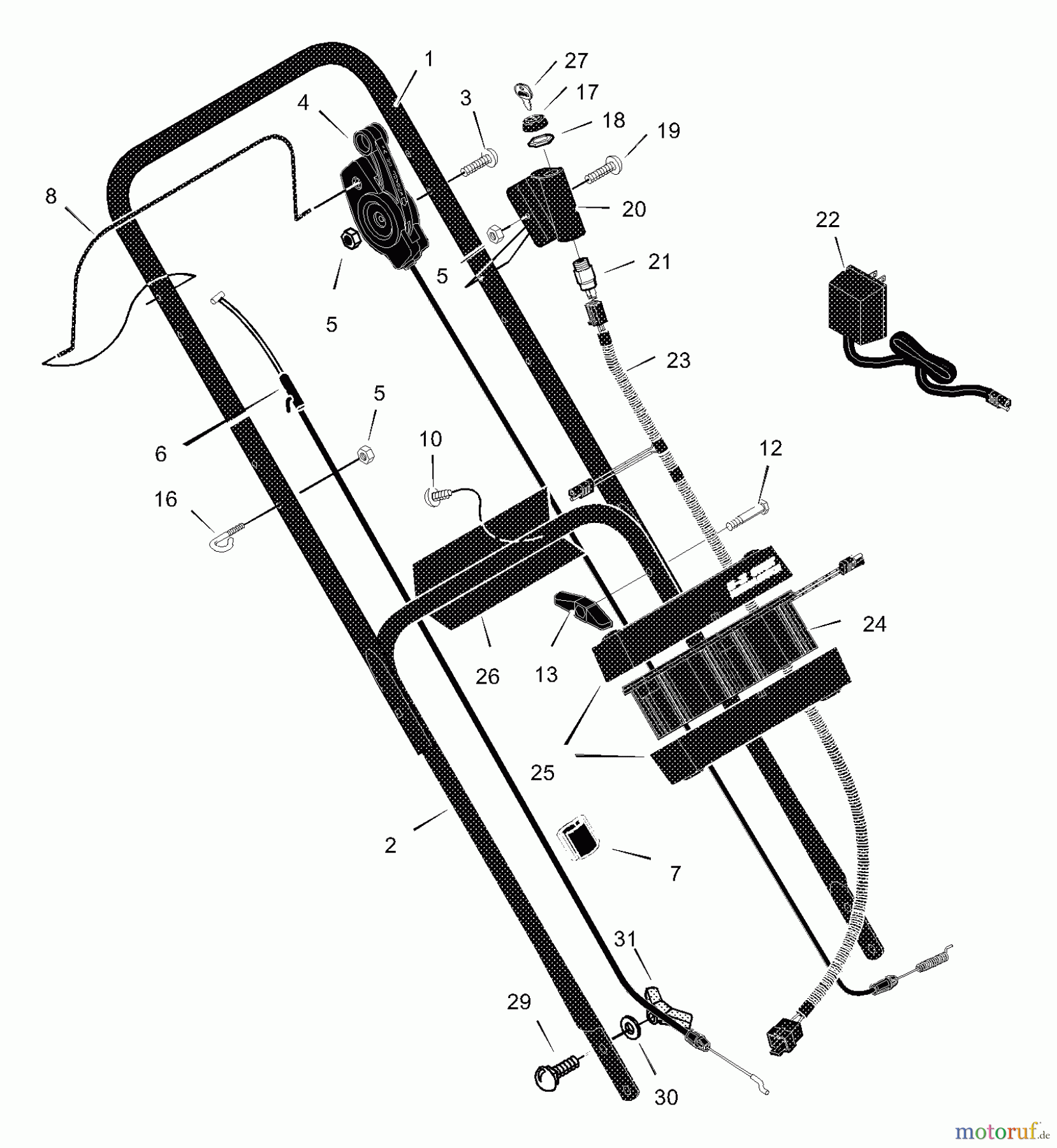

Handle Assembly 228650x6A - Murray Ultra 22" Walk-Behind Mower (2001)

Posizione	Articolo numero	Descrizione
1	BS1101099E701MA	HANDLE UPPER 22FD IND
2	BS672907E701MA	HANDLE LOWER 22RB P,S
3	BS025X14MA	BOLZEN-HEX.25-20X2.00
4	BS1101344MA	CABLE,DRIVE 22FDTM FR
5	BS15X116MA	MUTTER.25-20 HEX NYLOCK
6	BS1101365MA	STOPPKABEL-C 58.00 22RBFDB
7	BS1101353MA	CLIP/KLAMMER-KABEL DOPPEL .88
8	BS1101076E540MA	STOPPHEBEL, 22RBFD
10	BS26X220MA	SCREW
12	BS002X77MA	BOLT, CRG .31-18 X 2
13	BS071294MA	FLUEGELMUTTER
16	BS071530MA	SEILFUHRUNG OBEN
17	BS091488MA	CAP, IGNITION SWITCH
18	BS091489MA	MUTTER-ZUNDSCHALTER/ZUNDSCHLOS
19	BS025X16MA	BOLZEN-HEX.25-20X1.50 P
20	BS671916MA	CASE IGNITION SWITCH
21	BS776011MA	SWITCH, IGNITION & KE
22	BS671992MA	CHARGER-DOMESTIC- 120
23	BS250X72MA	KABELBAUM; KABELSTRANG WALKER
24	BS776014MA	BATTERY & HARNESS KIT
25	BS776013
26	BS671959-853
27	BS420729MA	SCHLUSSEL-2 EA.
29	BS002X81MA	BOLT-CRG.31-18X1.50
30	BS17X168ZMA	UNTERLEGSCHEIBE.39-1.2-.11 FL
31	BS071495MA	WING NUT.31-18 NY-LOC
