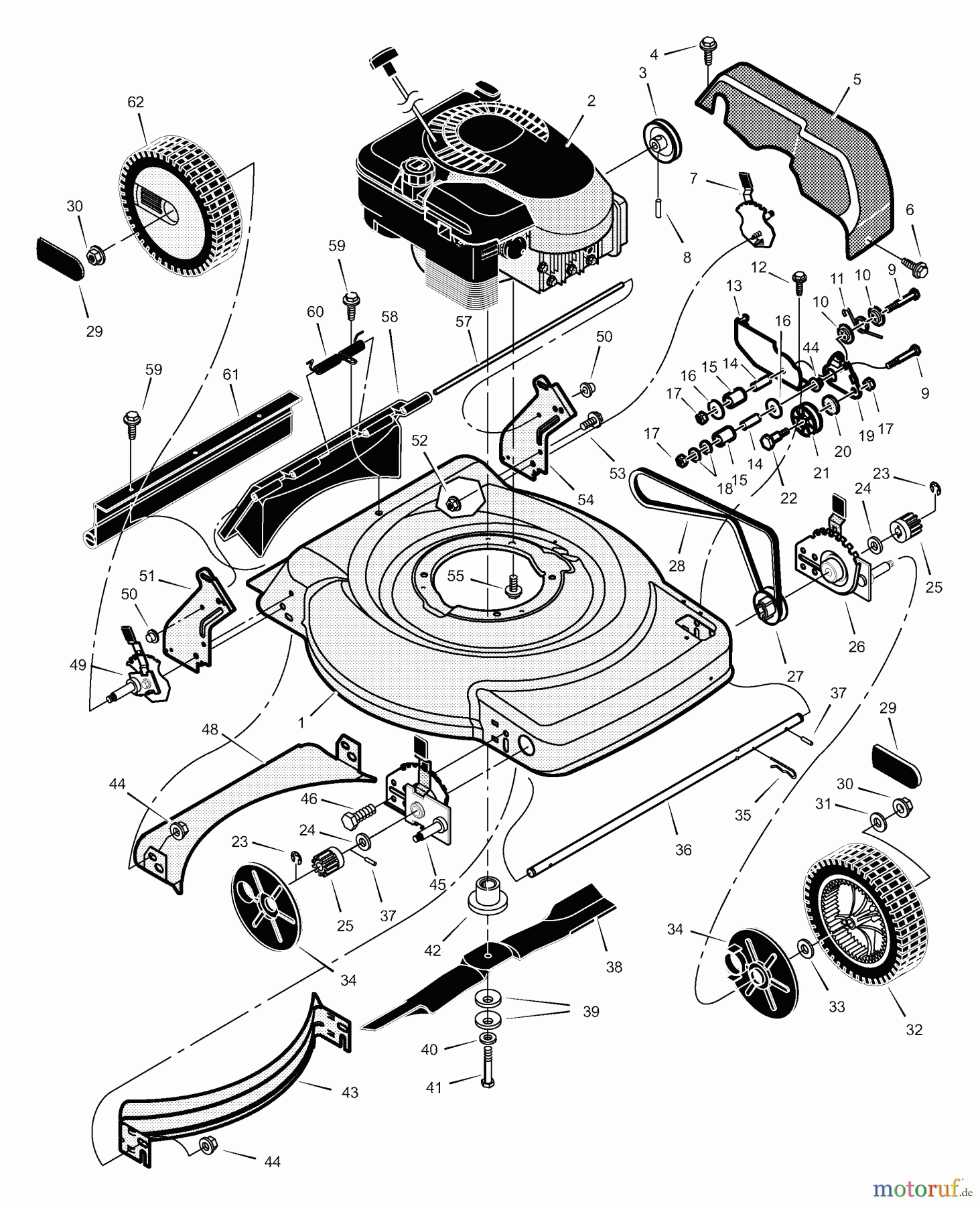

Mower Housing Assembly 22805x31A - Scotts 22" Walk-Behind Mower (2000) (Home Depot)

Murray Rasenmäher 22805x31A - Scotts 22
PosizioneArticolo numeroDescrizione
1 BS7501003
2 BSEingangswelle UE 600
3 BS071434MAPULLEY-ENG PTO 22RD
4 BS26X256MASCREW, TAP #10 1.25L
5 BS672922MACOVER-BELT 22RB FDR
6 BS26X279MASCREW-THREAD FORMING
7 BS672605MAHGT ADJ-7 2022RB- 8''
8 BS032X64MAPIN-SPRING.188D-1.0L
9 BS01X120MABOLT-HEX.31-18X2.00 Z
10 BS071789MASPACER IDLER ARM FDR
11 BS166X45MATORSIONSFEDER 22 FD
12 BS26X217MAGEWINDESCHRAUBE .25 .625 LG
13 BS1101240ZMAHALTERUNG-LEITRAD STUTZE 22
14 BS071793MALAGER B/S LEITRAD FD
15 BS672754MAPULLEY, BACKSIDE IDLE
16 BS017X45MAWASHER,FLAT .33 1. 16
17 BS015X43MANUT .31-18 ST OVERLOC
18 BS17X102MAUNTERLEGSCHEIBE-MAHER
19 BS1101121ZMAARM-PIVOT ZAPFEN 22FD MIT T
20 BS071788MADISTANZTUCK-LEITRAD FDR
21 BS071779MAIDLER -V- 21FDR
22 BS009X50MAANSATZBOLZEN .32-18X.499D
23 BS011X16MARING, E .500D - .042T
24 BS17X186MAWASHER.50.99.03 FLAT
25 BS071792MAZAHNRADGETRIEBE/RITZEL 21RB FD
26 BS1101079MAHOHENVERSTELLER-7 22RB- 8"FD
27 BS071791MARIEMENSCHEIBE-ACHSE 21RB FD
28 BS37X105MABELT
29 BS043615MAHUBCAP 8X2 BAR GRAY
30 BS015X84MAMUTTER, CENTERLOCK .38-
31 BS17X169MAUNTERLEGSCHEIBE.377-1-.03 FLT
32 Murray 8X2.00 WHL BAR DR D-GBS071133MA8X2.00 WHL BAR DR D-G
33 BS17X120MAUNTERLEGSCHEIBE.51-1.5 16G FL
34 BS071780MASTAUBABDECKUNG 21RB FD 8X2
35 BS0031X9MAHAARNADEL/HAARSTIFT .38D-.080
36 BS672508MAAXLE-22SDFD
37 BS043629MAPIN, DRIVE .177X.750
38 BS1101120E701MAEINZELMESSER; EINZELBLATT
39 BS17X137MAWASHER.39-2.2 11G FL
40 BS17X124MAWASHER.40.81 16G FLT
41 BS01X153MABOLT,HEX.37-24X3.00PH
42 BS672503MAKLINGENADAPTER 7/8X2.3
43 BS672915E701MABAFFLE-22RB FRONT .05
44 BS015X68MAMUTTER.38-16 FLANSCHARRETIERUN
45 BS1101028MAHOHENVERSTELLER-7 22RB- 8"FD
46 BS001X85MASECHSKANTBOLZEN.38-16X0.75 Z
48 BS672916E701MABAFFLE-22RB REAR .05
49 BS672604MAHGT ADJ-7 2022RB- 8''
50 BS028X49MANUT- PUSH
51 BS1101238E701MAHALTERUNG GRIFF STUTZE 2022RB
52 BS015X79MANUT.31-18 FLANGELOCK
53 BS001X45MABOLT-HEX.31-18X0.62 Z
54 BS1101127E700
55 BS0025X6MASCREW, TRI .38-16 X
57 BS215X21MASTANGE.25DX17.50 PCH ZIN
58 BS1101070MADOOR-ASSY 22RB BLACK
59 BS26X245MASCHRAUBE-#10X.5 B W/WAS
60 BS166X44MATORSIONSFEDER 20 RB
61 BS1101105MASCHUTZ HINTEN 22RB 08-WH
62 BS071132MA8X2.00 RADSTANGE/HOLM D-GR
-- BSF-000495J
