Murray 22646x6E - Ultra 22" Walk-Behind Mower (2001) Mower Housing Assembly (part 1) Ricambi

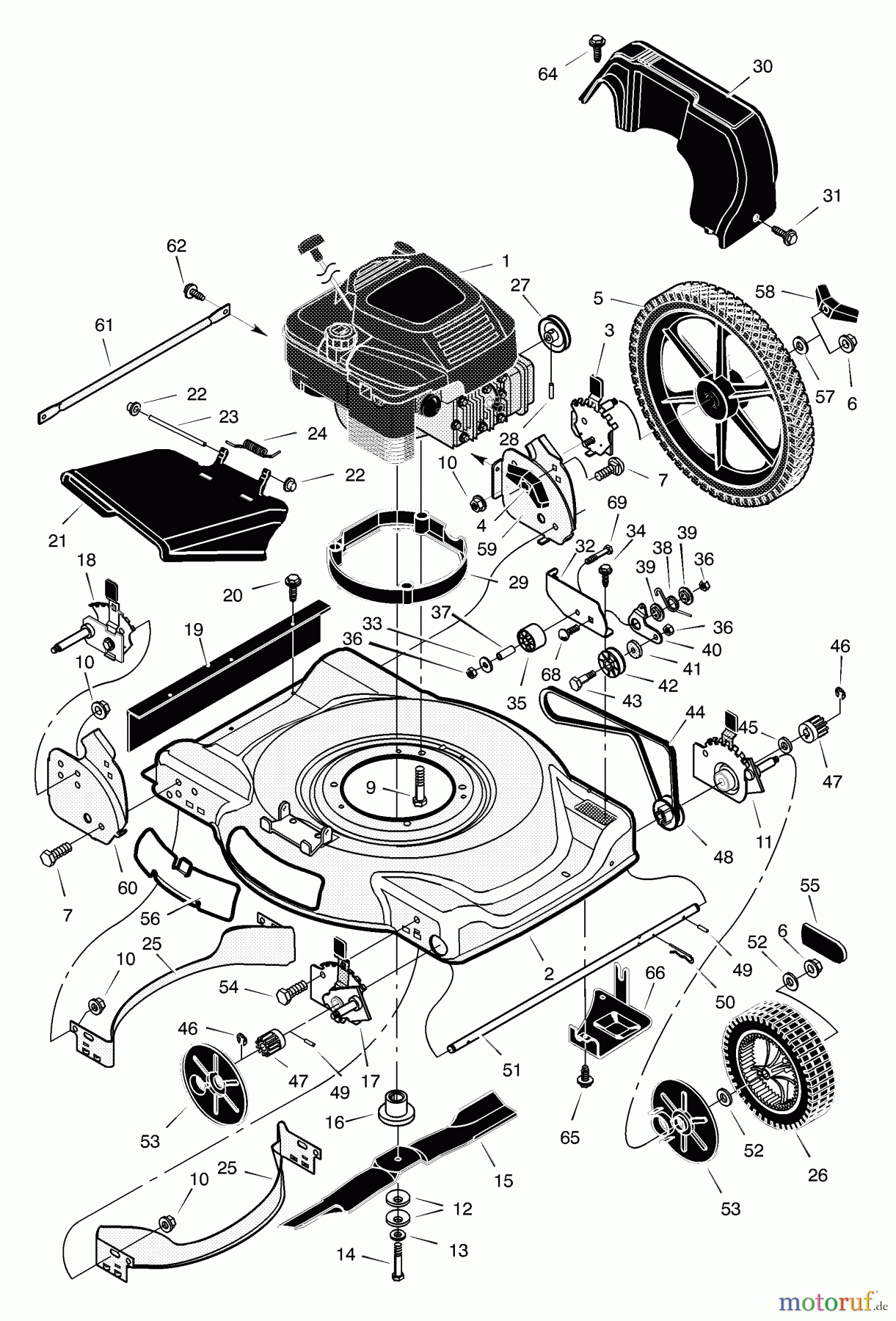

Mower Housing Assembly (part 1) 22646x6E - Murray Ultra 22" Walk-Behind Mower (2001)

Murray Rasenmäher 22646x6E - Murray Ultra 22
PosizioneArticolo numeroDescrizione
1 BSEingangswelle UE 600
2 BS776043
3 BS672645MAHGT ADJ-7 22SD-14'' BL
4 BS071495MAWING NUT.31-18 NY-LOC
5 BS071841MA14X2.00 WHL BAR MAG D
6 BS015X84MAMUTTER, CENTERLOCK .38-
7 BS002X81MABOLT-CRG.31-18X1.50
9 BS025X11MASCHRAUBE- MOTORGESTELL
10 BS015X68MAMUTTER.38-16 FLANSCHARRETIERUN
11 BS672643MAROLLENEINSTELLUNG-7 22SD- 8"FD
12 BS17X137MAWASHER.39-2.2 11G FL
13 BS17X124MAWASHER.40.81 16G FLT
14 BS01X153MABOLT,HEX.37-24X3.00PH
15 BS1101120E701MAEINZELMESSER; EINZELBLATT
16 BS672503MAKLINGENADAPTER 7/8X2.3
17 BS672642MAHGT ADJ-7 22SD- 8'' FD
18 BS672644MAHGT ADJ-7 22SD-14'' BR
19 BS672738MAGUARD REAR 22SD 98
20 BS26X245MASCHRAUBE-#10X.5 B W/WAS
21 BS672421MASCHACHT DEFLEKTOR 22
22 BS028X42MADRUCKKAPPE.250 METALL
23 BS215X11ZMASTANGE .250 DIA X 4.00
24 BS0166X5MATORSIONSFEDER
25 BS672744E701MABAFFLE-22SD FRNT/REAR
26 Murray 8X2.00 WHL BAR DR D-GBS071133MA8X2.00 WHL BAR DR D-G
27 BS071434MAPULLEY-ENG PTO 22RD
28 BS032X64MAPIN-SPRING.188D-1.0L
29 BS672671MAENGINE BASE ASSY 22SD
30 BS1101025MARIEMENABDECKUNG 22SD FDPTO
31 BS26X279MASCREW-THREAD FORMING
32 BS1101240ZMAHALTERUNG-LEITRAD STUTZE 22
33 BS17X102MAUNTERLEGSCHEIBE-MAHER
34 BS26X263MASCREW.25-20 S-T
35 BS071778MAUMLENKROLLE HINTEN 21F
36 BS015X43MANUT .31-18 ST OVERLOC
37 BS071793MALAGER B/S LEITRAD FD
38 BS166X45MATORSIONSFEDER 22 FD
39 BS071789MASPACER IDLER ARM FDR
40 BS1101121ZMAARM-PIVOT ZAPFEN 22FD MIT T
41 BS071788MADISTANZTUCK-LEITRAD FDR
42 BS071779MAIDLER -V- 21FDR
43 BS009X50MAANSATZBOLZEN .32-18X.499D
44 BS37X100MABELT(22SD B&S)&(22RB
45 BS17X186MAWASHER.50.99.03 FLAT
46 BS011X16MARING, E .500D - .042T
47 BS071792MAZAHNRADGETRIEBE/RITZEL 21RB FD
48 BS071791MARIEMENSCHEIBE-ACHSE 21RB FD
49 BS043629MAPIN, DRIVE .177X.750
50 BS0031X9MAHAARNADEL/HAARSTIFT .38D-.080
51 BS672508MAAXLE-22SDFD
52 BS17X169MAUNTERLEGSCHEIBE.377-1-.03 FLT
53 BS071780MASTAUBABDECKUNG 21RB FD 8X2
54 BS001X85MASECHSKANTBOLZEN.38-16X0.75 Z
55 BS043615MAHUBCAP 8X2 BAR GRAY
56 BS672422ZMAMULCH PLATE 22SD 98-
57 BS017X67ZMAWASHER-FLAT.53-1.0-.0
58 BS672449MAKNOB-AXLE .38-18 NYLO
59 BS1101305E701MABRKT-HDLE SUPT 2022SD
60 BS1101304E701MABRKT-HDLE SUPT 2022SD
61 BS672728E701MABRACE ROD-22SD HW
62 BS26X263MASCREW.25-20 S-T
63 BS01X120MABOLT-HEX.31-18X2.00 Z
64 BS26X289MAGEWINDESCHRAUBE 10# 2.00 LG
65 BS26X288
66 BS1101026E701MAFREMDKORPER-/TRUMMERSCHUTZ 22S
67 BS017X45MAWASHER,FLAT .33 1. 16
68 BS002X86MASCHLOSSSCHRAUBE
69 BS001X81MABOLT-HEX.31-18X1.62 Z
-- BSF-010401L
