Murray 22635D - 22" Walk-Behind Mower (1996) Handle Assembly Ricambi

• Start
• Murray
• Rasenmäher
• 22635D - Murray 22" Walk-Behind Mower (1996)
• Handle Assembly

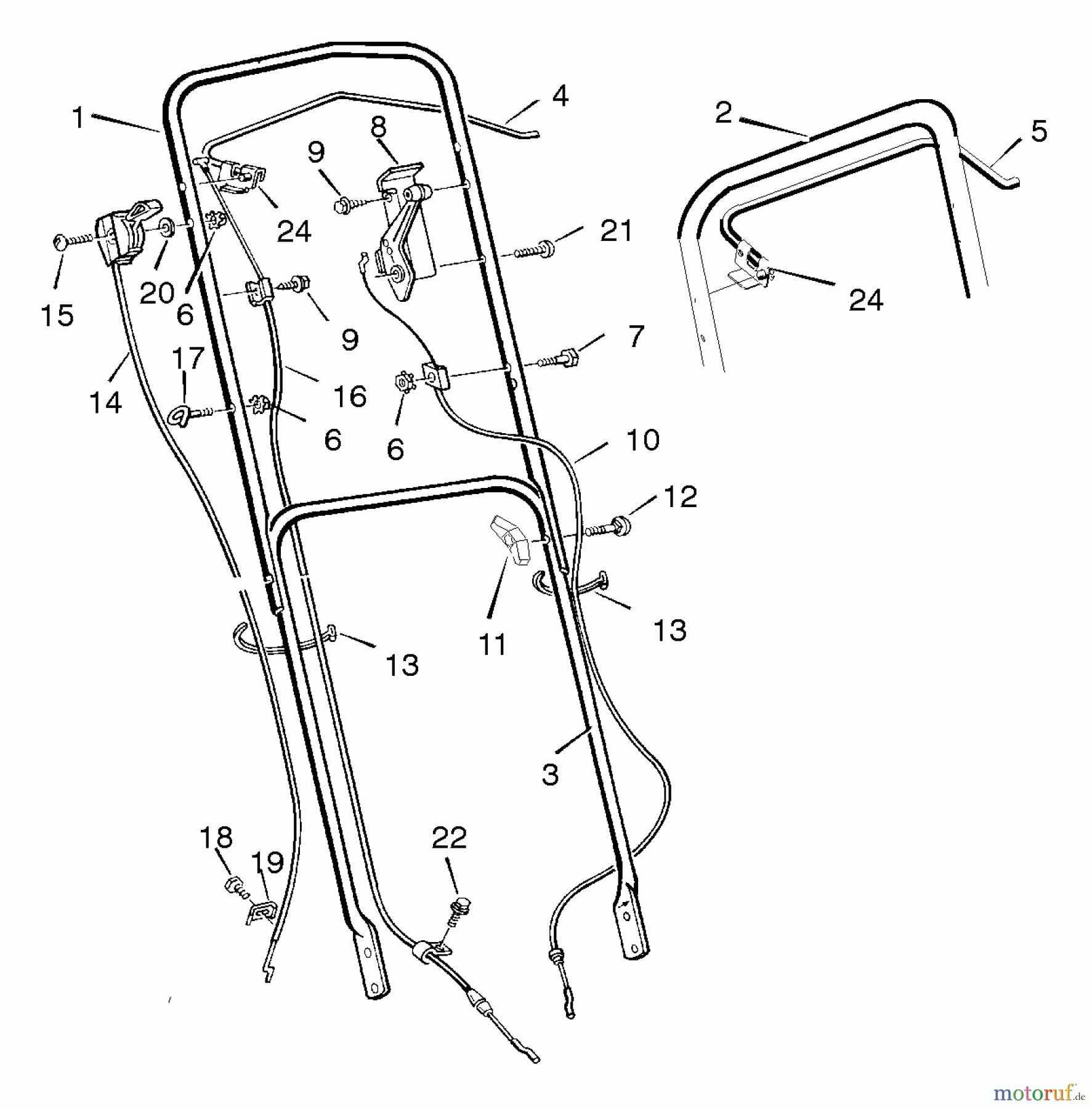

Handle Assembly 22635D - Murray 22" Walk-Behind Mower (1996)

Posizione		Articolo numero	Descrizione
1		BS071580E701MA	UPPER HDLE 21/22 -V-
--		BS71580E724
2		BS071581E701MA	HANDLE UPPER 22SD P,S
--		BS71581E724
3		BS672207E701MA	UNTERER GRIFF 22 HW
--		BS71582E724
4		BS043792MA	HEBEL STOPP 21&22V-DL
5		BS043653E701MA	STOPPHEBEL 21-22 DRUCK
6		BS15X116MA	MUTTER.25-20 HEX NYLOCK
7		BS03X151
8		BS071249
9		BS26X220MA	SCREW
10		BS071251MA	CABLE
11		BS071294MA	FLUEGELMUTTER
12		BS002X77MA	BOLT, CRG .31-18 X 2
13		BS071372MA	ZUGBAND-DEMONTIERBAR
14		BS071176MA	T-KABEL WES 22" RD B
--		BS071175
15		BS03X144MA	SCHRAUBE
16		BS043830MA	STOPPKABEL-S 48. 22FD C&S
--		BS043829MA	S-CBL-S42.75 22FD TEC
17		BS043956MA	SEILFUHRUNG
18		BS26X268MA	SCREW #10 32 NFX 62
19		BS042294MA	CLAMP
20		BS17X188
21		BS003X97 Z
22		BS26X234
24		BS1101454E701MA	BRACKET STOP LEVER
