Murray 223310x31A - Scotts 22" Walk-Behind Mower (2005) (Home Depot) Mower Housing Assembly Ricambi

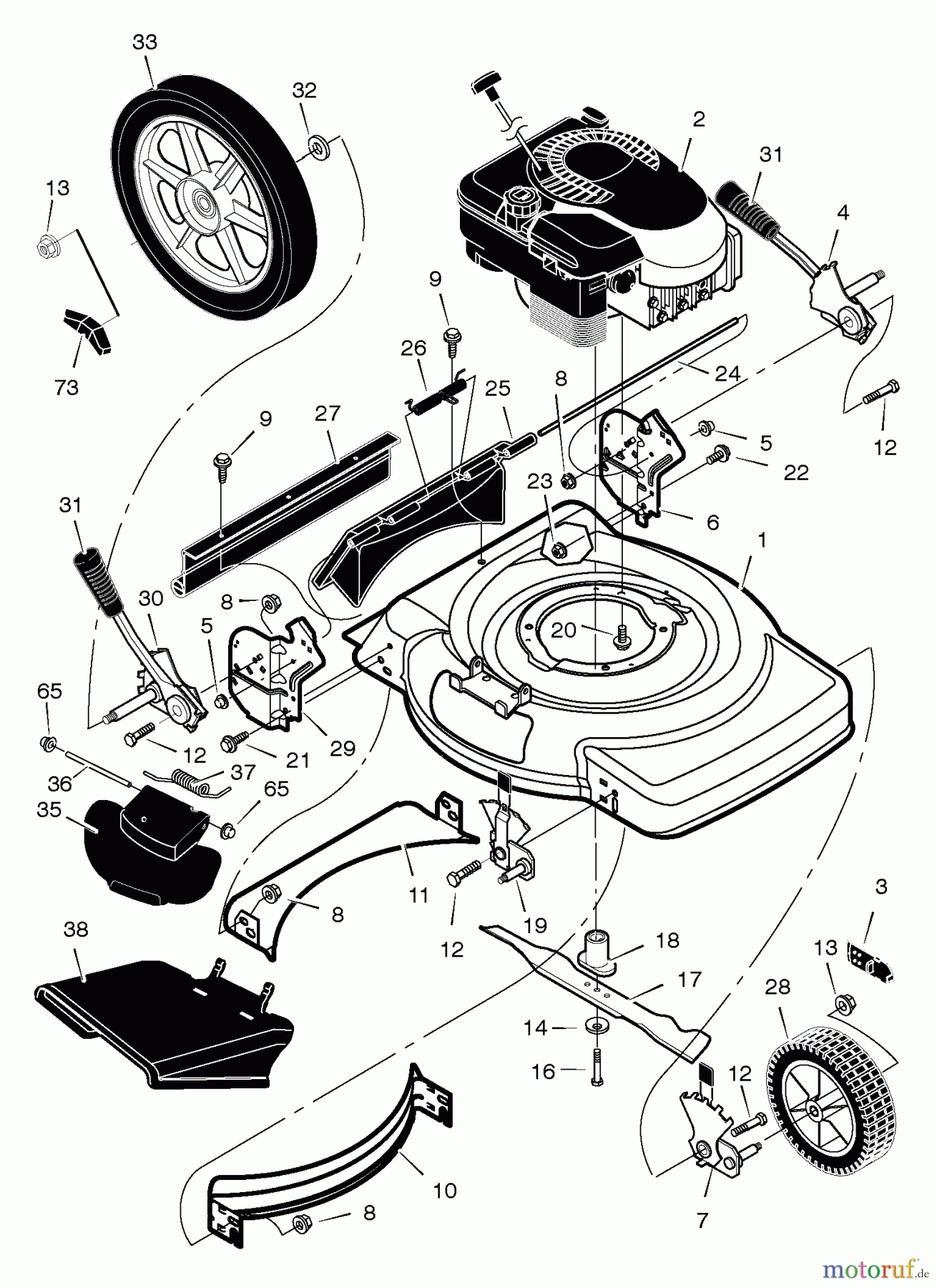

Mower Housing Assembly 223310x31A - Scotts 22" Walk-Behind Mower (2005) (Home Depot)

Posizione	Articolo numero	Descrizione
1	BS7501004MA
2	BS	Eingangswelle UE 600
3	BS043615MA	HUBCAP 8X2 BAR GRAY
4	BS1102143
5	BS028X49MA	NUT- PUSH
6	BS1102123E700
7	BS1102139MA	HOHENVERSTELLER-92022RB-8"F
8	BS015X68MA	MUTTER.38-16 FLANSCHARRETIERUN
9	BS26X245MA	SCHRAUBE-#10X.5 B W/WAS
10	BS672915E701MA	BAFFLE-22RB FRONT .05
11	BS672916E701MA	BAFFLE-22RB REAR .05
12	BS017X91MA	WASHER,FLAT .54.81
13	BS015X84MA	MUTTER, CENTERLOCK .38-
14	BS1101989MA	UNTERLEGSCHEIBE.39X1.18X.12 BE
16	BS01X153MA	BOLT,HEX.37-24X3.00PH
17	BS1101823E701MA	SINGLE BLADE - 110182
18	BS1101824MA	ADAPTER-MESSER 2NIB 2.
19	BS1102138MA	HOHENVERSTELLER-9 2022RB- 8"F
20	BS0025X6MA	SCREW, TRI .38-16 X
21	BS01X108MA	BOLT-HEX.37-16X1.25 Z
22	BS001X45MA	BOLT-HEX.31-18X0.62 Z
23	BS015X79MA	NUT.31-18 FLANGELOCK
24	BS215X21MA	STANGE.25DX17.50 PCH ZIN
25	BS1101070MA	DOOR-ASSY 22RB BLACK
26	BS166X44MA	TORSIONSFEDER 20 RB
27	BS1101105MA	SCHUTZ HINTEN 22RB 08-WH
28	BS071132MA	8X2.00 RADSTANGE/HOLM D-GR
29	BS1102122E700
30	BS1002142
31	BS071543MA	GRIFF-HOHENVERSTELLER-9 HW ROT
32	BS017X91MA	WASHER,FLAT .54.81
33	BS1102159MA	12X2.00 RADHOLM MAG D
35	BS1101098MA	MULCH ABDECKUNG 22RB SCHWARZ
36	BS215X19ZMA	STANGE.250 DIA X 5.55
37	BS166X38MA	TORSIONSFEDER
38	BS1101097MA	CHUTE DEFLECTOR
39	BS028X42MA	DRUCKKAPPE.250 METALL
73	BS672449MA	KNOB-AXLE .38-18 NYLO
--	BSF-050430L
