Murray 222210x24B - B&S/ 22" Walk-Behind Mower (2005) (Meijer) Mower Housing Assembly Ricambi

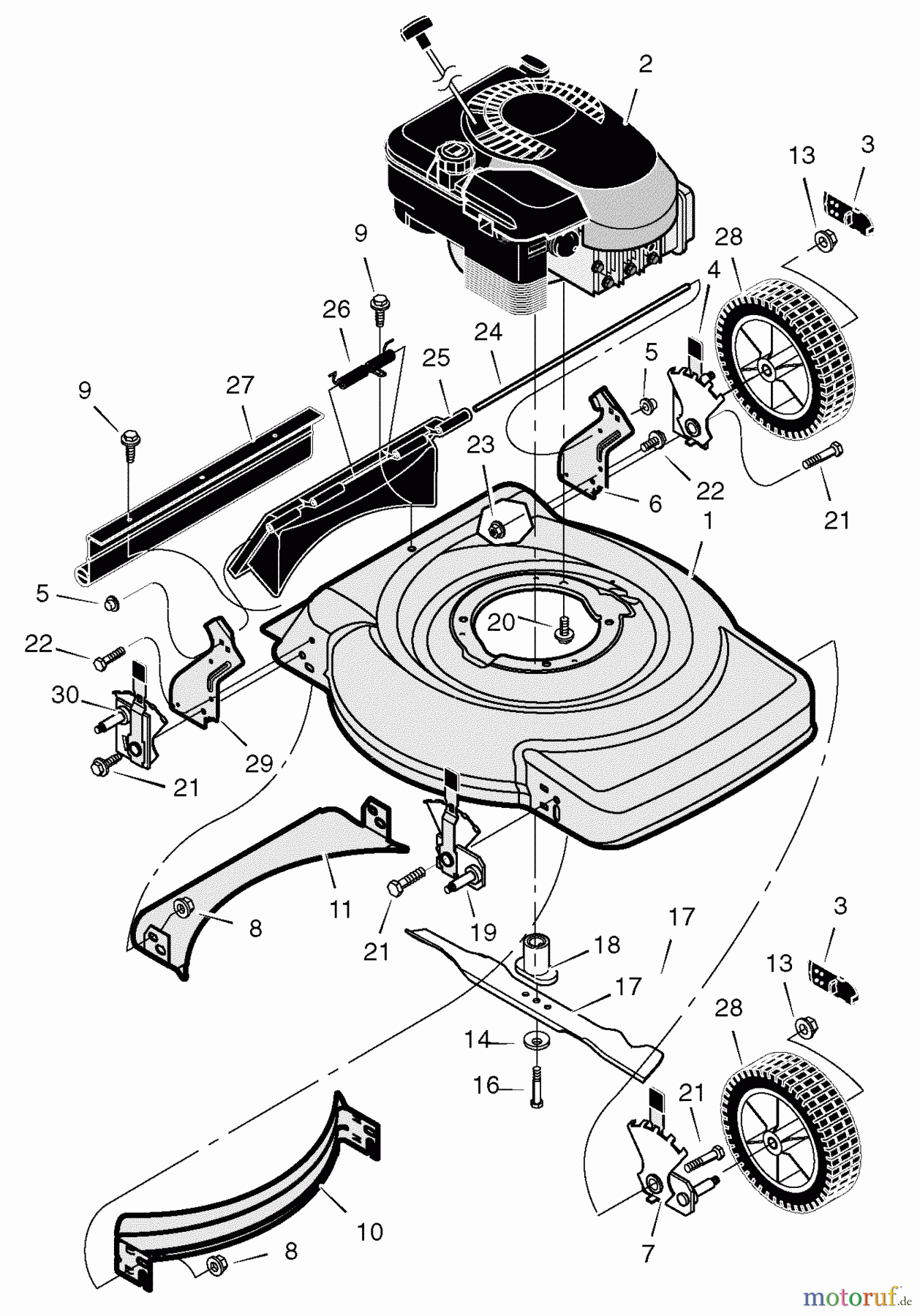

Mower Housing Assembly 222210x24B - B&S/Murray 22" Walk-Behind Mower (2005) (Meijer)

Murray Rasenmäher 222210x24B - B&S/Murray 22
PosizioneArticolo numeroDescrizione
1 BS7501001
2 BSEingangswelle UE 600
3 BS043615MAHUBCAP 8X2 BAR GRAY
4 BS1102201
5 BS028X49MANUT- PUSH
6 BS1101239E701MAHALTERUNG GRIFF STUTZE 2022RB
7 BS1102105
8 BS015X68MAMUTTER.38-16 FLANSCHARRETIERUN
9 BS26X245MASCHRAUBE-#10X.5 B W/WAS
10 BS1102244E700
11 BS672916E701MABAFFLE-22RB REAR .05
13 BS015X84MAMUTTER, CENTERLOCK .38-
14 BS1101989MAUNTERLEGSCHEIBE.39X1.18X.12 BE
16 BS01X153MABOLT,HEX.37-24X3.00PH
17 BS1101823E701MASINGLE BLADE - 110182
18 BS1101824MAADAPTER-MESSER 2NIB 2.
19 BS1102104
20 BS0025X6MASCREW, TRI .38-16 X
21 BS01X108MABOLT-HEX.37-16X1.25 Z
22 BS001X45MABOLT-HEX.31-18X0.62 Z
23 BS015X79MANUT.31-18 FLANGELOCK
24 BS215X21MASTANGE.25DX17.50 PCH ZIN
25 BS1101070MADOOR-ASSY 22RB BLACK
26 BS166X44MATORSIONSFEDER 20 RB
27 BS1101105MASCHUTZ HINTEN 22RB 08-WH
28 BS672060MA8X1.75 WHL DIAMOND D-
29 BS1101238E701MAHALTERUNG GRIFF STUTZE 2022RB
30 BS1102200
-- BSF-050431L
