Murray 218910x43F - Yard King 21" Walk-Behind Mower (2004) Housing & Drive System Ricambi

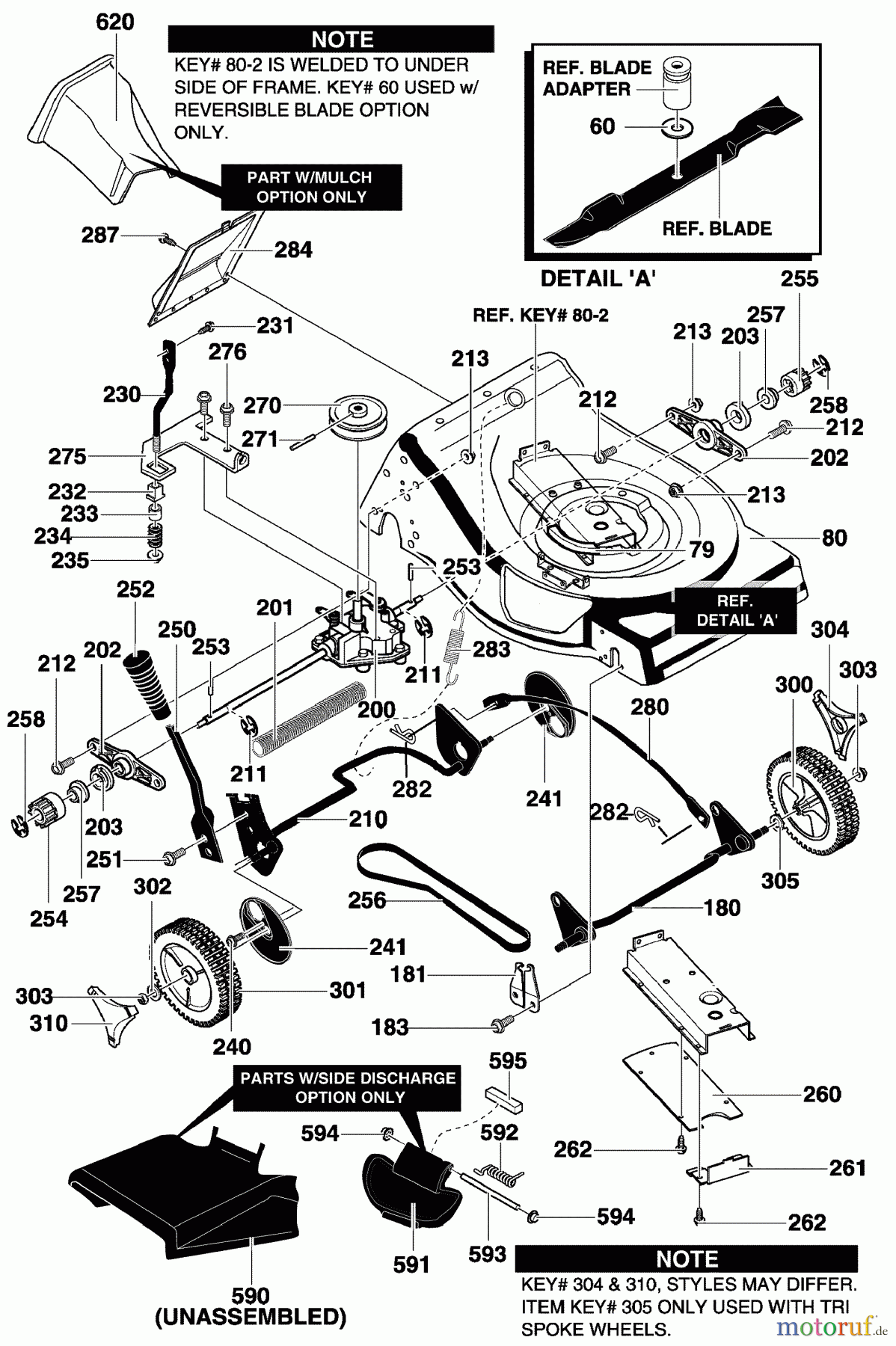

Housing & Drive System 218910x43F - Yard King 21" Walk-Behind Mower (2004)

Posizione	Articolo numero	Descrizione
60	BS71470
79	BS712012
80	BS071762E201
180	BS71152
181	BS672279MA	BUSHING-FRT HSG 1PC 2
183	BS26X221MA	SCREW-.25 X.50 SF TP
200	BS672270MA	TRANSMIS T-TORQ
201	BS043649MA	ACHSSCHUTZ
202	BS071411MA	ACHSHALTER/STUTZACHSE BB -FOR.
203	BS043788MA	BEARING-LIFTER
210	BS672277
211	BS011X16MA	RING, E .500D - .042T
212	BS001X45MA	BOLT-HEX.31-18X0.62 Z
213	BS015X74
230	BS071481ZMA	STANGE-T/M ADJ
231	BS26X217MA	GEWINDESCHRAUBE .25 .625 LG
232	BS071480MA	BUCHSE-FEDERBOCK
233	BS043844MA	DISTANZSTUCK 16" MAG RAD
234	BS164X27MA	SPRING-COMPRESSION
235	BS015X88MA	NUT,CENTERLOCK Z .3
240	BS26X221
241	BS43616
250	BS672278MA	LEVER,SPRING HGT ADJ
251	BS26X263MA	SCREW.25-20 S-T
252	BS071297MA	GRIP-HGT ADJUSTERS
253	BS43629
254	BS671904MA	PINION GEAR 21RB TT R
255	BS671903MA	PINION GEAR 21RB TT L
256	BS672271MA	BELT
257	BS17X186MA	WASHER.50.99.03 FLAT
258	BS011X16
260	BS43770
261	BS71239
262	BS26X259MA	SCHRAUBE-#10X.5 AB W/WAS
270	BS672269MA	EINGANGS-RIEMENSCHEIBE
271	BS97129MA	SPANNSTIFT .188X.75
275	BS672819ZMA	BRKT-TRANSMISSION CAB
276	BS710264MA	SCREW.25-20X.5 USE 00
280	BS43721
282	BS0031X9MA	HAARNADEL/HAARSTIFT .38D-.080
283	BS711459MA	FEDER,EXT. 7.12X.90
284	BS71246
287	BS26X263
300	BS672802AMA	8X2.00 WHL T-BAR-MOD
301	BS672440MA	9X2.00 WHL T-BAR DR D
302	BS017X91MA	WASHER,FLAT .54.81
303	BS015X84MA	MUTTER, CENTERLOCK .38-
304	BS672445MA	HUB CAP
305	BS710258	REGLERFEDER
310	BS672805MA	HUBCAP T-BAR LG-RIM D
590	BS071770MA	SCHACHT DEFLEKTOR-21RB
591	BS71769
592	BS166X38MA	TORSIONSFEDER
593	BS215X16ZMA	DREHSTAB
594	BS710285MA	DRUCKKAPPE
595	BS712012
620	BS71250
