Murray 20705x6A - Ultra 20" Walk-Behind Mower (1997) Mower Housing Assembly Ricambi

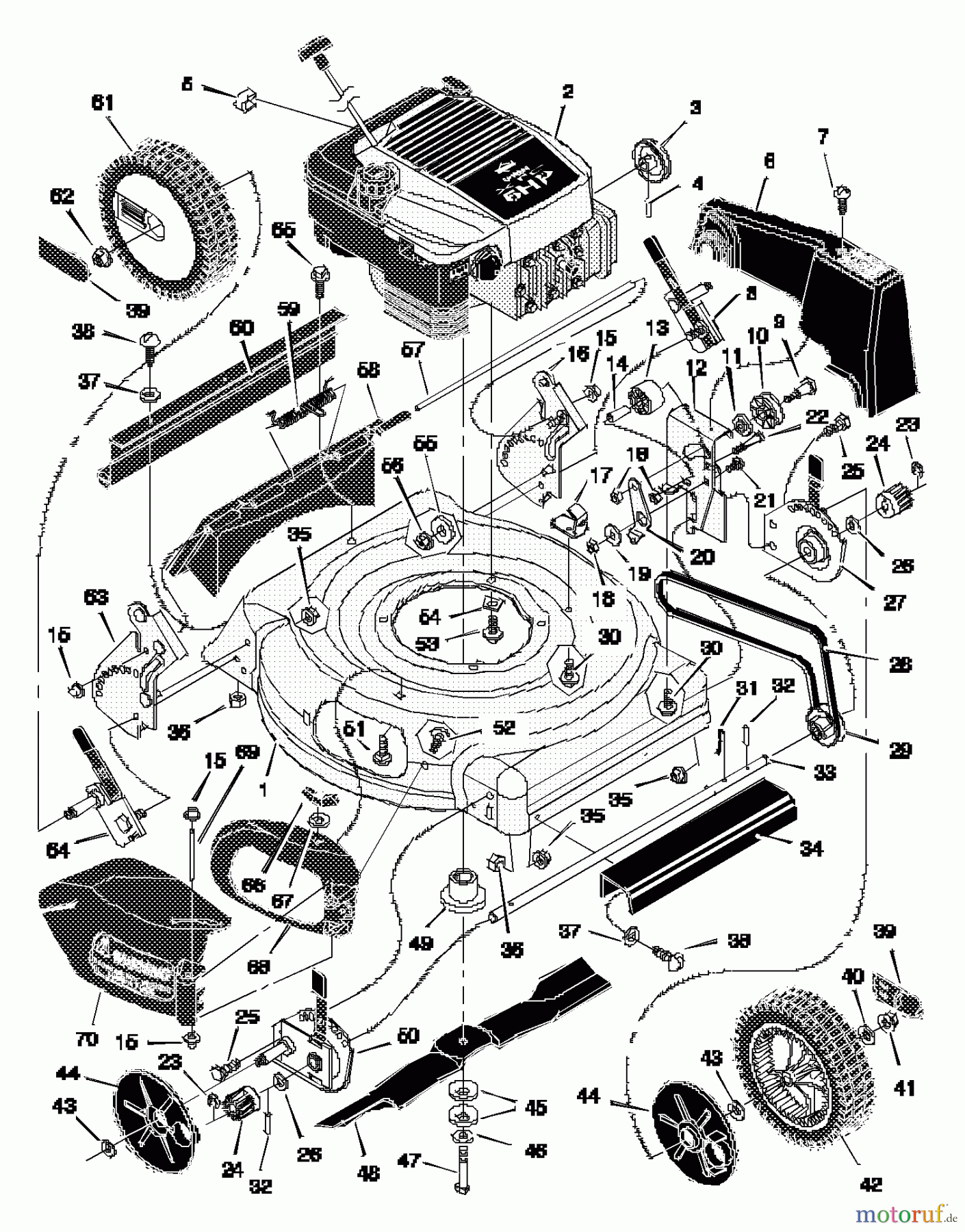

Mower Housing Assembly 20705x6A - Murray Ultra 20" Walk-Behind Mower (1997)

Murray Rasenmäher 20705x6A - Murray Ultra 20
PosizioneArticolo numeroDescrizione
1 BS776002
2 BSEingangswelle UE 600
3 BS071434MAPULLEY-ENG PTO 22RD
4 BS032X64MAPIN-SPRING.188D-1.0L
5 BS042189MAKLEMME-SEILSTOPP
6 BS672001MARIEMENABDECKUNG ASY 20RB B
7 BS26X279MASCREW-THREAD FORMING
8 BS671975MAHGT ADJ 20RB LH REAR
9 BS009X50MAANSATZBOLZEN .32-18X.499D
10 BS071779MAIDLER -V- 21FDR
11 BS071788MADISTANZTUCK-LEITRAD FDR
12 BS671935
13 BS071778MAUMLENKROLLE HINTEN 21F
14 BS071793MALAGER B/S LEITRAD FD
15 BS028X42MADRUCKKAPPE.250 METALL
16 BS671943
17 BS671934
18 BS015X43MANUT .31-18 ST OVERLOC
19 BS071789MASPACER IDLER ARM FDR
20 BS671936
21 BS002X53MABOLT,CRG .31-18 X 0.
22 BS001X81MABOLT-HEX.31-18X1.62 Z
23 BS011X16MARING, E .500D - .042T
24 BS071792MAZAHNRADGETRIEBE/RITZEL 21RB FD
25 BS001X85MASECHSKANTBOLZEN.38-16X0.75 Z
26 BS17X186MAWASHER.50.99.03 FLAT
27 BS672603MAHGT ADJ-7 20RB- 8'' FD
28 BS037X91
29 BS071791MARIEMENSCHEIBE-ACHSE 21RB FD
30 BS26X263MASCREW.25-20 S-T
31 BS0031X9MAHAARNADEL/HAARSTIFT .38D-.080
32 BS043629MAPIN, DRIVE .177X.750
33 BS671931MAAXLE FRT DR 20 RB
34 BS671948MAACHSVERKLEIDUNG
35 BS015X68MAMUTTER.38-16 FLANSCHARRETIERUN
36 BS15X102MAMUTTER HEX 10-24 NYLON
37 BS017X38MAUNTERLEGSCHEIBE.26.75 16G FLT
38 BS004X21MASCREW,MCH 10-24X.625
39 BS043615MAHUBCAP 8X2 BAR GRAY
40 BS17X169MAUNTERLEGSCHEIBE.377-1-.03 FLT
41 BS015X84MAMUTTER, CENTERLOCK .38-
42 Murray 8X2.00 WHL BAR DR D-GBS071133MA8X2.00 WHL BAR DR D-G
43 BS17X120MAUNTERLEGSCHEIBE.51-1.5 16G FL
44 BS071780MASTAUBABDECKUNG 21RB FD 8X2
45 BS17X137MAWASHER.39-2.2 11G FL
46 BS17X124MAWASHER.40.81 16G FLT
47 BS17X142MAWASHER,THRUST
48 BS672763E701MAKLINGE 20X2.25 MULCH
49 BS071056MAADAPTER-BLADE 7/8X1.0
50 BS672602MAHOHENVERST. -7 20RB-8"FD R.- H
51 BS002X81MABOLT-CRG.31-18X1.50
52 BS26X221MASCREW-.25 X.50 SF TP
53 BS0025X6MASCREW, TRI .38-16 X
54 BS671989
55 BS17X146MAUNTERLEGSCHEIBE.34-1.2 11G FL
56 BS015X79MANUT.31-18 FLANGELOCK
57 BS215X17ZMASTANGE .250 DIA X 15.359
58 BS671915
59 BS166X44MATORSIONSFEDER 20 RB
60 BS671970MADEFLECTOR-REAR
61 BS672082
62 BS015X81MANUT#10-24 MCLEANLOCK
63 BS671944
64 BS671974MAHOHENVERSTELLER 20RB RECHTS HI
65 BS26X259MASCHRAUBE-#10X.5 AB W/WAS
66 BS071294MAFLUEGELMUTTER
67 BS028X64MADRUCKBUGEL .312
68 BS672158MASCHACHT ASSY 20RB SCHWARZ
69 BS215X18ZMASTANGE.250 DIA X 3.50
70 BS671927
-- BSF-97474
