Murray 536.270320 - Craftsman 30" Mid-Engine Rider (2006) (Sears) Mower Housing Ricambi

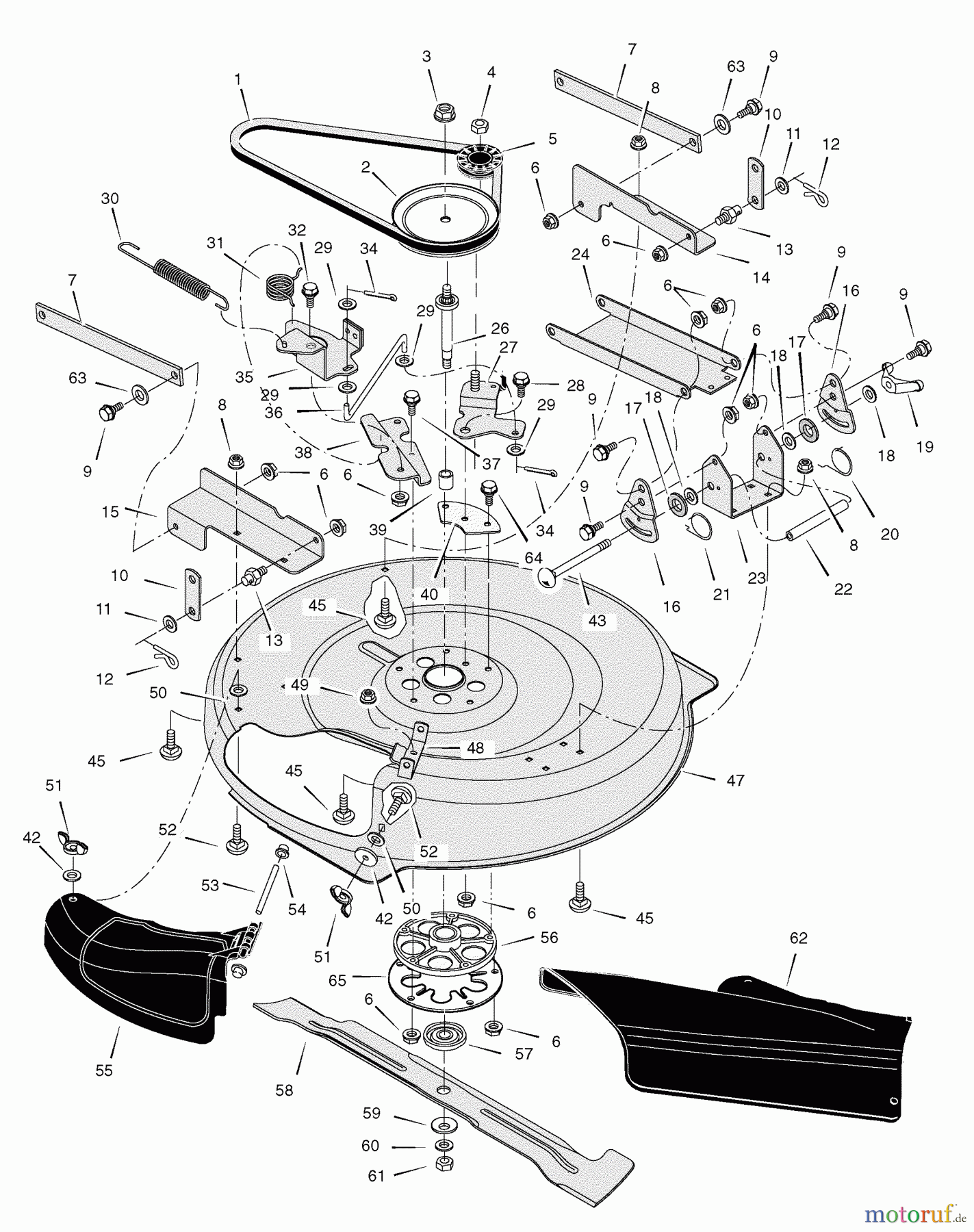

Mower Housing 536.270320 - Craftsman 30" Mid-Engine Rider (2006) (Sears)

Murray Reitermäher 536.270320 - Craftsman 30
PosizioneArticolo numeroDescrizione
1 BS37X111MARIEMEN,30" MESSER ANTRIEB
2 BS1401092MAPULLEY, 30'' INPUT
3 Murray MUTTER.56-18 RIEMENSCHEIBE ZINBS15X140MAMUTTER.56-18 RIEMENSCHEIBE ZIN
4 BS015X98MAMUTTER.38-16 FLANSCHARRETIERUN
5 BS1401252MAUMLENKROLLE - B/D
6 BS015X84MAMUTTER, CENTERLOCK .38-
7 BS1401031E701MAARM HINTEN; RUCKARM
8 BS015X79MANUT.31-18 FLANGELOCK
9 BS009X58MAANSATZBOLZEN
10 BS1401033E701MAKUISSE HEBEVORRICHTUNG
11 BS17X102MAUNTERLEGSCHEIBE-MAHER
12 BS0031X4MAPIN, HAIR .56D - .09
13 BS094067MAANSATZGEWINDESTIFT
14 BS1401047E701MAHALTER , HINTEN LINKE HALFTE
15 BS1401296E701MABRKT, DECK LIFT, RR
16 BS1401038E701MAABDECKBLECH/ EINGEPASST
17 BS094137MAFRICTION PAD
18 BS017X45MAWASHER,FLAT .33 1. 16
19 BS095004MAWINGNUT
20 BS166X43MATORSIONSFEDER LINKS
21 BS166X42MATORSIONSFEDER RECHTS
22 BS1401095MAROHR DISTANZRING
23 BS1401037E701MAHALTER AUFBAU
24 BS1401040E701MAHANGER, VORNE
26 BS1401065MAVERZAHNTE WELLE; KEILWELLE
27 BS1401258E701MAASSY - LENKZWISCHENHEBEL; UMLE
28 BS009X39MAANSATZBOLZEN .38-16 X .
29 BS017X47MAUNTERLEGSCHEIBE .34 .62
30 BS165X157MAZUGFEDER PTO
31 BS166X46MATORSIONSFEDER
32 BS009X42MABOLT,SHD .38-16X.600D
34 BS030X20MAPIN-COTTER.09D-.750L
35 BS1401185E701MASP ASM, BREMSARM
36 BS1401119MALINK, IDLER ARM Z
37 BS0025X7MAMOTORBOLZEN 3/8 X 1.25
38 BS1401052E701MAKONSOLE, BREMSFASSUNG
39 BS1401094MASPACER, JACKSHAFT
40 BS1401259ZMAPLATTE, SPANNROLLE MONTAGE
42 BS019X45MALOCKWASHER
43 BS002X94MABOLT, CARRIAGE
45 BS002X53MABOLT,CRG .31-18 X 0.
47 BS1401236E701MACUTTER HOUSING ASSY
48 BS1401106E701MASCHANIER
49 Murray NUT,CENTERLOCK Z .3BS015X88MANUT,CENTERLOCK Z .3
50 BS028X76MASCHNELLMUTTER
51 BS014X86MANUT .31-18 WINGNUT
52 BS002X74MASCHLOSSSCHRAUBE.31-18X0.75
53 BS091767ZMASTANGE DEFLEKTOR
54 BS028X23MAPUSH CAP.375
55 BS1401080MACOVER, MULCH BLACK
56 BS1401241MAJACKSHAFT HOUSING ASSY
57 BS1001035MAFLUGELADAPTER
58 BS1401079E701MASINGLE BLADE - 140107
59 Murray WASHER.62-1.7 11G - BBS17X166MAWASHER.62-1.7 11G - B
60 Murray UNTERLEGSCHEIBE.62-1.0-.18 FLBS17X165MAUNTERLEGSCHEIBE.62-1.0-.18 FL
61 Murray MUTTER.56-18 REG UNF Z-YBS15X100MAMUTTER.56-18 REG UNF Z-Y
62 BS1401081MADEFLEKTOR, SCHACHT SCHWARZ
63 BS002X74
64 BS001X84MABOLT,HEX .31-18X1.00
65 BS1001952E701MASPINDELPLATTE
