Murray 309311x92A - B&S/ 30" Rear Engine Rider (2003) (Walmart) Motion Drive Ricambi

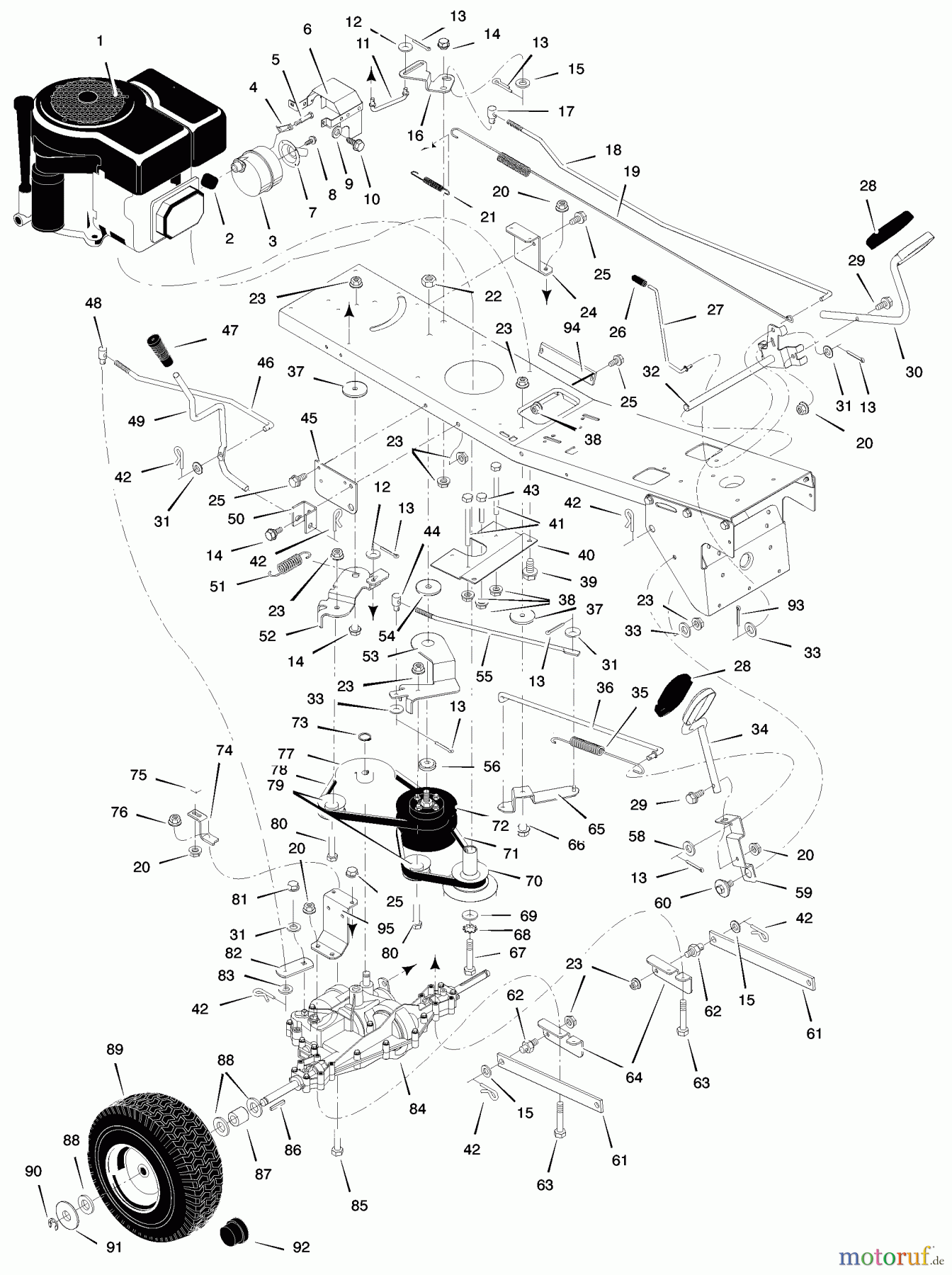

Motion Drive 309311x92A - B&S/Murray 30" Rear Engine Rider (2003) (Walmart)

Murray Reitermäher 309311x92A - B&S/Murray 30
PosizioneArticolo numeroDescrizione
1 BSEingangswelle UE 600
2 BS692236AUSPUFFDICHTUNG
3 BS091271SEMASCHALLDARMPFER 12HP B&S
4 BS092378MASCHRAUBENVERSCHLUSS 223016
5 BS01X134MABOLT-HEX.31-18X4.12 O
6 BS1401207
7 BS1401204MAABGASROHR B & S KOMPL.
8 BS26X208MAGEWINDESCHRAUBE-.375-B
9 BS018X32MAWASHER.25.48X.07 SPLI
10 BS0025X2MASCREW-TRI.25-20X .50
11 BS1401170MAHANDGRIFF HEBEL
12 BS017X45MAWASHER,FLAT .33 1. 16
13 BS030X20MAPIN-COTTER.09D-.750L
14 BS009X39MAANSATZBOLZEN .38-16 X .
15 BS17X102MAUNTERLEGSCHEIBE-MAHER
16 BS1401166 Z
17 BS092132ZMAEINSTELLMUTTER
18 BS1401165MAKUPPLUNGSGESTANGE VARIATOR
19 BS165X148MAFEDERHEBEL
20 Murray NUT,CENTERLOCK Z .3BS015X88MANUT,CENTERLOCK Z .3
21 BS165X75MASPRING,EXTENSION
22 BS15X137
23 BS015X84MAMUTTER, CENTERLOCK .38-
24 BS1401042E701MAHALTER, STUFENLOSES GETRIEBE,
25 BS26X249MASCREW-.312-18X.75
26 BS091079MAGRIP-BLACK .207 ID X
27 BS1401112MAGRIFF, FESTSTELLBREMSE
28 BS1401139
29 BS01X139MABOLT-HEX.31-18X1.25 Z
30 BS1401179E701
31 BS017X38MAUNTERLEGSCHEIBE.26.75 16G FLT
32 BS1401180E701MAC/B ZAPFEN PIVOT STANGE ASSY
33 BS017X53MAWASHER.41.82 16G FLT
34 BS1401181E701MAPEDALGESTANGE
35 BS165X158MASPRING, EXT. RETURN
36 BS1401142MAGESTAENGE
37 BS17X174ZMAWASHER.40-2.2-.11 FL
38 BS015X79MANUT.31-18 FLANGELOCK
39 BS0025X7MAMOTORBOLZEN 3/8 X 1.25
40 BS1401057E701MABLECH, RIEMENFUHRUNG
41 BS1401105MAGUIDE, BELT LONG
42 BS0031X4MAPIN, HAIR .56D - .09
43 BS1401104MAFUHRUNG ANTRIEBSRIEMEN KURZ
44 BS021920ZMAJUSTIERMUTTER
45 BS1401032E701MABRACKET, LIFT PIVOT
46 BS1401122MALINK, DRIVE
47 BS092697MAGRIP - .50 ID - BLACK
48 BS1401148ZMAEINSTELLMUTTER
49 BS1401111MASCHALTHEBEL
50 BS1401043E701MAHALTER ABDECKUNG
51 BS165X156MASPRING, DRIVE EXT VAR
52 BS1401131 Z
53 BS1401132ZMAUMLENKARM KUPPLUNG
54 BS17X210HTMADICHTSCHEIBE
55 BS1401136MAVERBINDUNG -ANTRIEB
56 BS1401124MADISTANZSTUCK,SCHULTER
58 BS017X53MAWASHER.41.82 16G FLT
59 BS1401254ZMAARM - PEDAL
60 BS009X69MAANSATZ-/SCHULTERBOLZEN
61 BS1401031E701MAARM HINTEN; RUCKARM
62 BS094067MAANSATZGEWINDESTIFT
63 BS01X155MABOLT-HEX.31-18X2.50 P
64 BS1401039E701MAHALTERUNG/KONSOLE, HINTEN HANG
65 BS1401183E701
66 BS009X15MABOLT,SHD .38-16X .499
67 BS01X140MASECHSKANTBOLZEN.43-20X1.50 Z
68 BS019X35MAWASHER.43-0.74 X.04 S
69 BS17X170MAWASHER.46.97.25 FLAT
70 BS1401158MASTAPELRIEMENSCHEIBE
71 BS37X114MABELT, PRIMARY DRIVE
72 BS1001133MAVARIATOR ASSY
73 BS0011X7MASPRENGRING/SEEGERRING.625D.035
74 BS1401051E701MAKONSOLE,DREHMOMENT REACTO
75 BS002X53MABOLT,CRG .31-18 X 0.
76 BS015X43MANUT .31-18 ST OVERLOC
77 BS1401157MARIEMENSCHEIBE, HINTERACHSE
78 BS37X115MABELT, SECONDARY
79 BS1401156MAPULLEY, IDLER
80 BS01X111MABOLT-HEX.37-16X1.50 Z
81 BS06X105MACAP SCREW 1/4-28 (AR
82 BS1401093ZMABUGEL
83 BS17X148MAUNTERLEGSCHEIBE.38 SQ 1. 16G F
84 BS915-033
85 BS01X120MABOLT-HEX.31-18X2.00 Z
86 BS056534MAVIERKANTSCHLUSSEL
87 BS1401103MASPACER, TRANSAXLE
88 BS17X160MAWASHER.76-1.2 16G FL
89 BS1401120MAHINTERRAD 15"
90 BS0011X3MARING,E .750D .050T
91 BS17X195MAUNTERLEGSCHEIBE
92 Murray HUB CAPBS094618MAHUB CAP
93 BS030X35MASPLINT.13D-.880L
94 BS1401260E701MAVERSTARKUNGSBLECH
95 BS1401268E701MABRACKET, LH - TRANSAX
