Murray 107.280341 (7800669A) - Craftsman 28" Rear Engine Rider, 12.5HP (2011) (Sears) Primary Chain Case & Smooth Clutch Group Ricambi

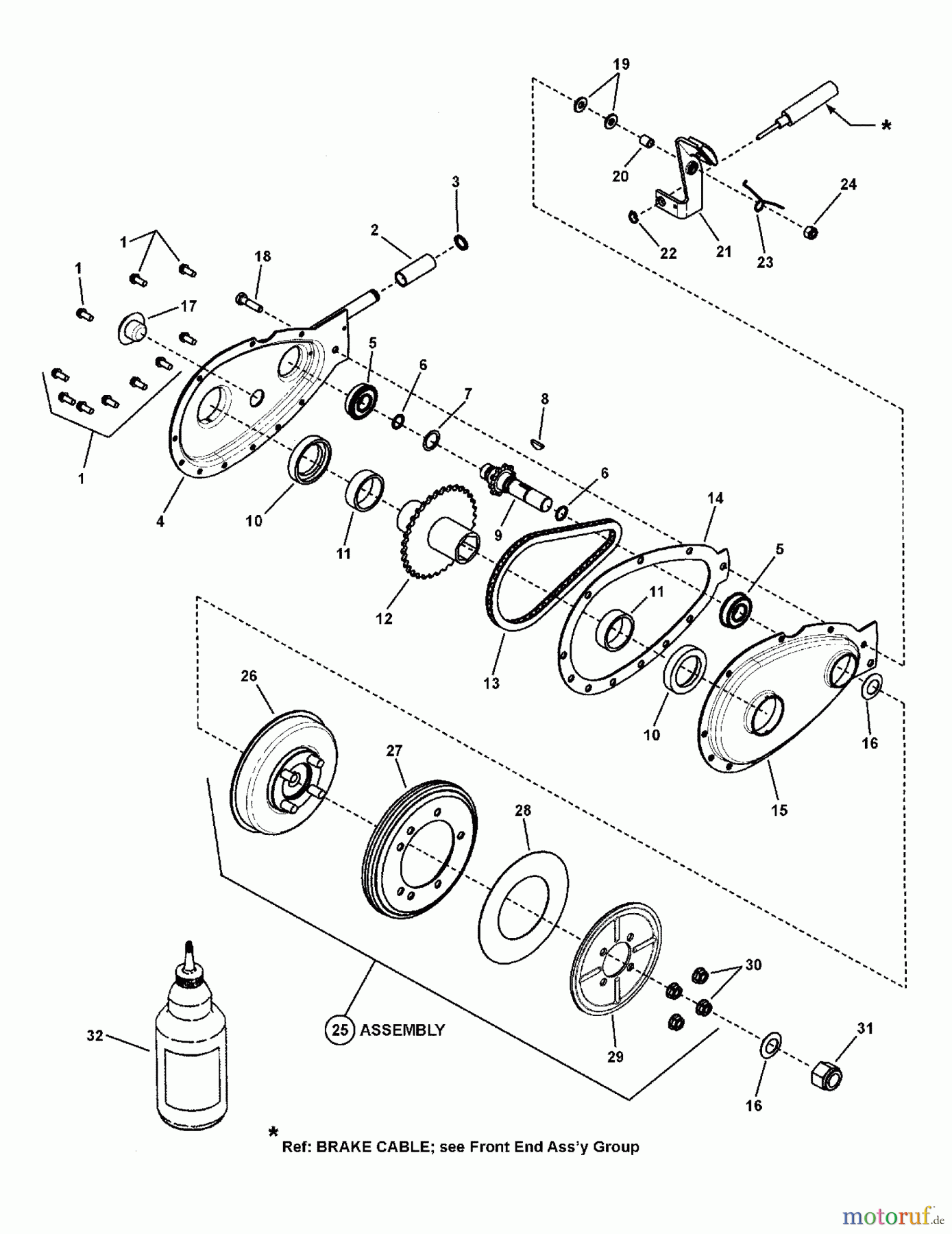

Primary Chain Case & Smooth Clutch Group 107.280341 (7800669A) - Craftsman 28" Rear Engine Rider, 12.5HP (2011) (Sears)

Murray Reitermäher 107.280341 (7800669A) - Craftsman 28
PosizioneArticolo numeroDescrizione
-- BS7052683YPPRIMARKETTENKASTEN KOMPL.
1 BS7090307YP
2 BS7022785YPROLLER
3 BS7010776YPRING, 1/2 DREHUNG
4 BS7041136YPSPROCKET COVER, RH *
5 BS7010756YPKUGELLAGER
6 BS7019260YPO-RING
7 BS7027981YPZWISCHENSCHEIBE 62X.875
8 BS7010614YPFEDERKEIL, #5
9 BS7018963YPDRIVESHAFT
10 BS7011086YPSICHERUNGSSCHEIBE, NYLON
11 BS7010942YPNADELLAGER
12 BS7040355YPHUB / SPROCKET
13 BS7010941YPKETTE
14 BS7028761YPGASKET,CHAIN CASE
15 BS7039778YPCOVER, SPROCKET, LH
16 BS7011121SMBW, .64X1.125X.028
17 BS7011024YPSTOPFEN
18 BS7091504YPSCHRAUBE, 1/4-28X1
19 BS7091294SMFW, .28X.63X.065 YZ
20 BS7072593YPSPACER, BRAKE ARM
21 BS7600134YPKIT, BRAKE & PAD
22 BS7012313SMRING, RETAINING
23 BS7072406YPSPRING, TORSION, BRAK
24 BS7090303YPHTLN, 1/4F GR5 BZ
25 BS7600136YPKIT, SMOOTH CLUTCH
26 BS7600142YPKIT, HUB & CUP
27 Murray KIT, FRICTION RINGBS7600135YPKIT, FRICTION RING
28 Murray SICHERUNGSSCHEIBEBS7014523YPSICHERUNGSSCHEIBE
29 BS7032331YPPLATE, SMOOTH CLUTCH
30 BS7092081YPHFLN, 5/16-24 BZ
31 BS7091505YPHLN, 5/8F ESNA YZ
32 BS7061017YPGREASE, SNAPPER TRAN
